Component Tests and General Diagnostics

IDLE AIR CONTROL MOTOR (STEPPER MOTOR) CHECK
Coil Resistance Check




1. Disconnect the idle air control motor connector.

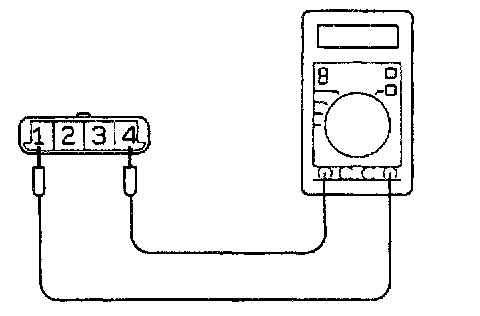

2. Measure the resistance between terminal 1 and terminal 4 of the connector at the idle air control motor side.
Standard value: 38-52 Ohms [at 20°C (63°F)]

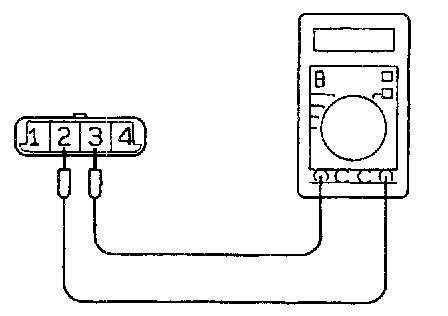

3. Measure the resistance between terminal 2 and terminal 3 of the connector at the idle air control motor side.
Standard value: 38-52 Ohms [at 20°C (68°F)].
