Power Steering Line/Hose: Service and Repair

REMOVAL

Removal Service Point
[A] Pressure Hose/Suction Hose Removal





CAUTION: A/C compressor is below the oil pump, so cover the A/C compressor with a shop towel before removing any hose.

INSTALLATION

Installation Service Point
]A[ Pressure Hose Installation

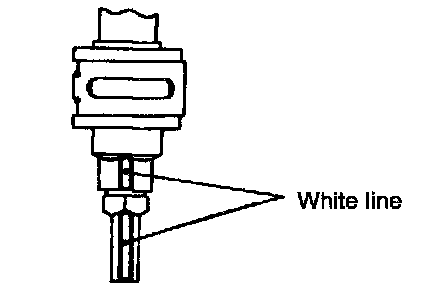

When the pressure hose is installed, align the white line on the pressure hose with the white line on the pressure tube so that together they form a straight line.
