Disassembly and Reassembly
DISASSEMBLY AND REASSEMBLY

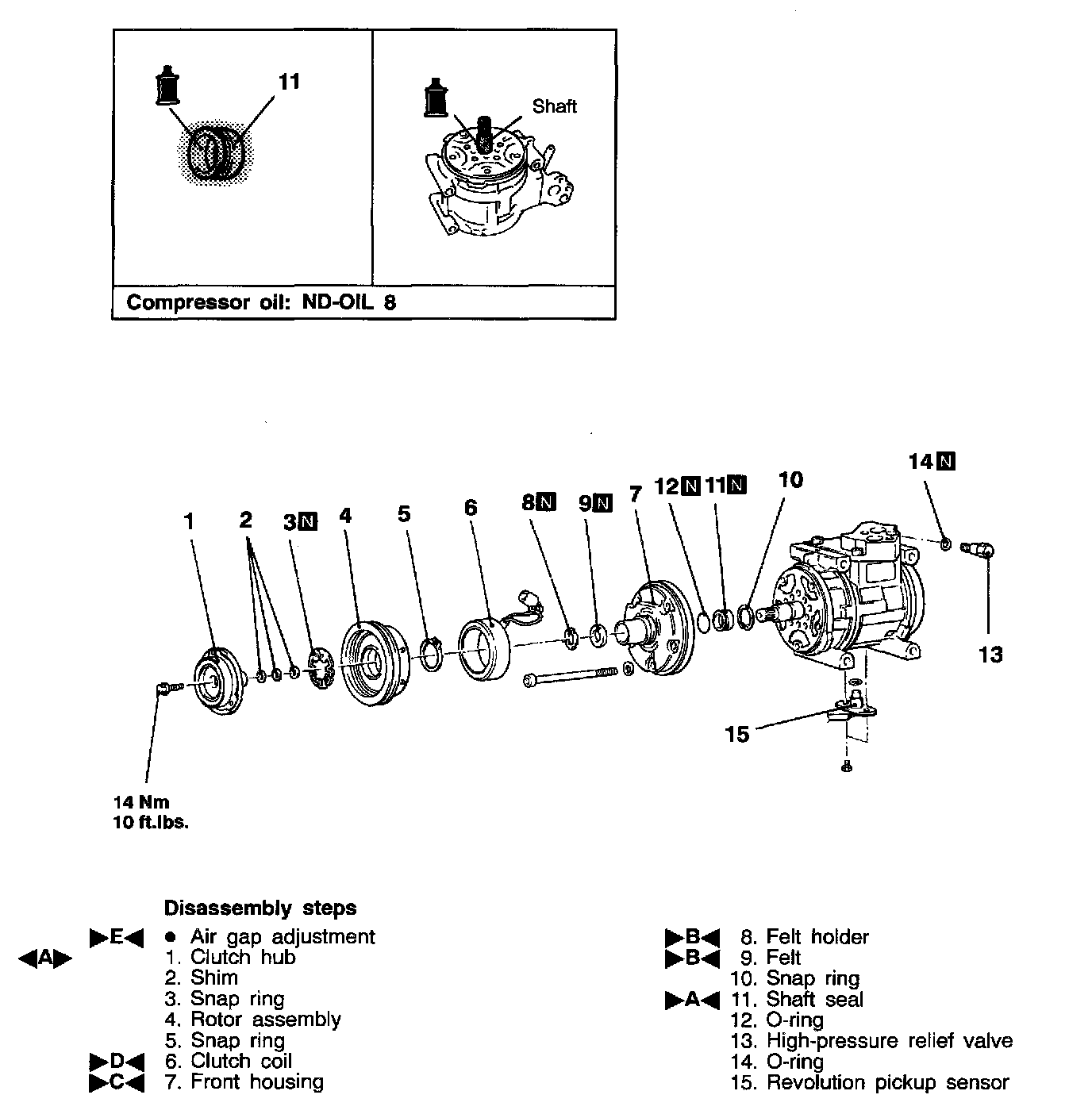

DISASSEMBLY SERVICE POINT
CLUTCH HUB REMOVAL
1. Remove the clutch hub mounting bolt.

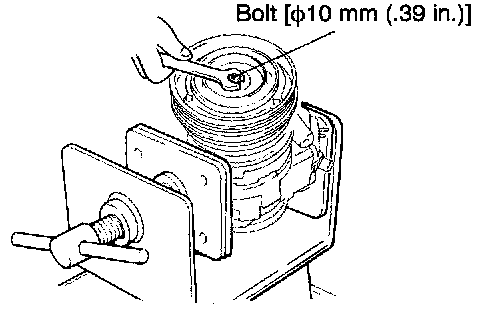

2. Tighten a 10 mm (0.39 in.) bolt into the bolt hole of the clutch hub to remove the serration assembly of the shaft and the clutch hub.
REASSEMBLY SERVICE POINTS
>A< SHAFT SEAL INSTALLATION

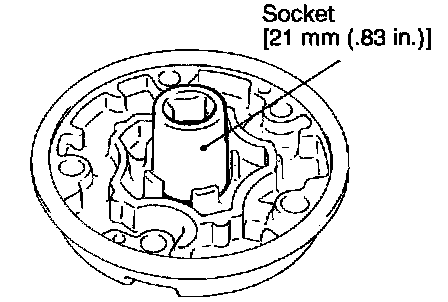

Use a 21 mm (0.83 in.) socket to install the shaft seal so that the 0-ring assembly side is facing the front housing.
>B< FELT, FELT HOLDER INSTALLATION

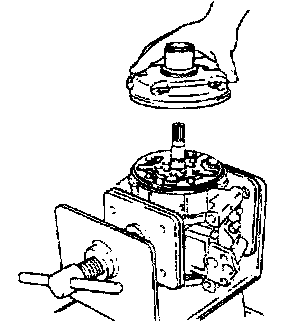

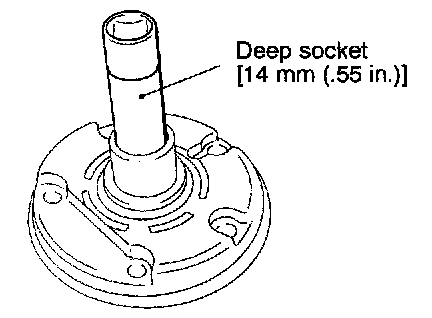

After installing the felt in the felt holder install them to the front housing using a 14 mm (0.55 in.) deep socket.
>C< FRONT HOUSING INSTALLATION
1. Apply compressor oil to the shaft. Compressor oil: ND-OIL 8
2. Install the front housing without damaging the shaft seal lip.

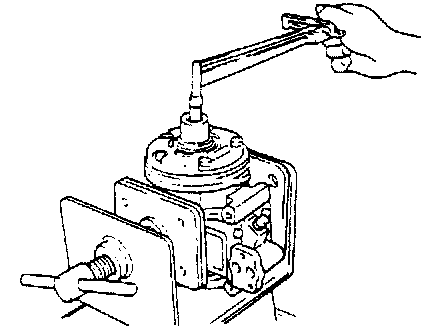

3. After installing the front housing, install the clutch hub mounting bolt to the shaft, and check that the breakaway torque is within the specified torque value.
Breakaway torque: 5 Nm (4 ft.lbs.) or less
>D< CLUTCH COIL INSTALLATION

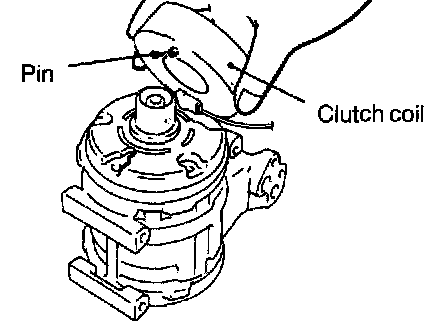

Set the clutch coil pin in the compressor housing notch, and install the clutch coil.
>E< AIR GAP ADJUSTMENT

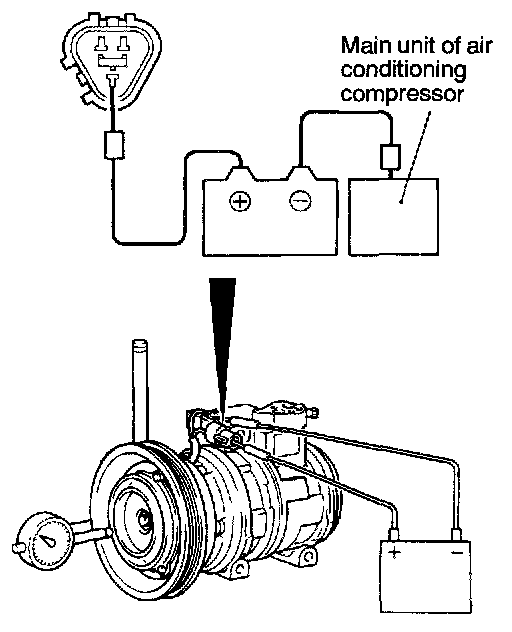

Apply battery voltage to the magnetic clutch and check that the air gap is within the standard value. If the air gap is outside the standard value, adjust with a shim.
Standard value: 0.35 - 0.65 mm (0.0138 - 0.0256 in.)
NOTE: If there is a deviation of the air gap from the standard value adjust the number of shims.
