Front Crankshaft Seal: Service and Repair

REMOVAL AND INSTALLATION

Removal Service Points

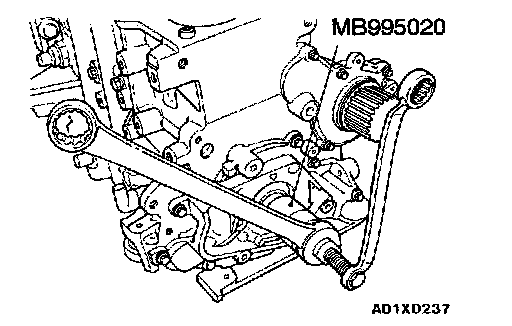

[A] Crankshaft Sprocket Removal

CAUTION: Do not nick the shaft seal surface or seal bore.

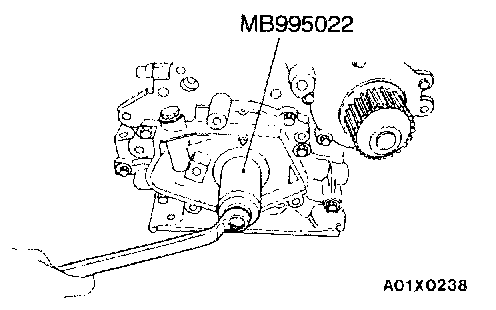

[B] Crankshaft Front Oil Seal





Use the special tool to remove the crankshaft front oil seal. Be careful not to damage the seal surface of cover.

Installation Service Points
]A[ Crankshaft Front Oil Seal Installation





Use the special tool to align the oil seal with the cover.

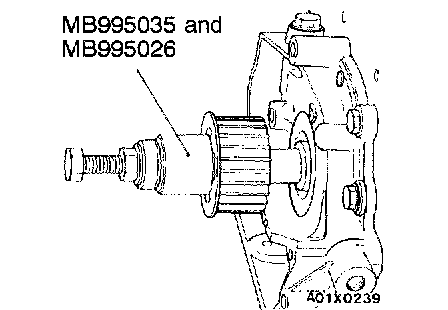

]B[ Crankshaft Sprocket Installation
