Power Steering

Power Steering Oil Pump Drive Belt Tension Adjustment

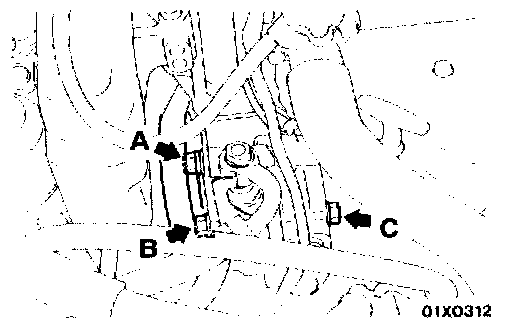

1. Loosen power steering oil pump fixing bolt (A, B. C)

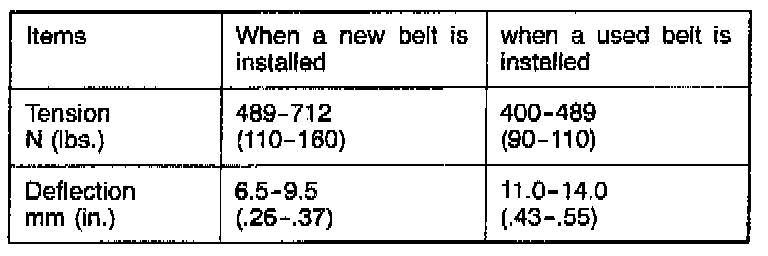

Standard value:

2. Move power steering oil pump, tension belt moderately and adjust tension.
3. Tighten the fixing bolt (A)
Tightening torque: 39 Nm (29 ft. lbs.)
4. Tighten the remaining fixing bolts (B and C)
Tightening torque: 39 Nm (29 ft. lbs.)
5. Check the belt deflection mount and readjust if necessary

CAUTION: Turn the crankshaft one full rotation or more clockwise before this check.
