Engine Control Module

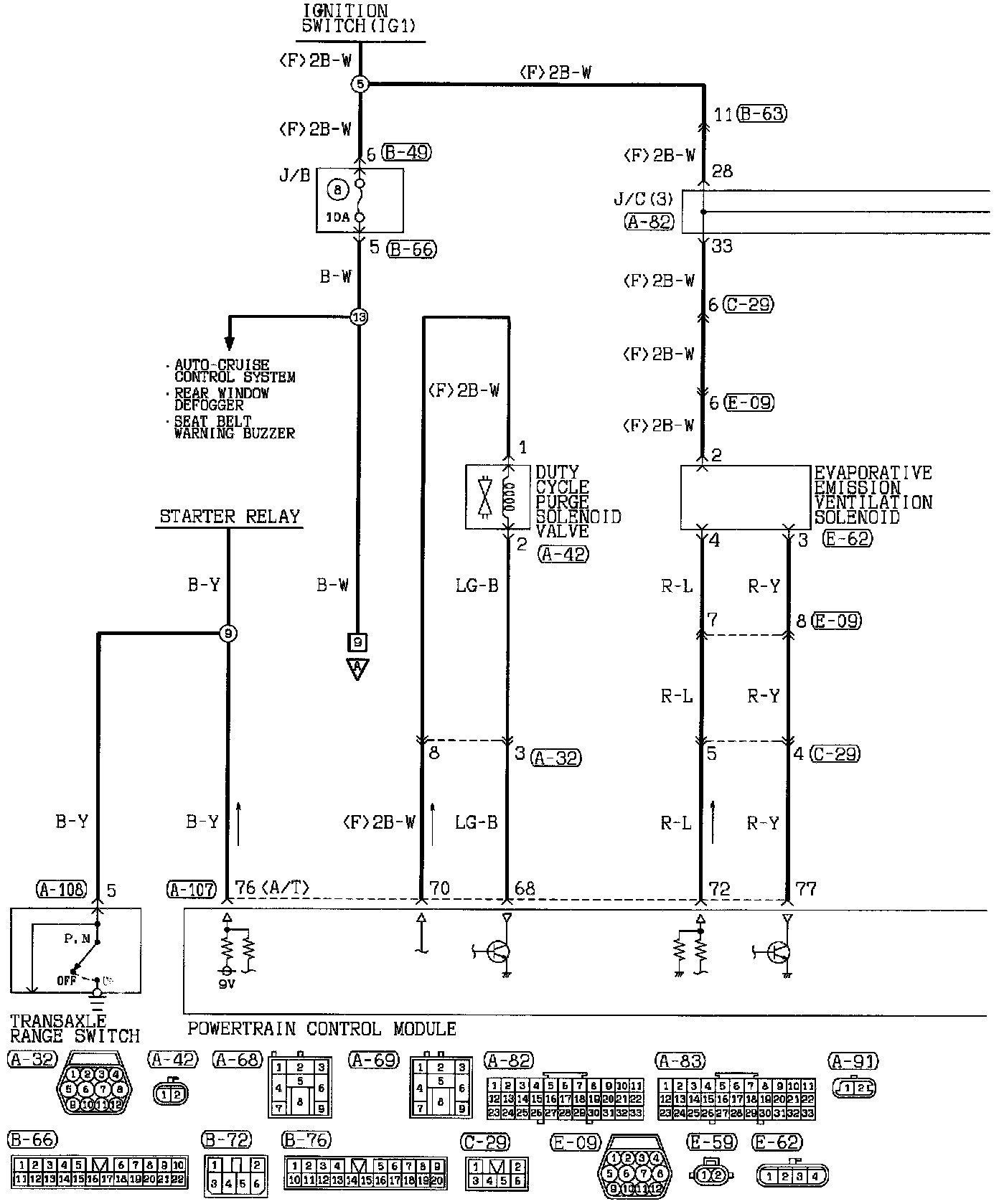

MFI System (Part 1 Of 9):

Duty Cycle Purge Solenoid Valve
Evaporative Emission Ventilation Solenoid
J/B
J/C (3)
Powertrain Control Module
Transaxle Range Switch

MFI System (Part 2 Of 9):

ASD Relay
EGR Solenoid Valve
Fuel Pump
Fuel Pump Relay
J/C (3,4)
Powertrain Control Module
- Battery Back Up

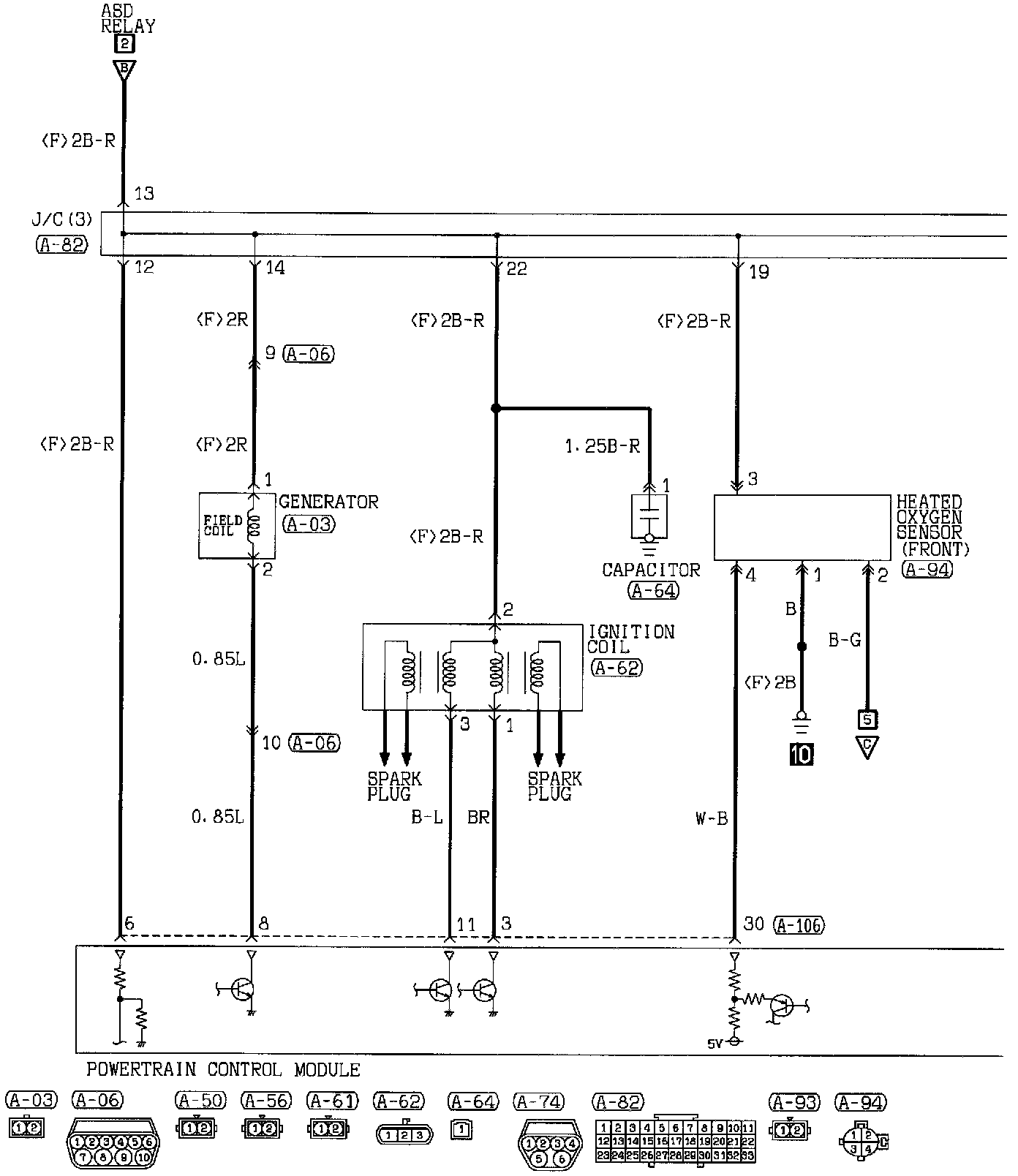

MFI System (Part 3 Of 9):

Capacitor
Generator
Heated Oxygen Sensor(Front)
Ignition Coil
J/C (3)
Powertrain Control Module

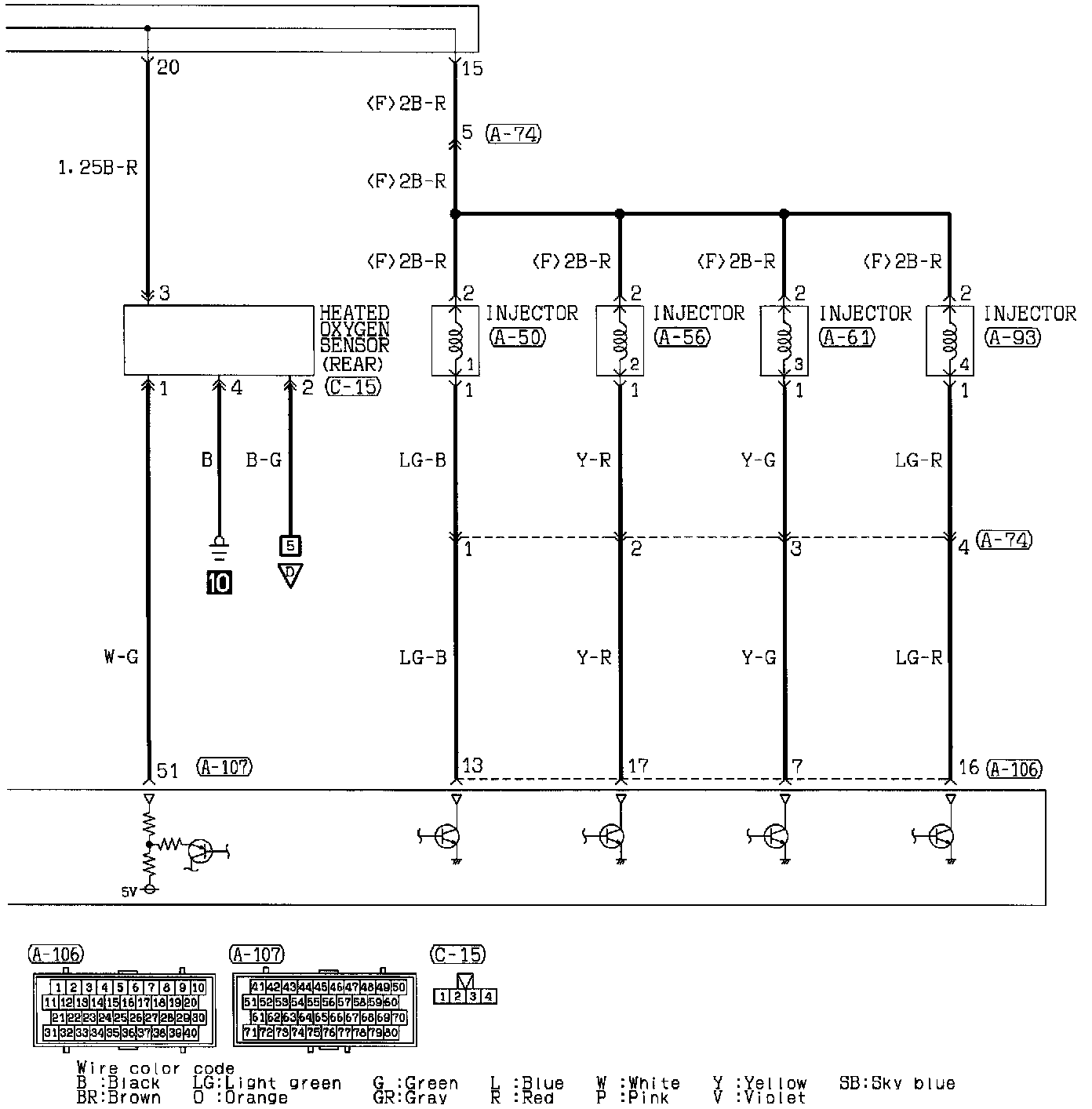

MFI System (Part 4 Of 9):

Fuel Injectors
Heated Oxygen Sensor (Rear)
J/C (3)
Powertrain Control Module

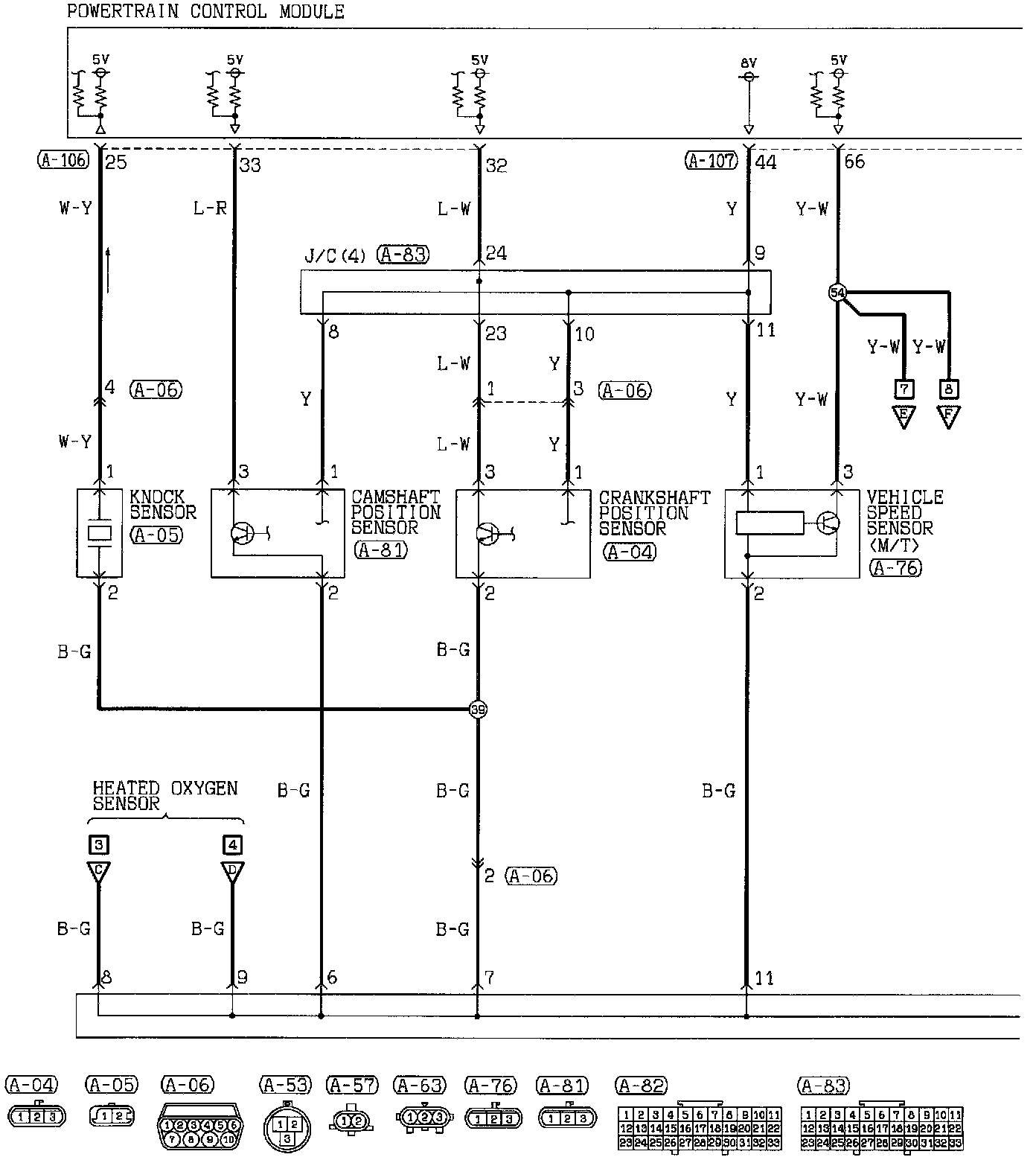

MFI System (Part 5 Of 9):

Camshaft Position Sensor
Crankshaft Position Sensor
J/C (3,4)
Knock Sensor
Powertrain Control Module
Vehicle Speed Sensor

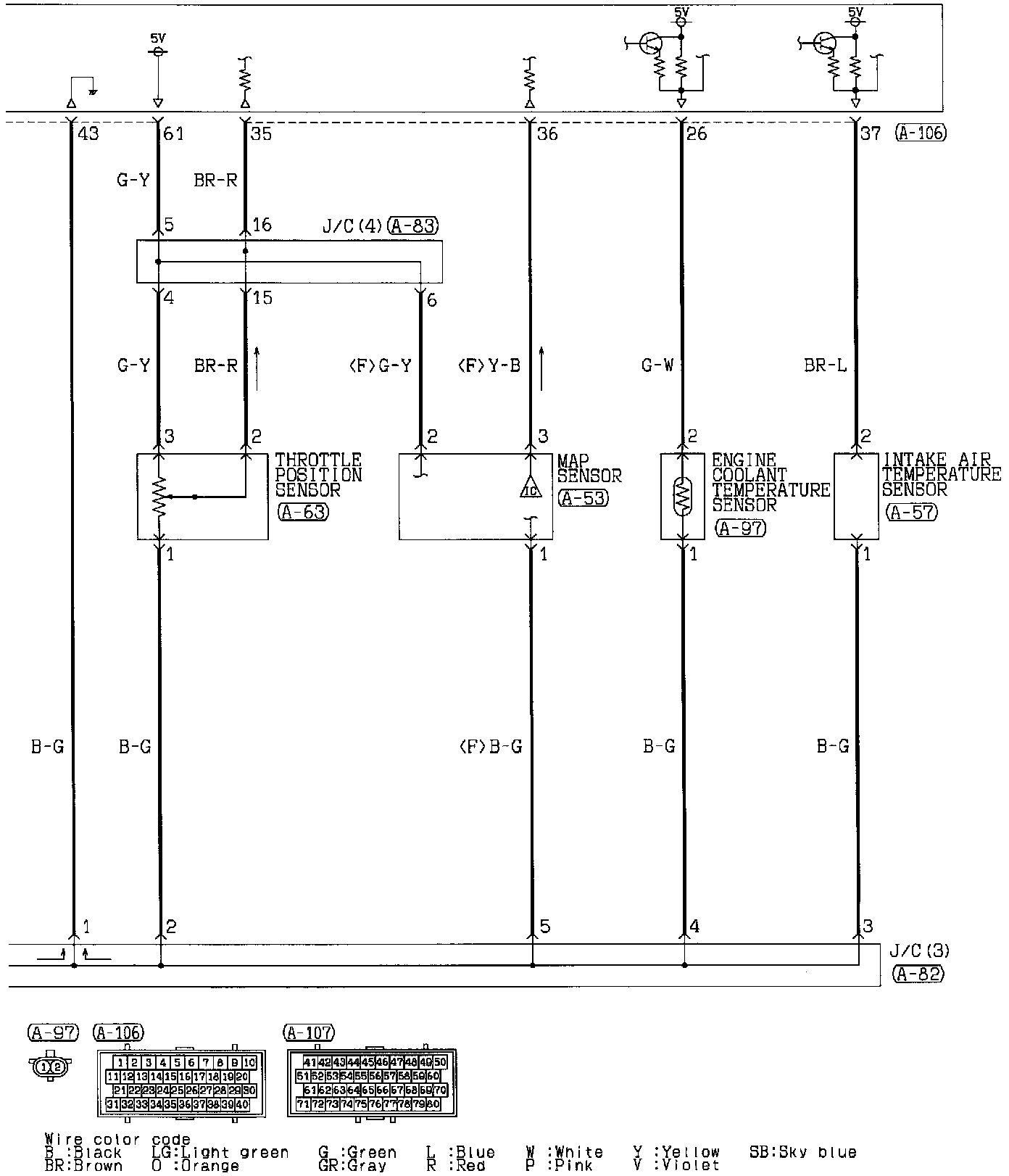

MFI System (Part 6 Of 9):

Engine Coolant Temperature Sensor
Intake Air Temperature Sensor
J/C(3,4)
MAP Sensor
Powertrain Control Module
Throttle Position Sensor

MFI System (Part 7 Of 9):

Auto Idle Speed Motor
EATX-ECM
Input Speed Sensor
J/C (4)
Output Speed Sensor
Powertrain Control Module
- Motor Actuator IC

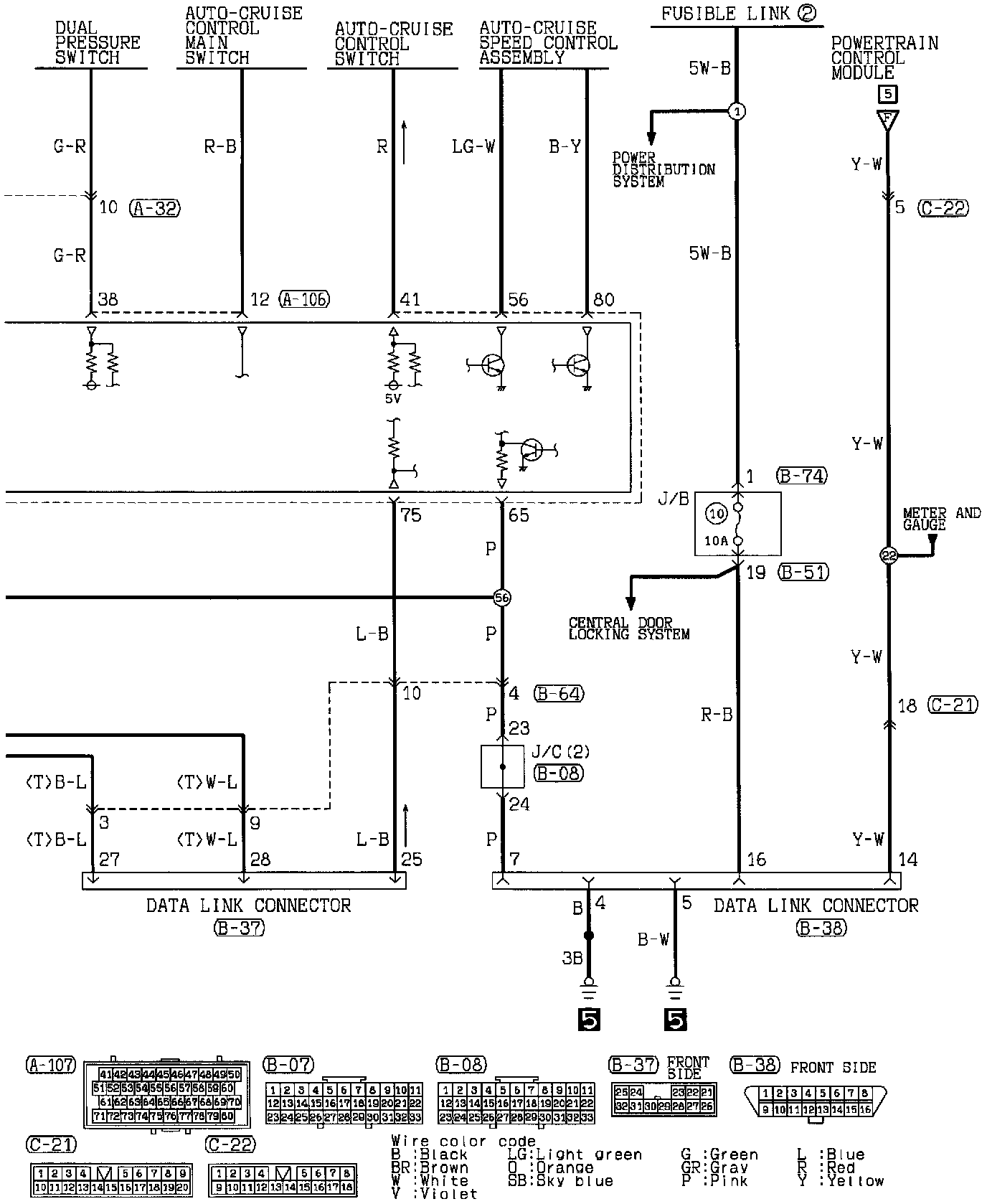

MFI System (Part 8 Of 9):

Data Link Connector
Dedicated Fuse
J/B
J/C (1,2)
Powertrain Control Module

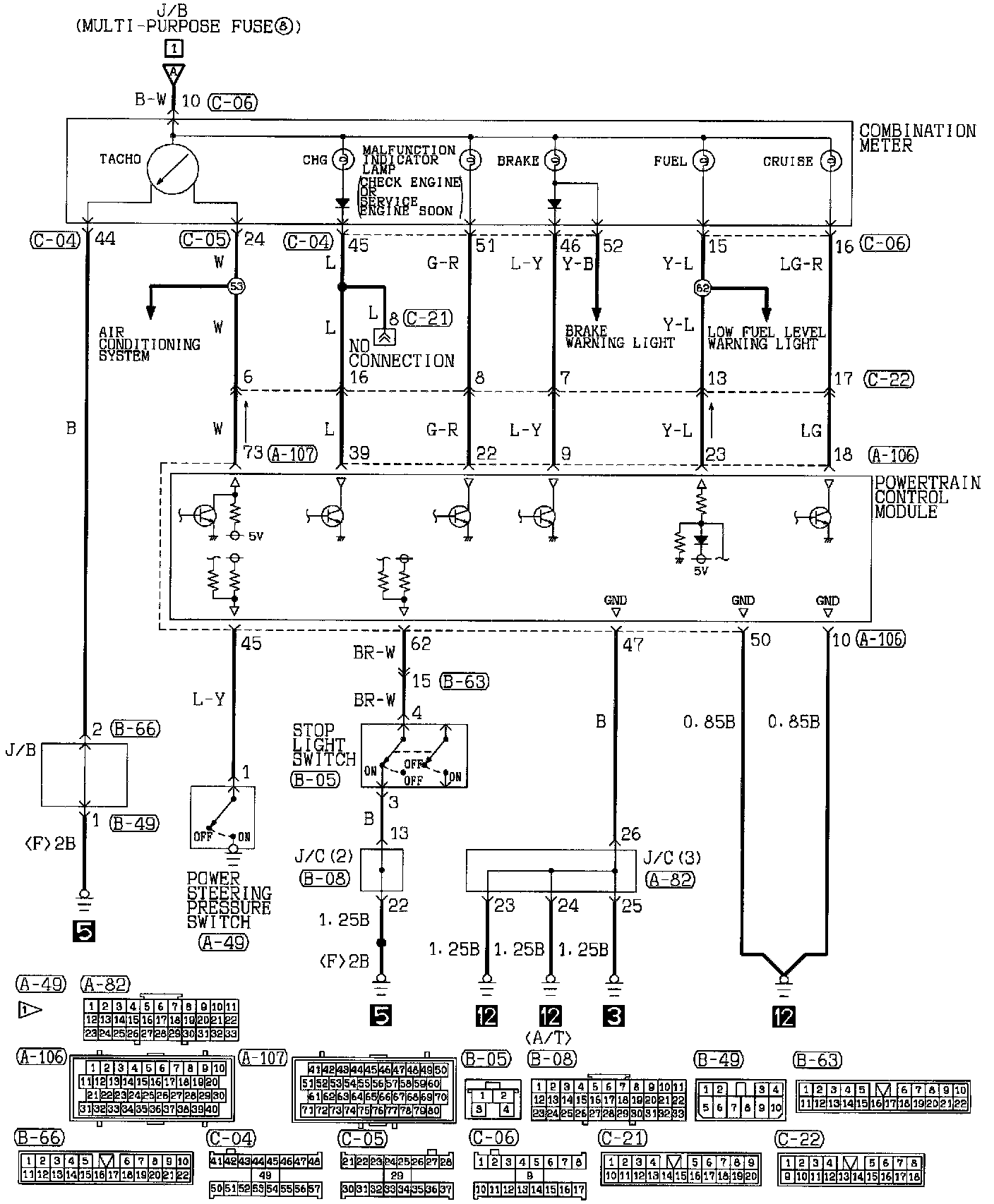

MFI System (Part 9 Of 9):

Combination Meter
J/B
J/C (2,3)
Powertrain Control Module
Power Steering Pressure Switch
Stop Light Switch
