Automatic Air Conditioning System

Air Conditioning System (Part 1 Of 5):

A/C Switch Illumination Light
Blower Motor
Blower Resistor
Blower Switch
Dedicated Fuse
J/B
- Blower Motor Relay

Air Conditioning System (Part 2 Of 5):

A/C Switch
Automatic Compressor-ECM
Defroster Switch
Powertrain Control Module

Air Conditioning System (Part 3 Of 5):

Condenser Fan Motor
Condenser Fan Relay (LO & HI)
Dedicated Fuse
J/B
Radiator Fan Motor
Radiator Fan Relay (LO1)

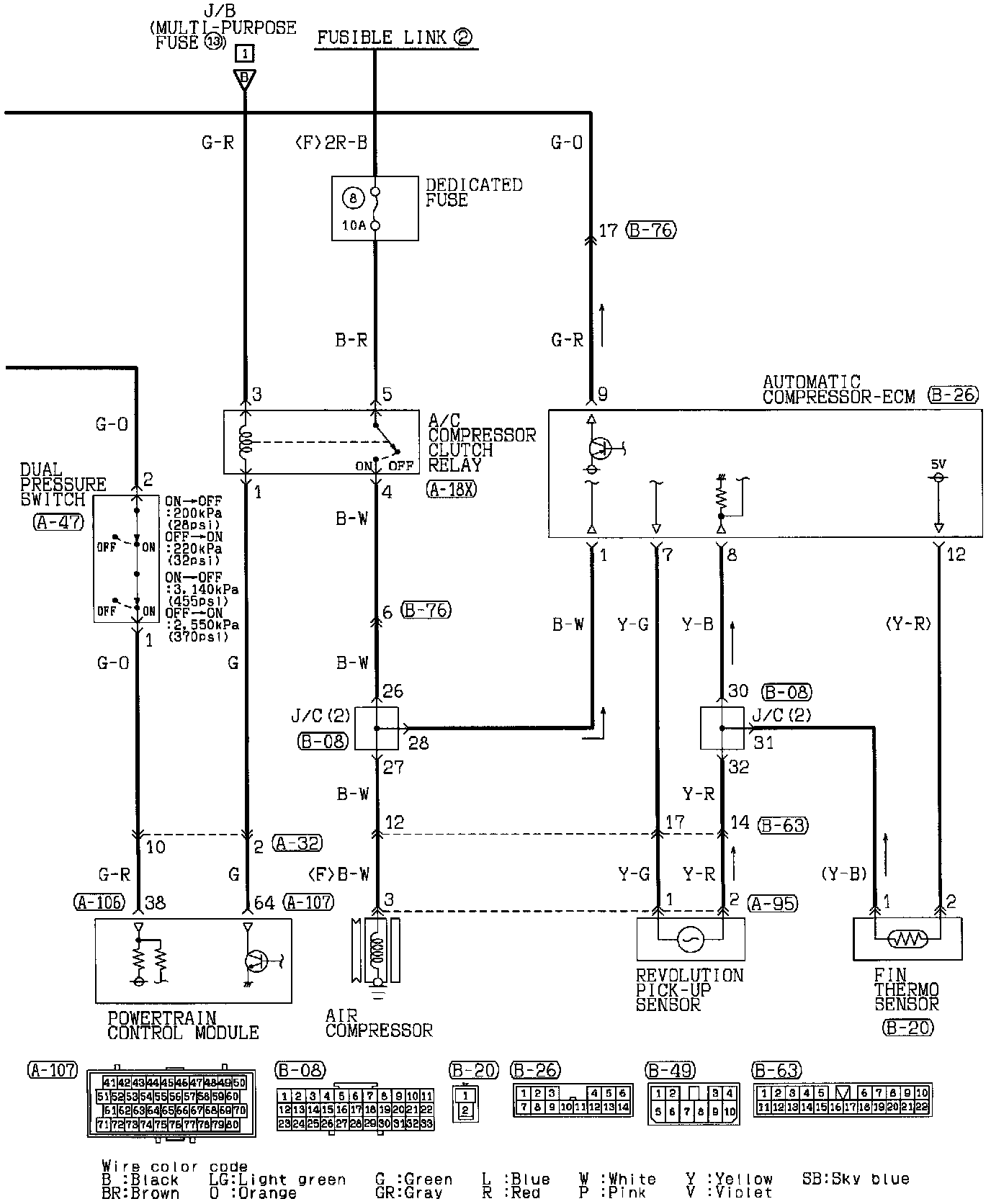

Air Conditioning System (Part 4 Of 5):

A/C Compressor Clutch Relay
Air Compressor
Automatic Compressor-ECM
Dedicated Fuse
Dual Pressure Switch
Fin Thermo Sensor
J/C (2)
Powertrain Control Module
Revolution Pick-Up Sensor

Air Conditioning System (Part 5 Of 5):

EATX-ECM
Engine Coolant Temperature Sensor
Input Speed Sensor
J/C (3, 4)
Output Speed Sensor
Powertrain Control Module
