E Connectors - Interior Harness
E Connectors - Interior Harness

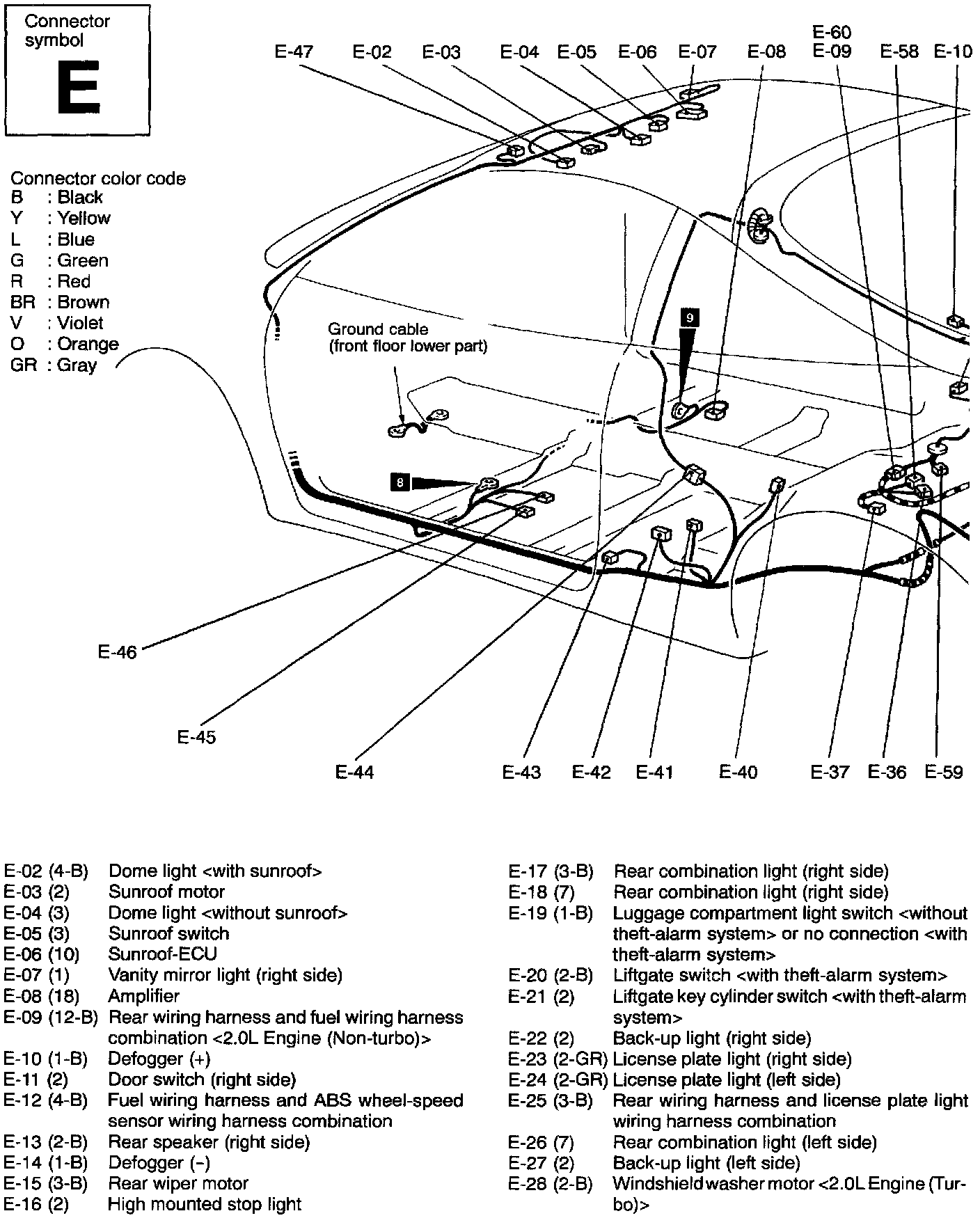

Interior - E Connector (02 (4-B) Thru 28 (2-B)):

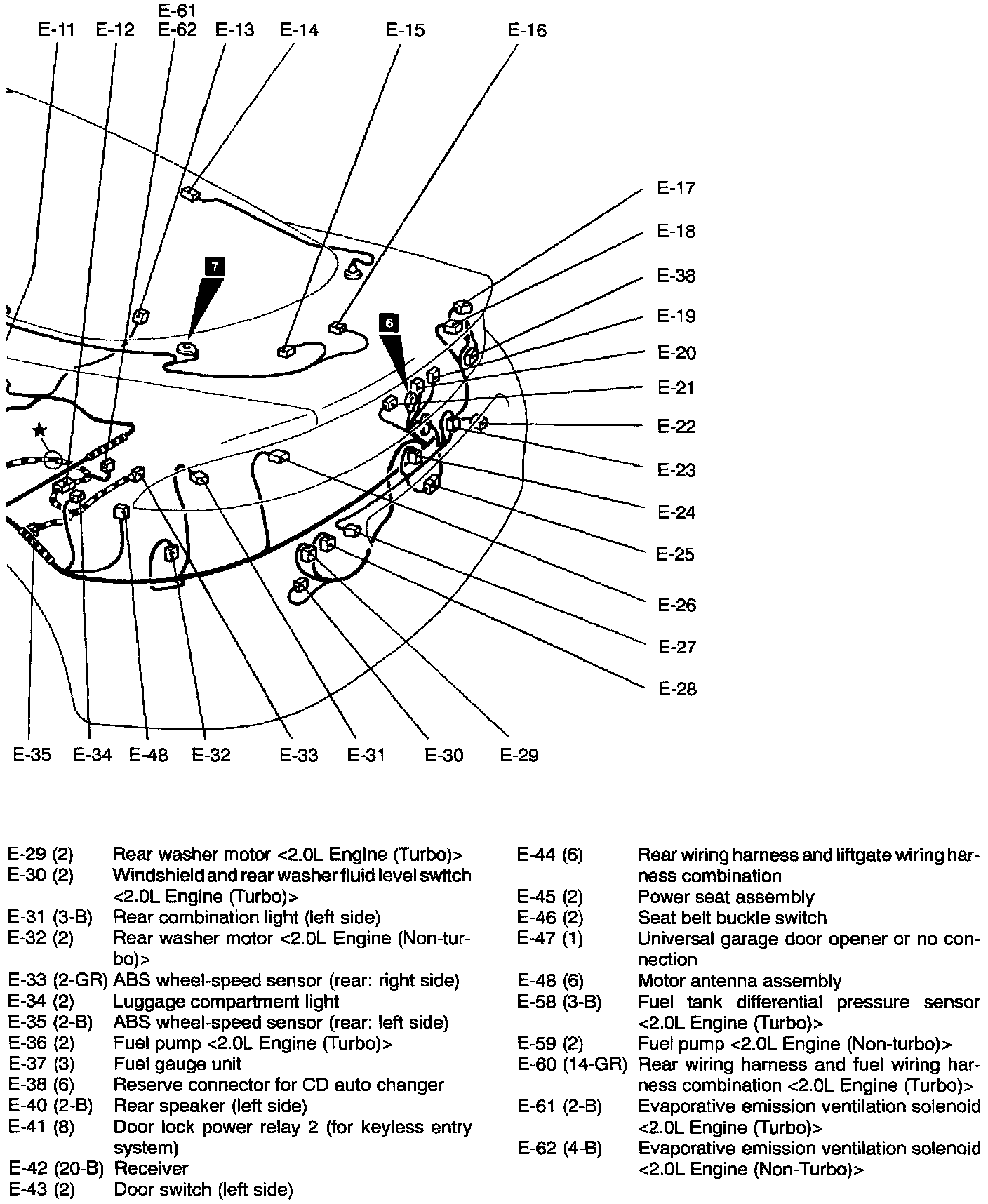

Interior - E Connector (29 (2) Thru 62 (4-B)):
