A Connectors - Engine Compartment Harness

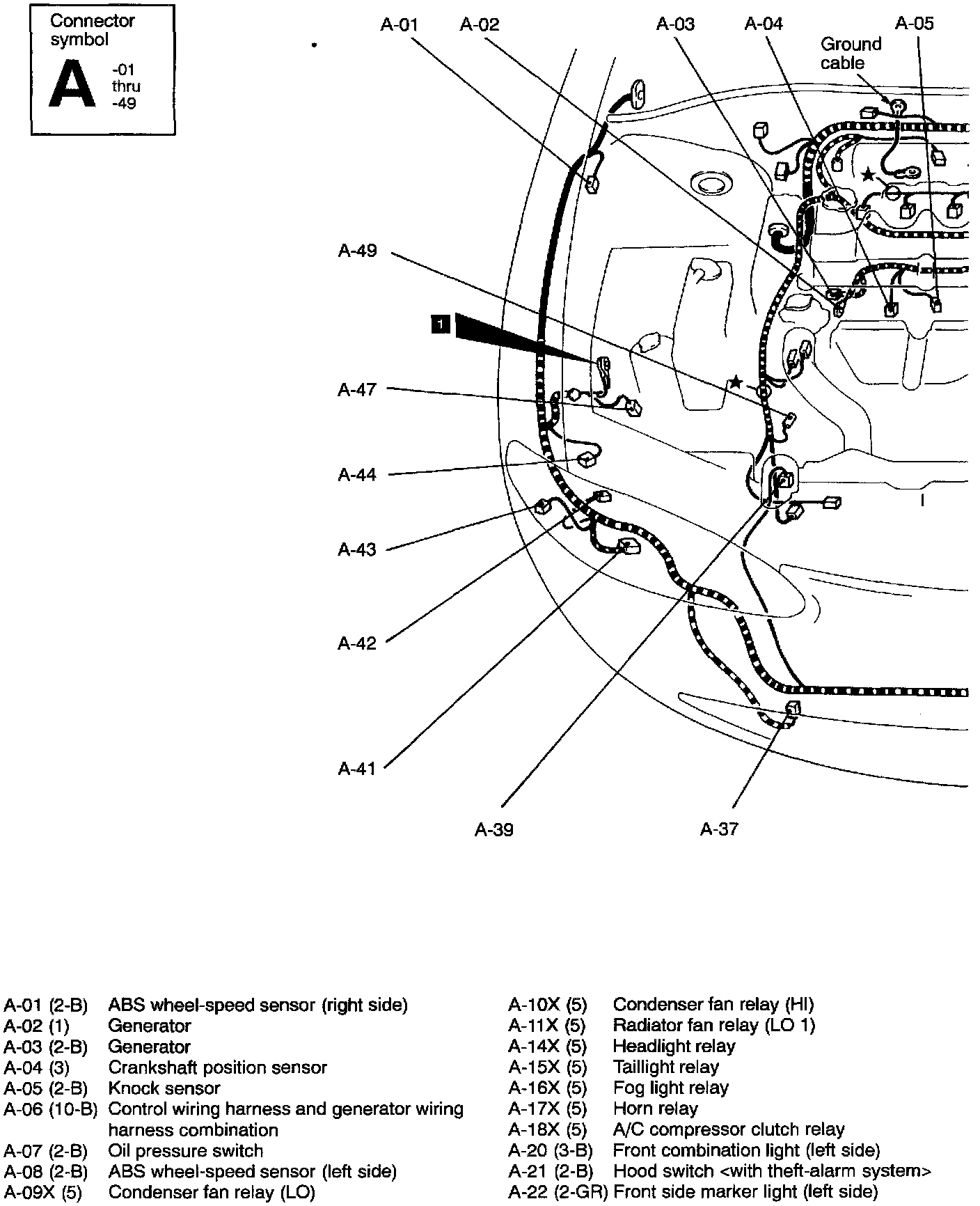

Engine Compartment - A Connector (01 (2-B) Thru 22 (2-GR)):

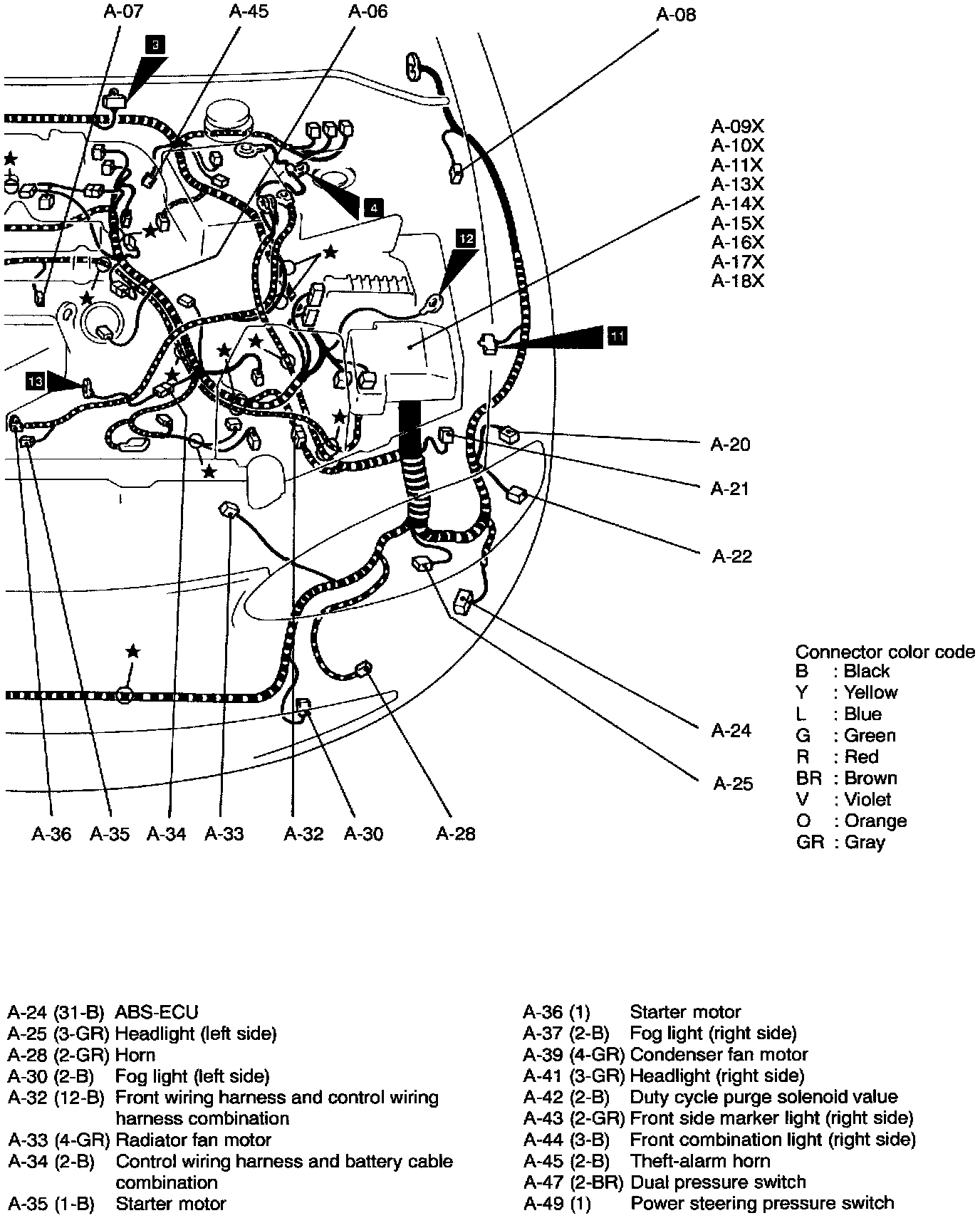

Engine Compartment - A Connector (24 (31-B) Thru 49 (1)):

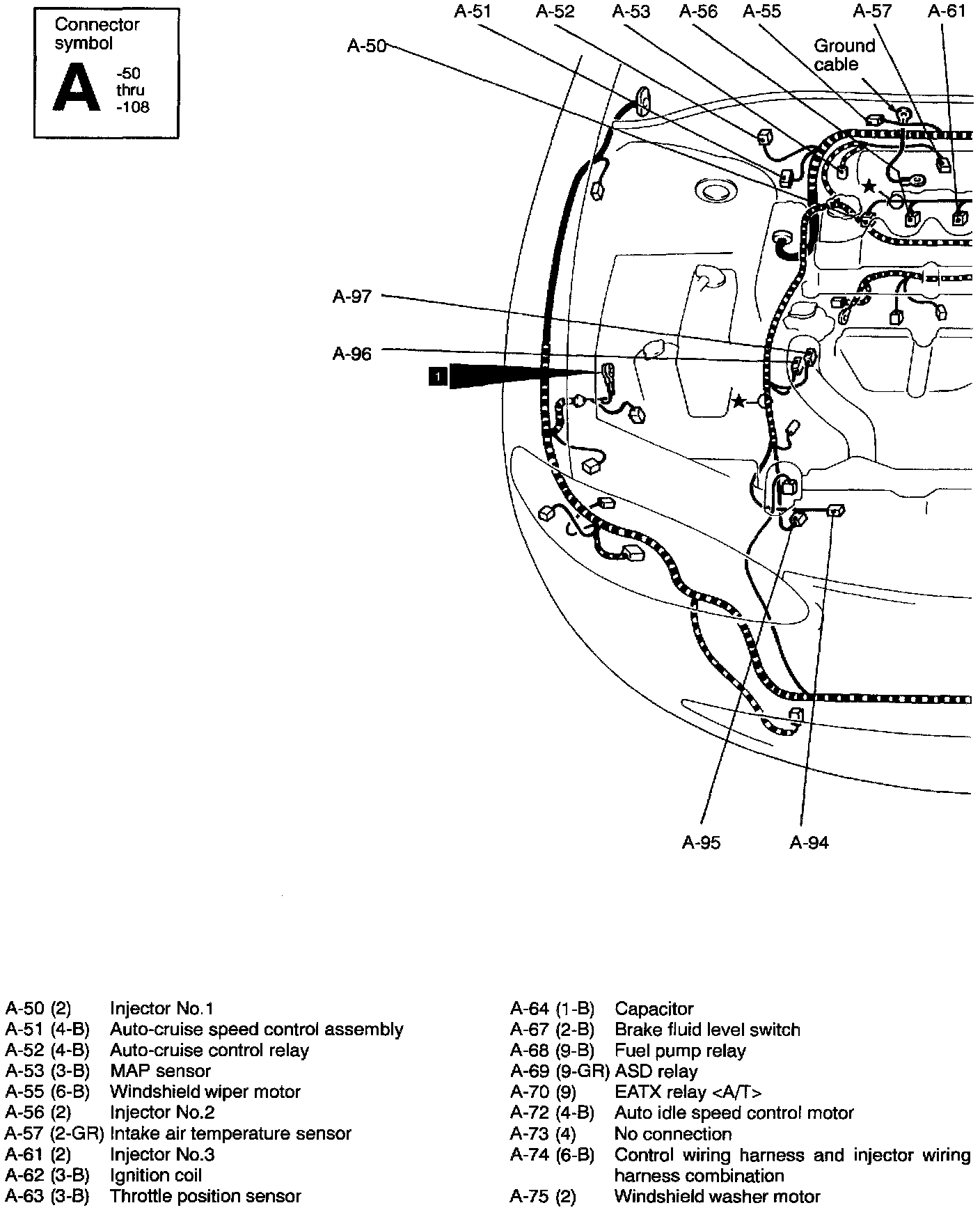

Engine Compartment - A Connector (50 (2) Thru 75 (2)):

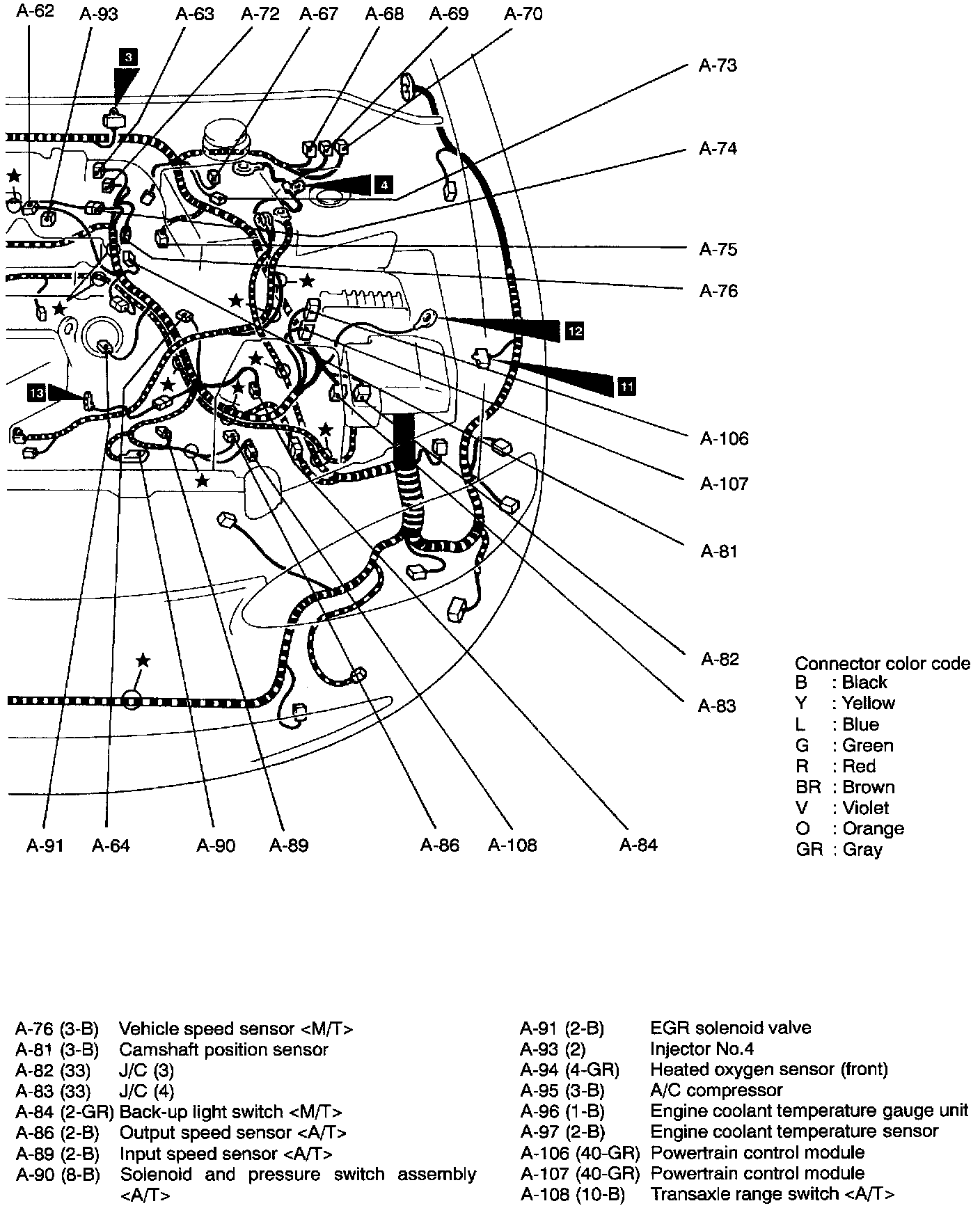

Engine Compartment - A Connector (76 (3-B) Thru 108 (10-B)):
