Home >> Mitsubishi >> 1999 >> Eclipse GS L4-1997cc 2.0L DOHC MFI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Engine Control System >> DTC 43 >> Malfunction Indicator Light Flash Codes >> 43 Ignition Coil #2 Primary Circuit

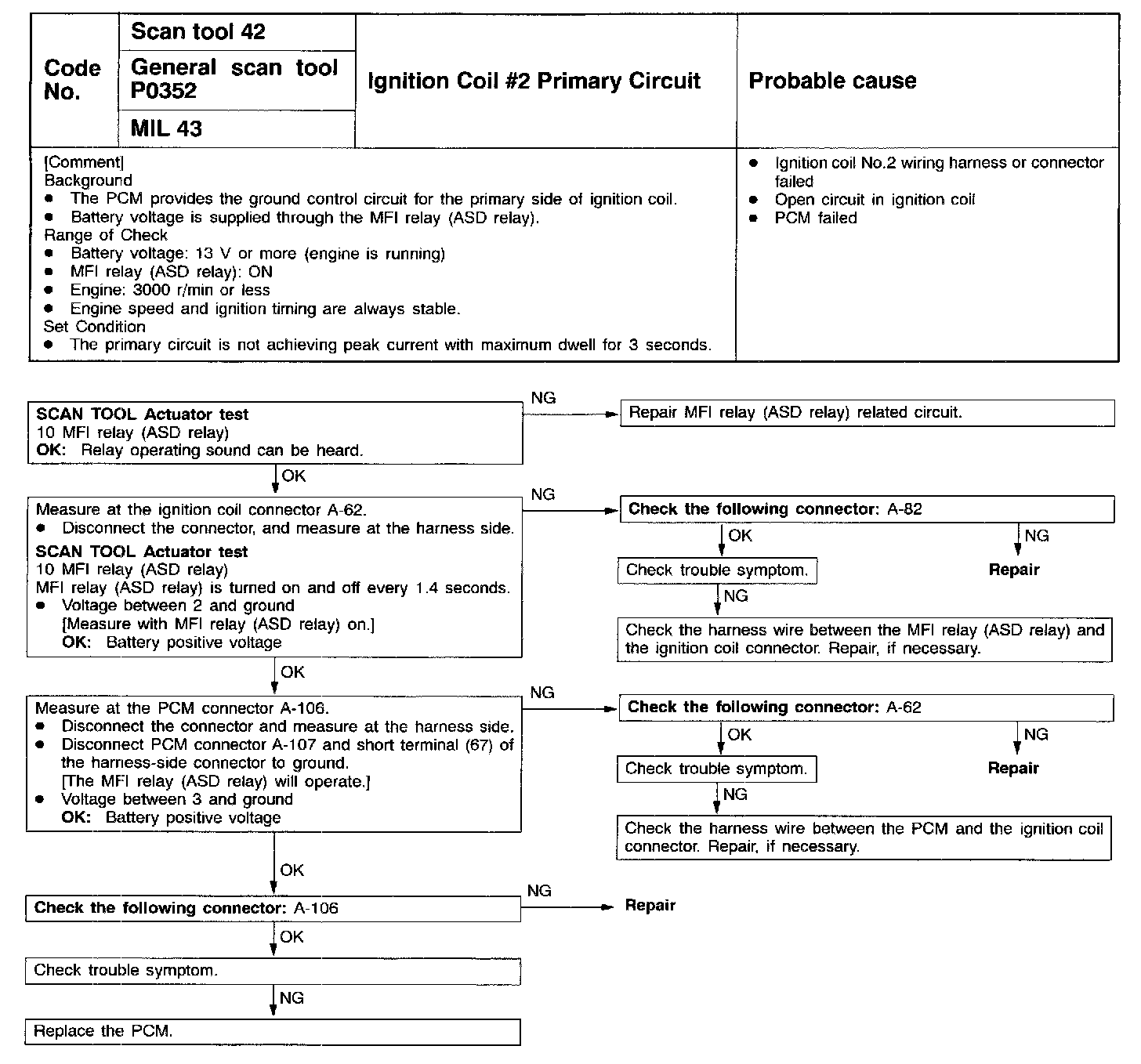

43 Ignition Coil #2 Primary Circuit
