Eclipse GS L4-1997cc 2.0L DOHC MFI
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
Transmission Control Systems
>>
SAE Diagnostic Trouble Codes
SAE Diagnostic Trouble Codes

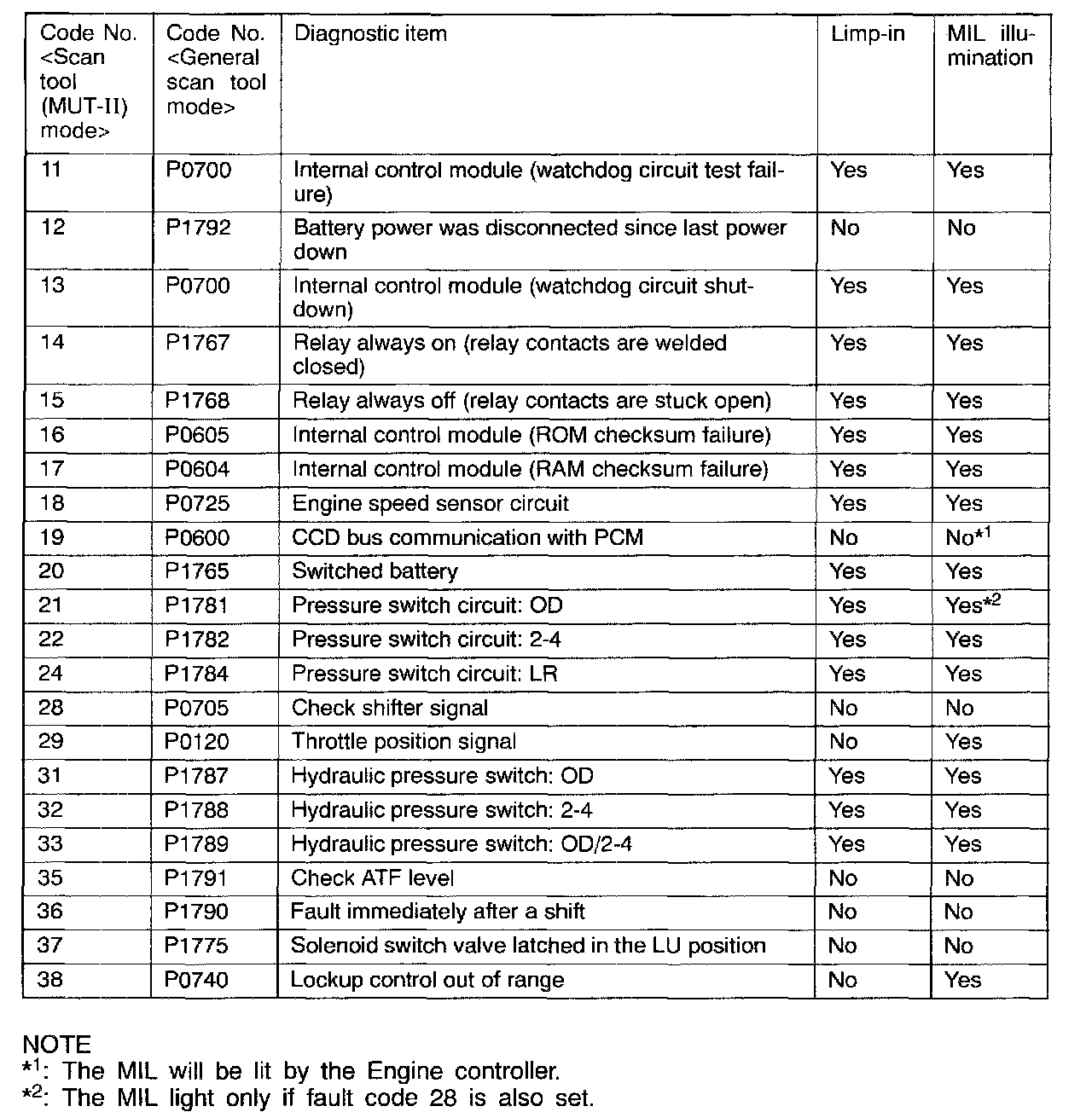

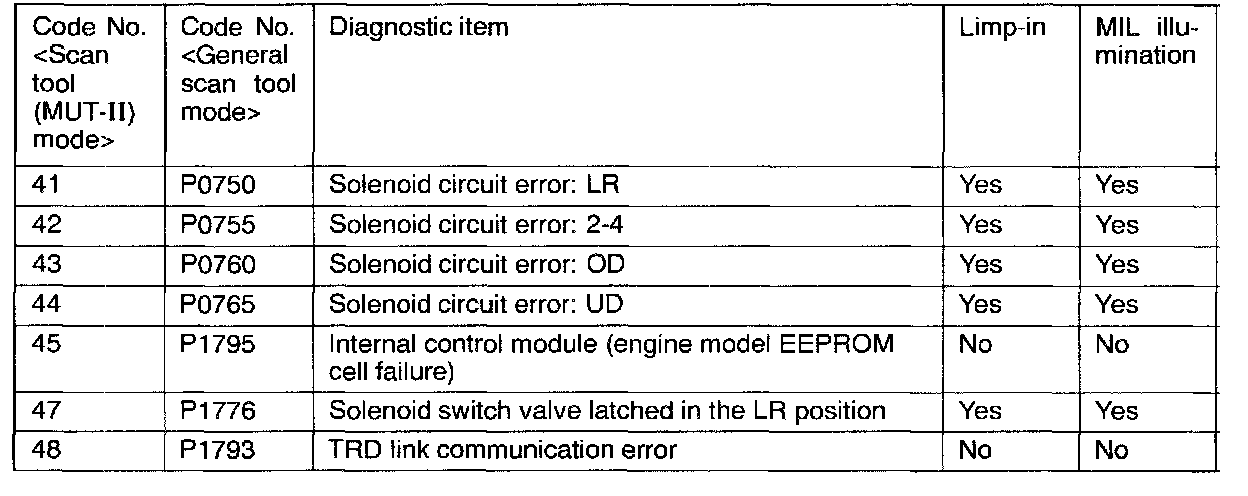

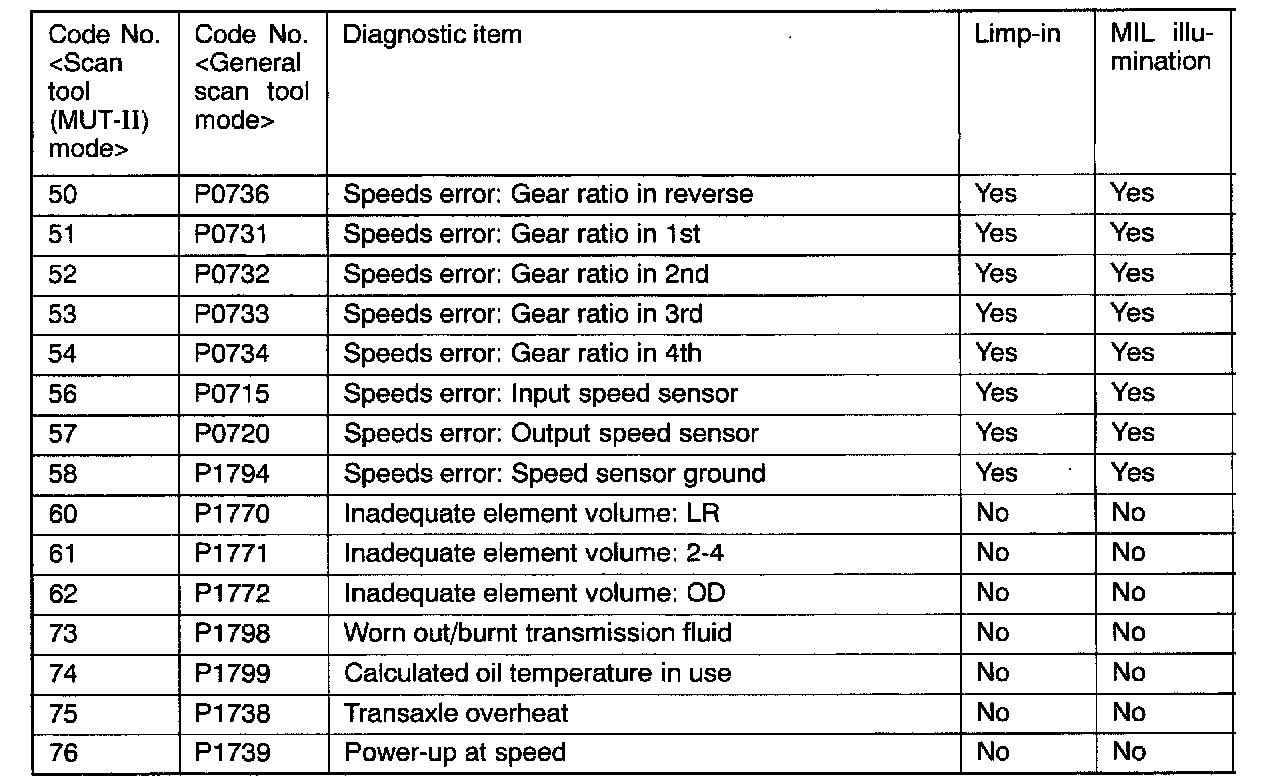

INSPECTION CHART FOR DIAGNOSTIC TROUBLE CODES
NOTE:
*1 - The MIL will be lit by the Engine Controller.
*2 - The MIL light only if fault code 28 is also set.
