Home >> Mitsubishi >> 1999 >> Eclipse GS L4-1997cc 2.0L DOHC MFI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Diagnostic Trouble Code Descriptions >> Transmission Control Systems >> Probable Cause

Probable Cause

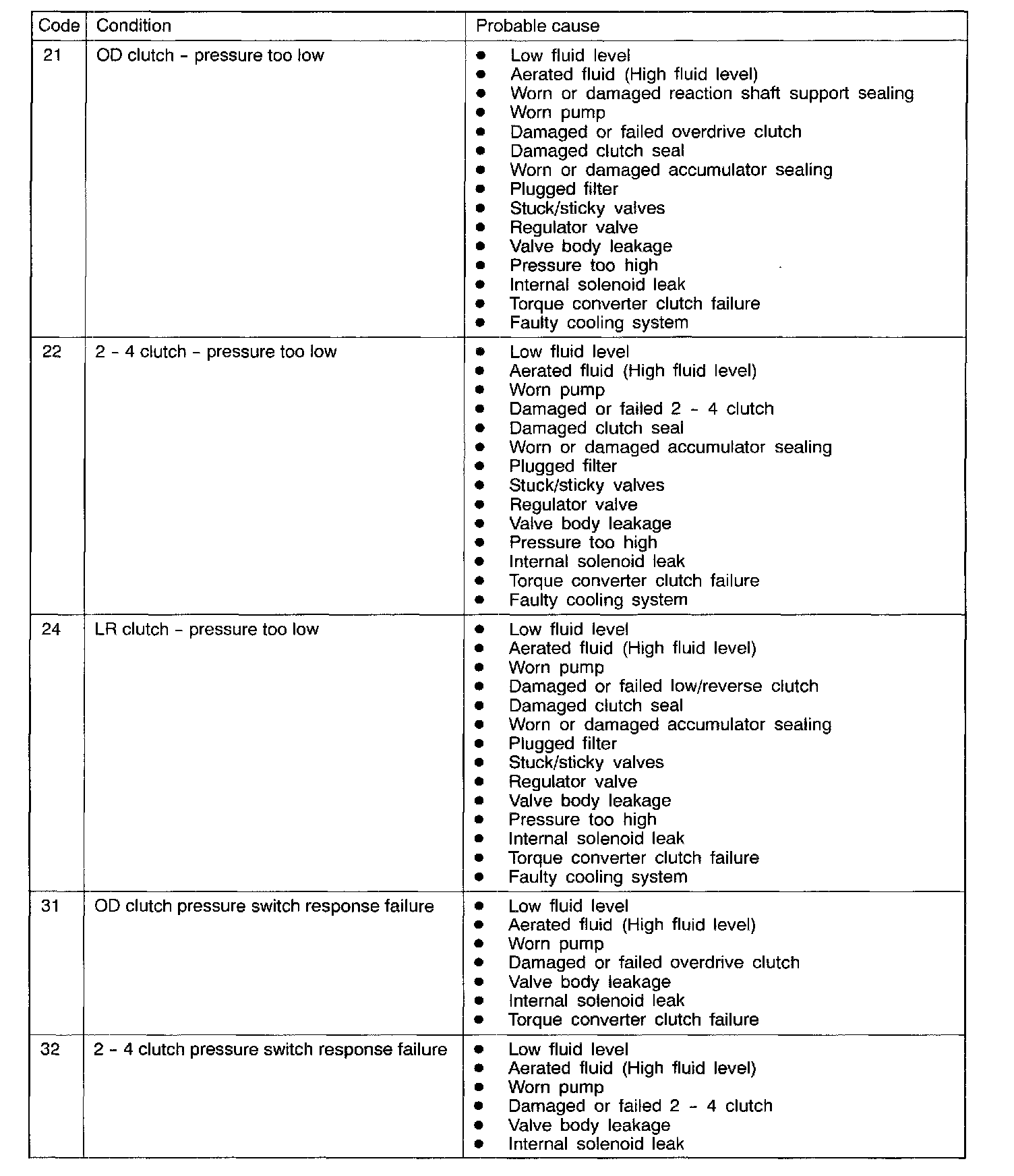

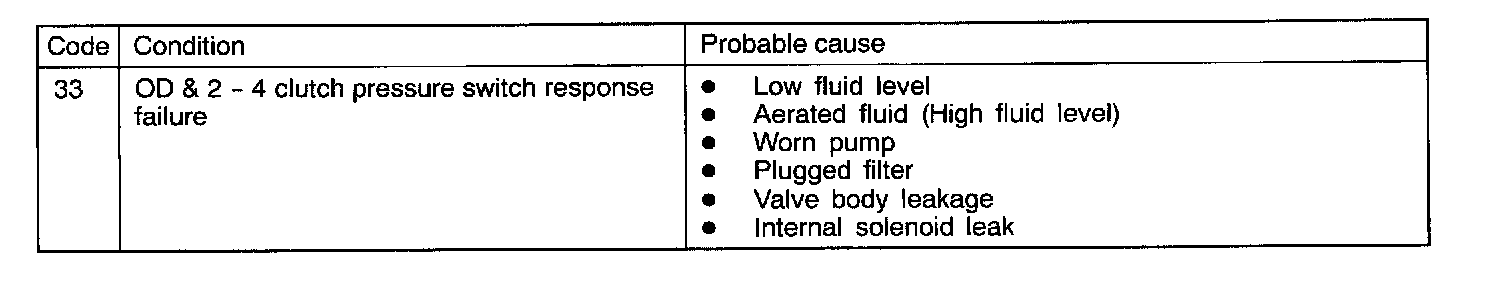

INSPECTION MATRIX FOR DIAGNOSTIC TROUBLE CODE (internal transaxle problem)
