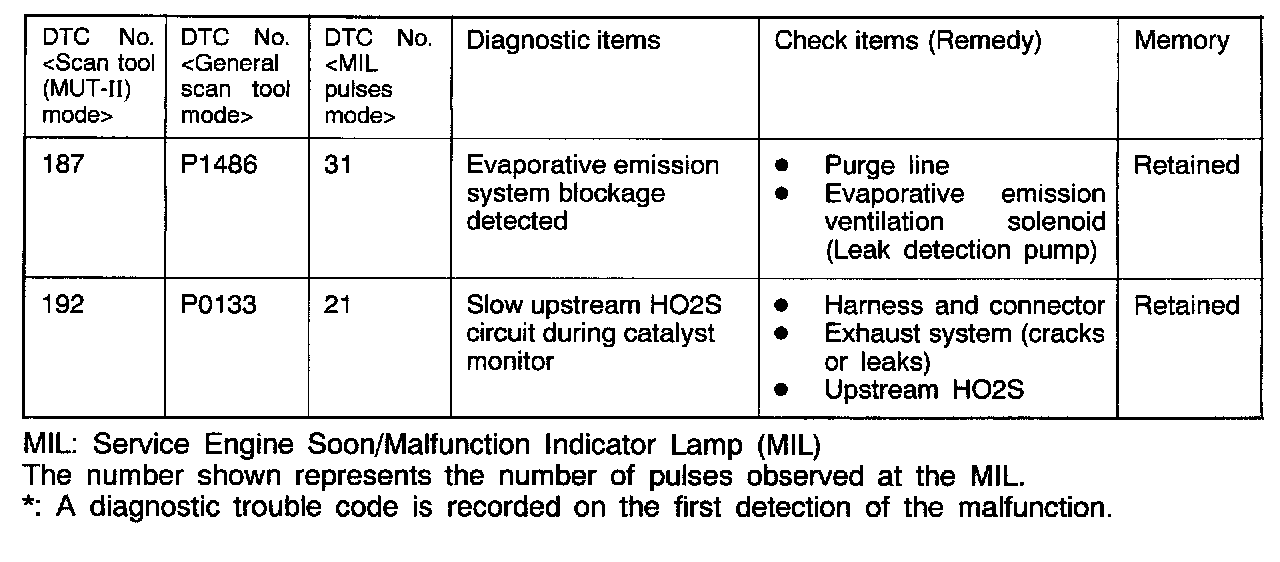

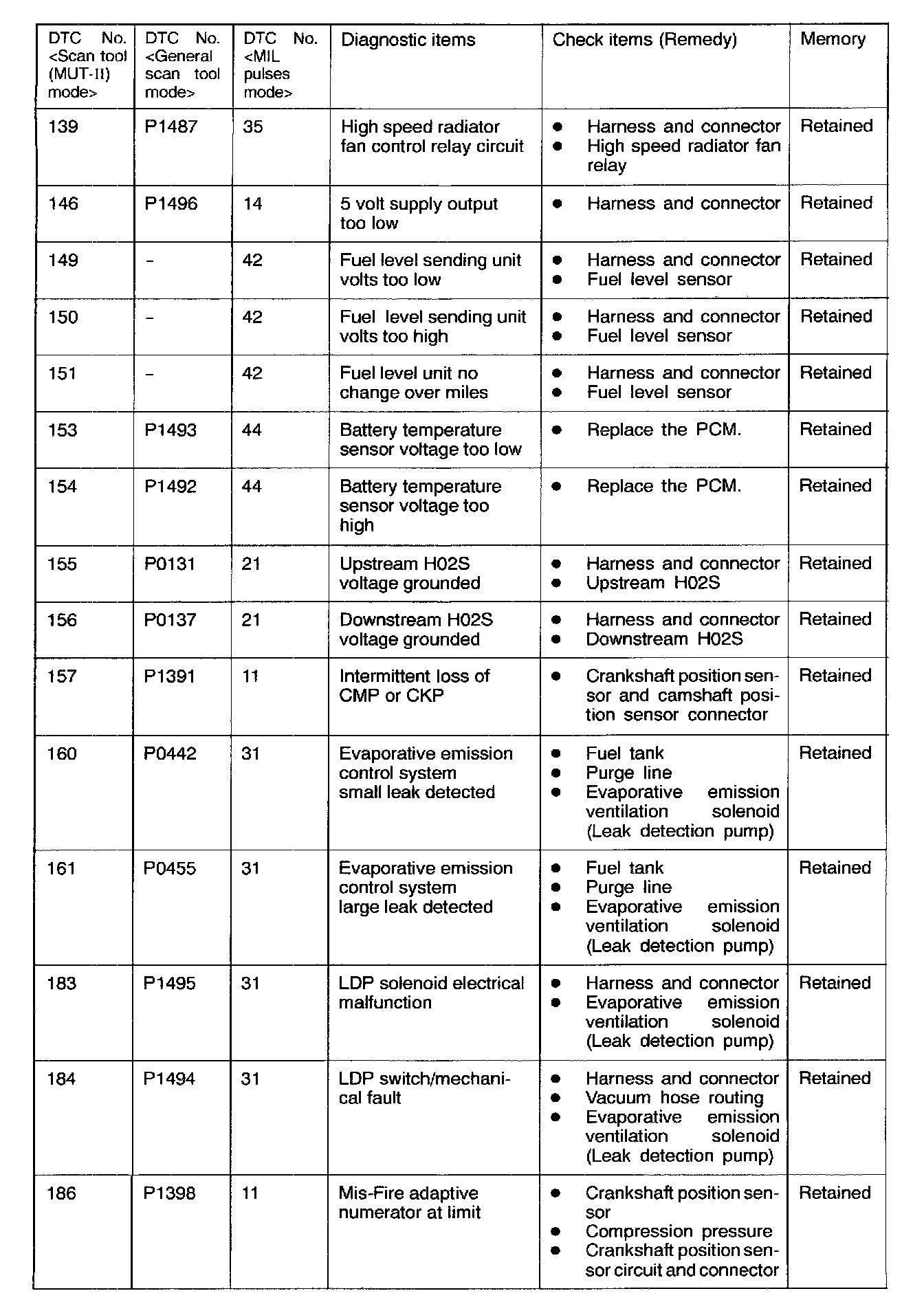

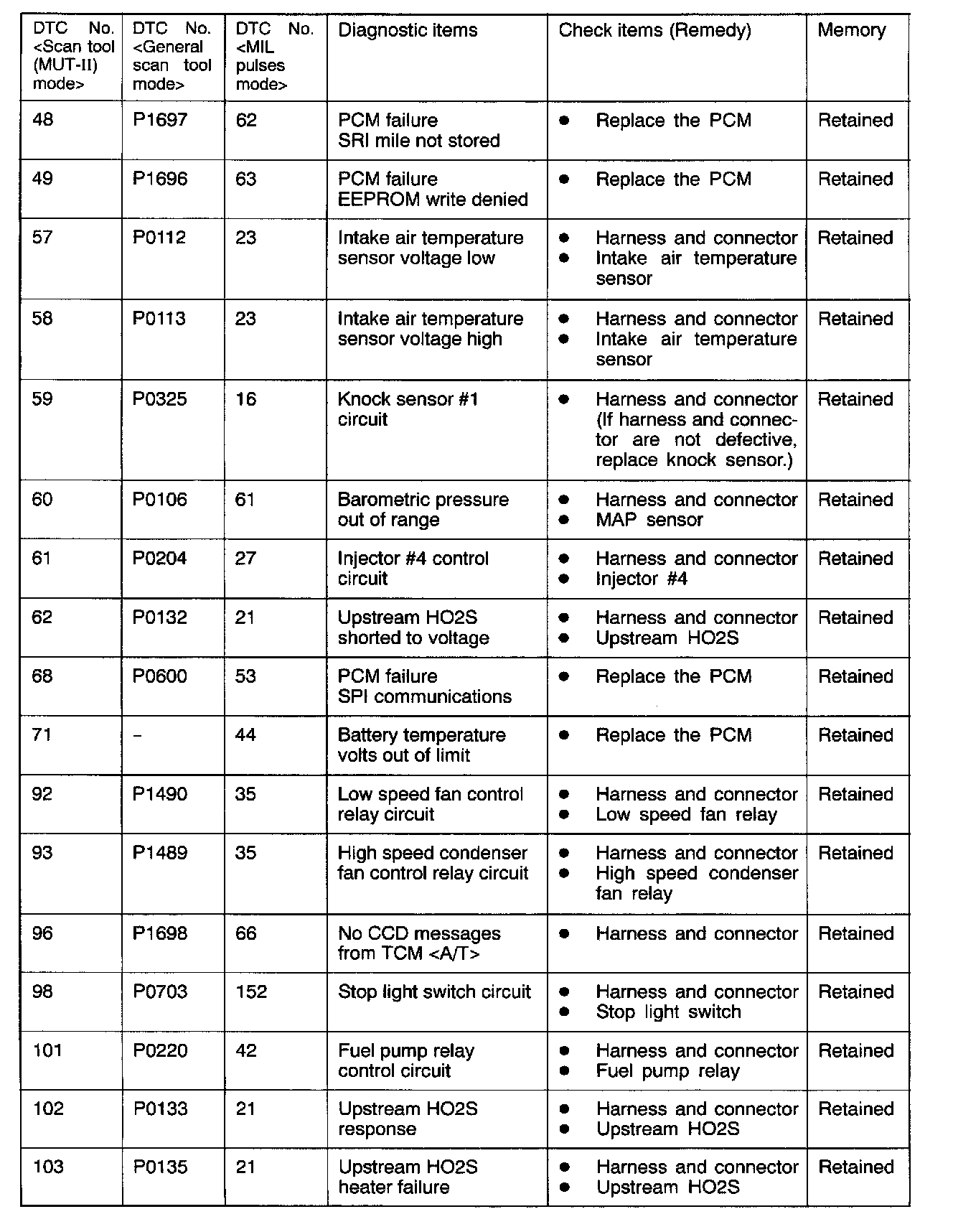

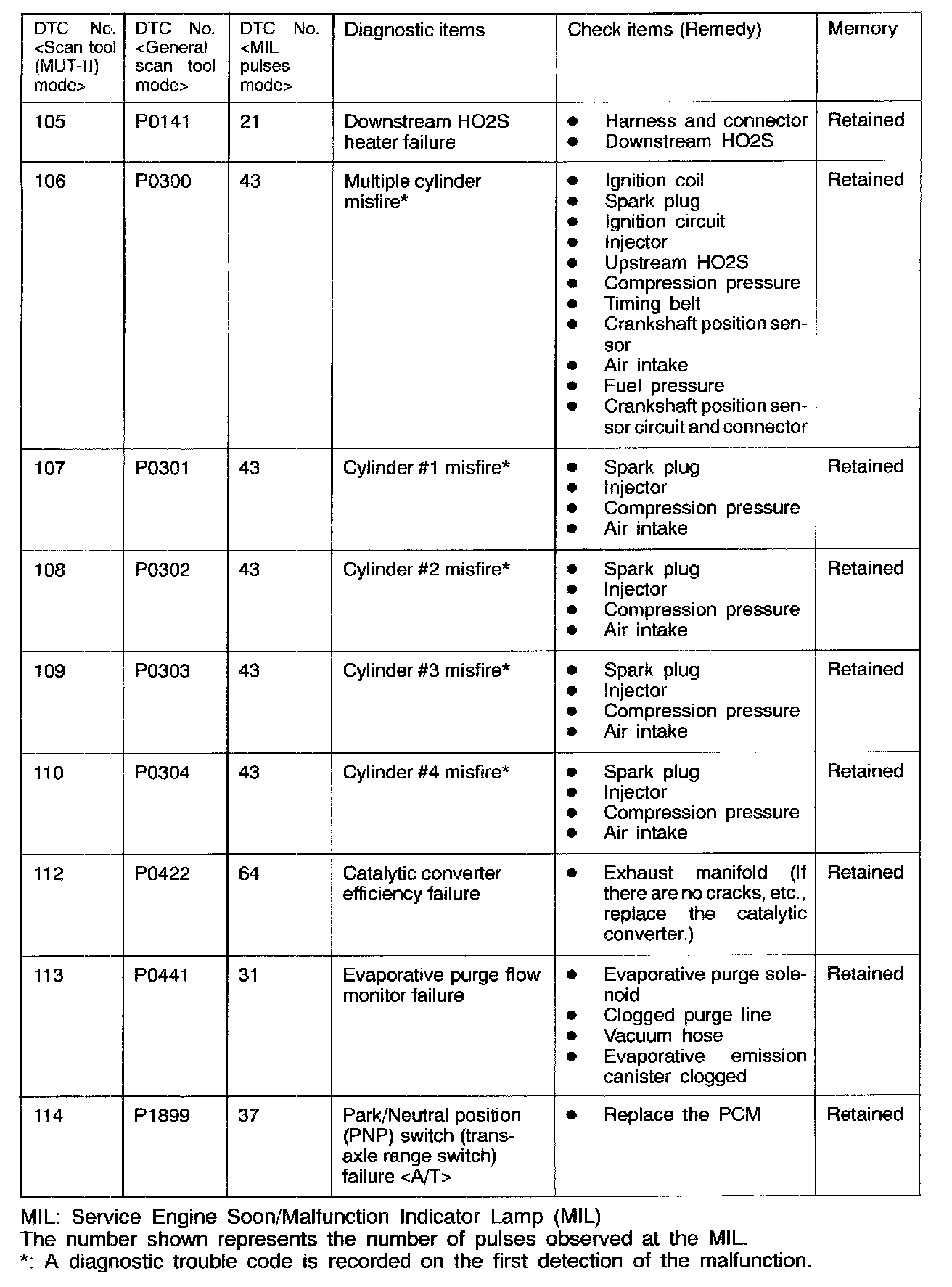

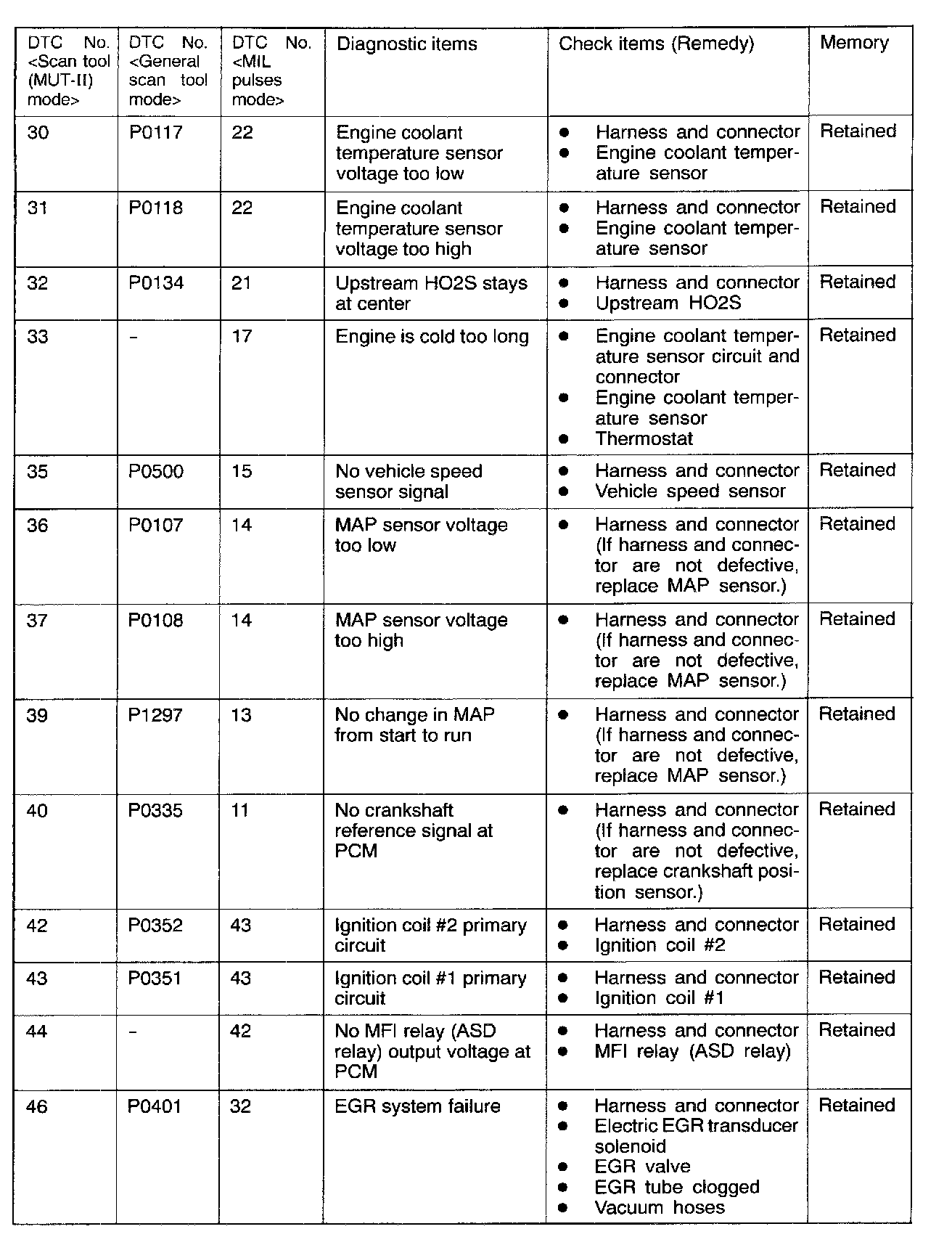

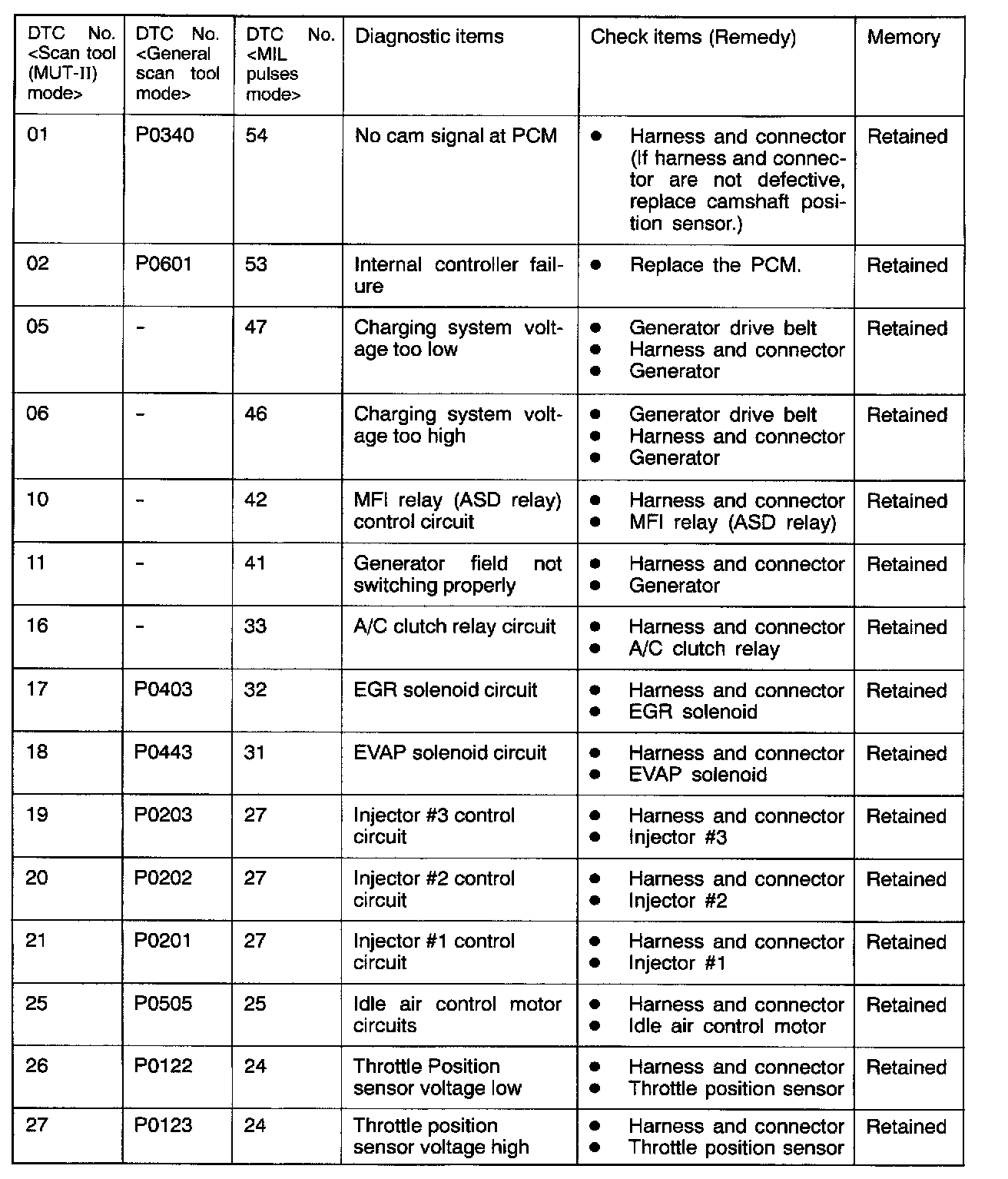

Items Indicated By the Malfunction Indicator Lamp

NOTE: Diagnostic trouble code (DTC) memory is not deleted even after the ignition switch is turned off.

MIL: Service Engine Soon/Malfunction Indicator Lamp (MIL)
The number shown represents the number of pulses observed at the MIL.

*: A diagnostic trouble code is recorded on the first detection of the malfunction.
