A/T Technical Data

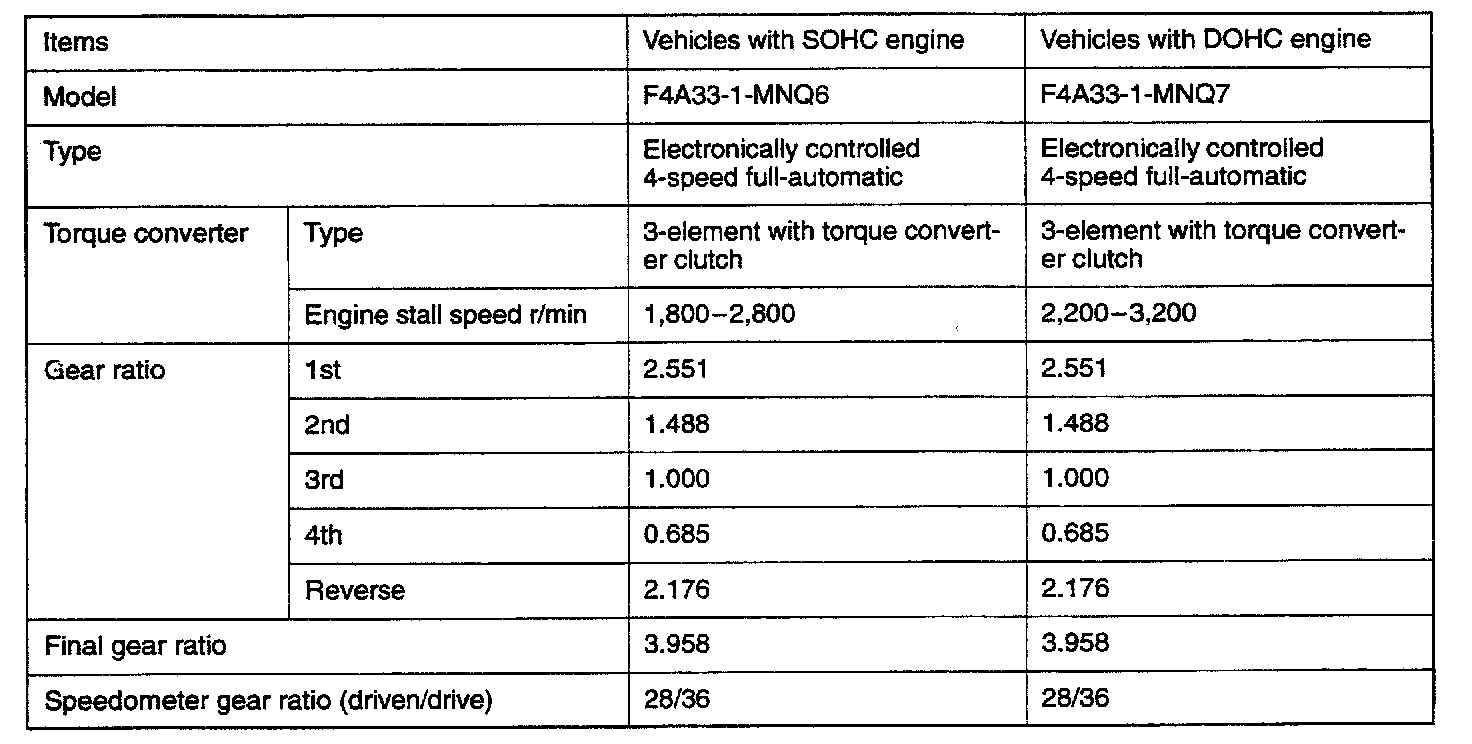

F4A33 4-spd A/T, Gear Ratios:

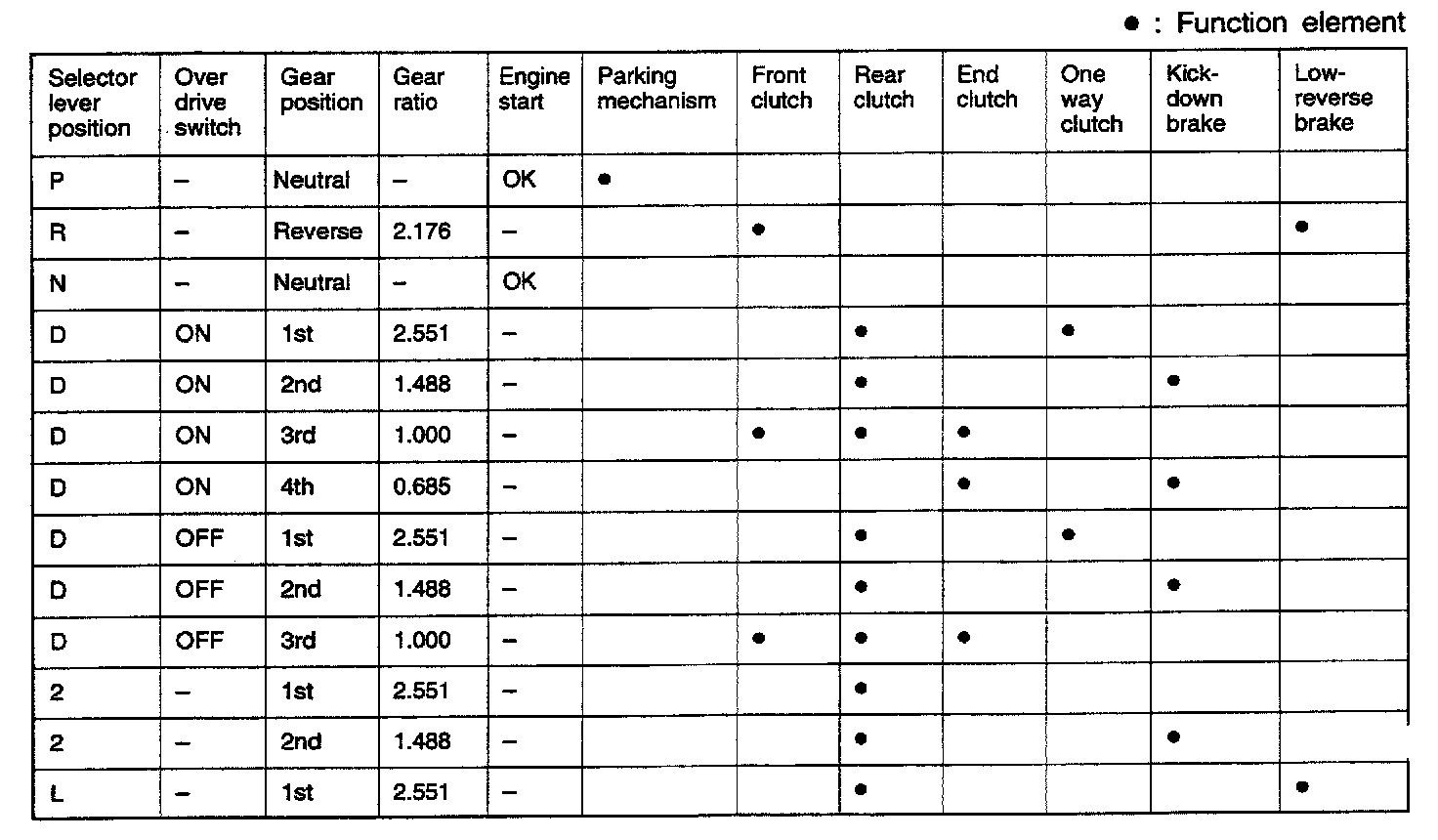

F4A33 4-spd A/T, Function Element Table:

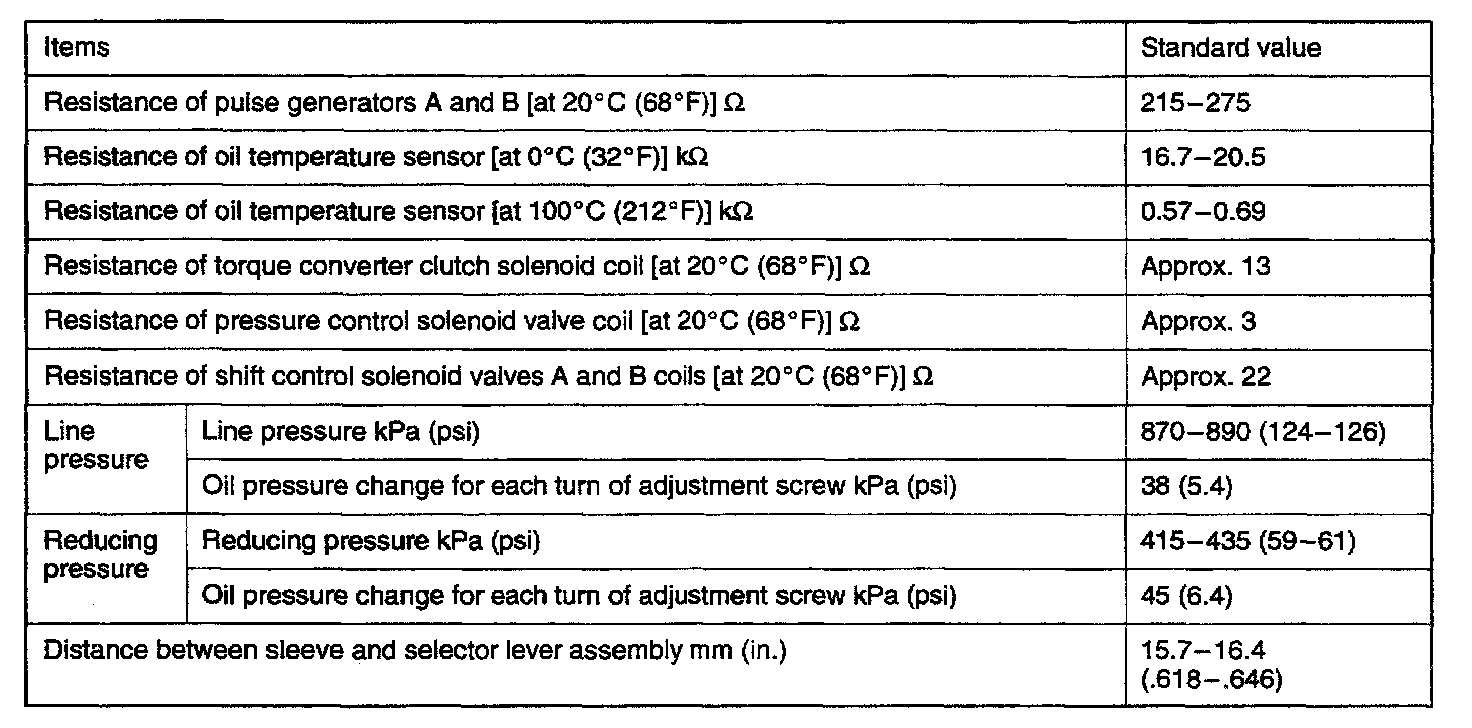

F4A33 4-spd A/T, Standard Values:

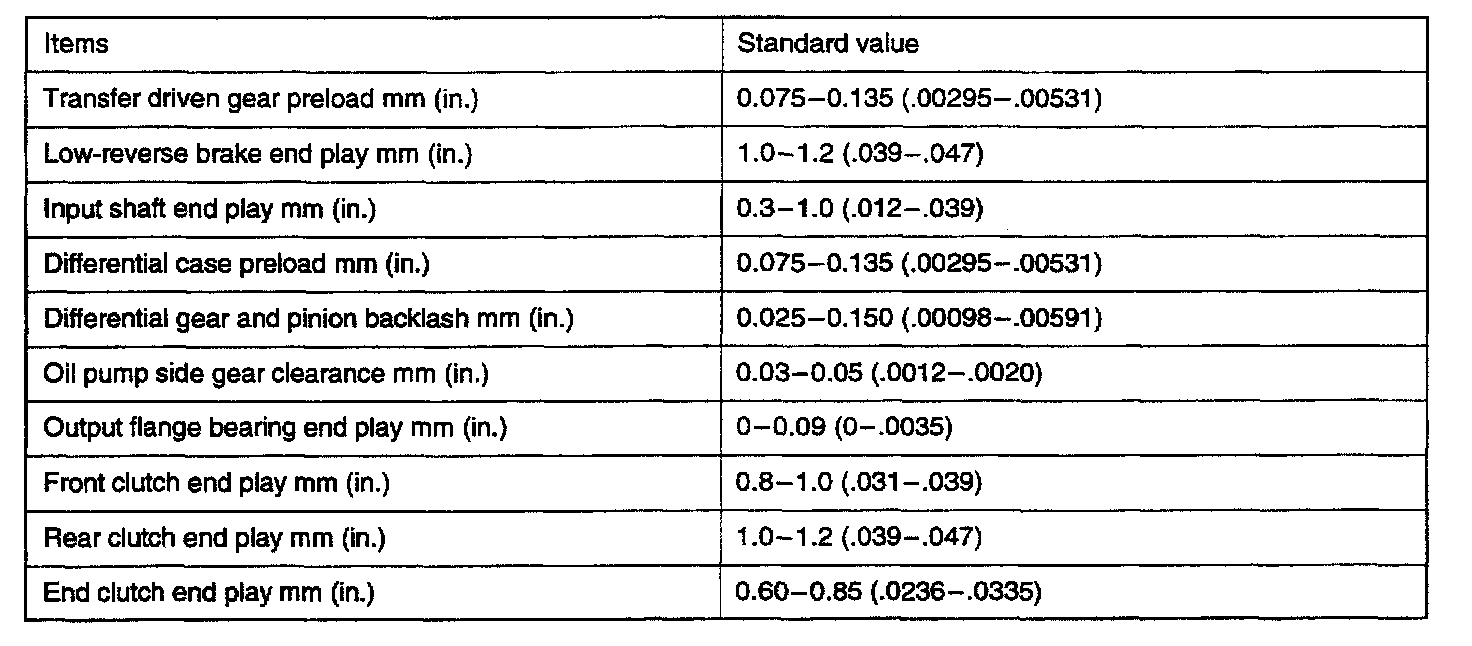

F4A33 4-spd A/T, Standard Values:

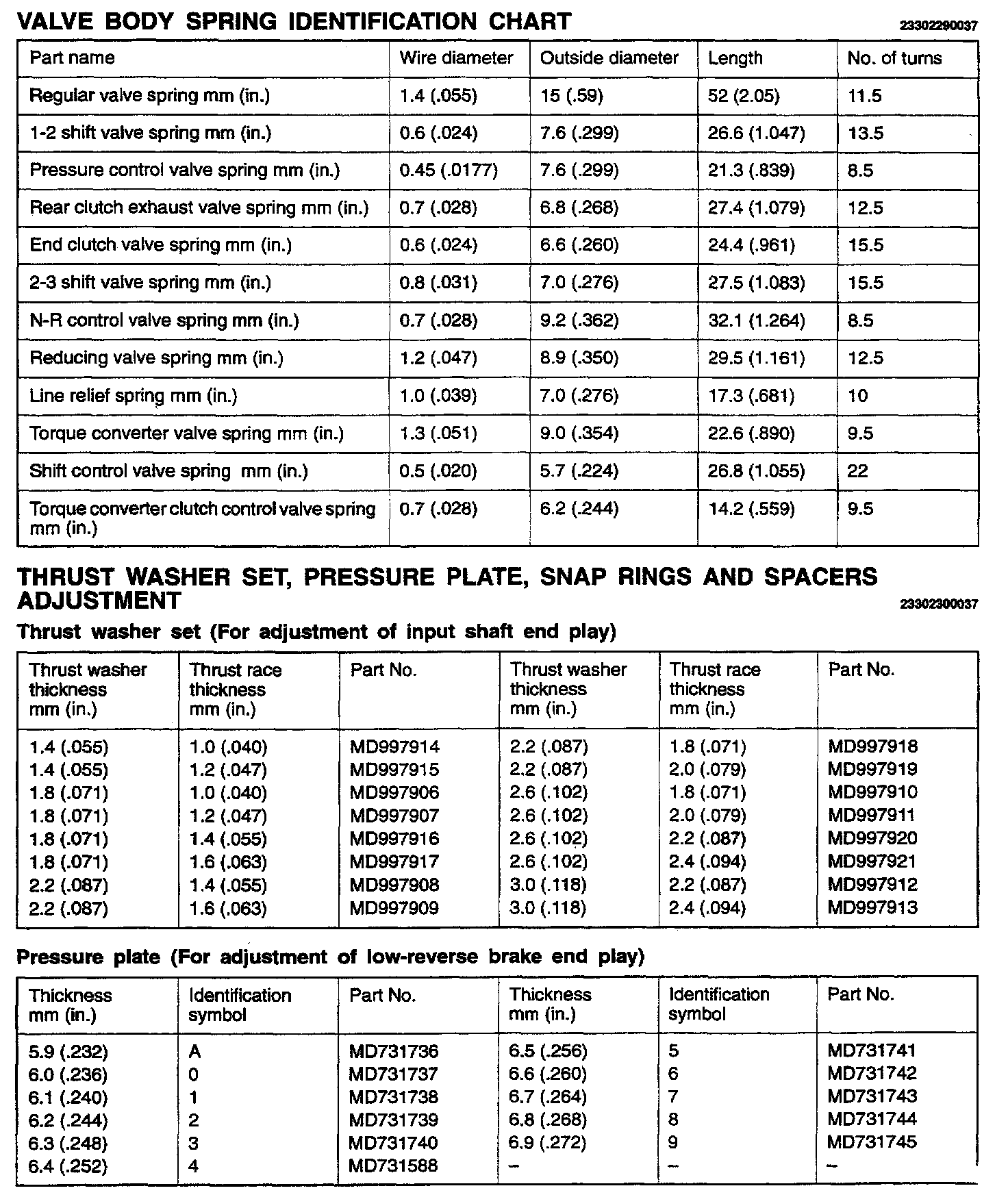

F4A33 4-spd A/T, Valve Body Springs & Input Shaft/Low-Reverse End Play:

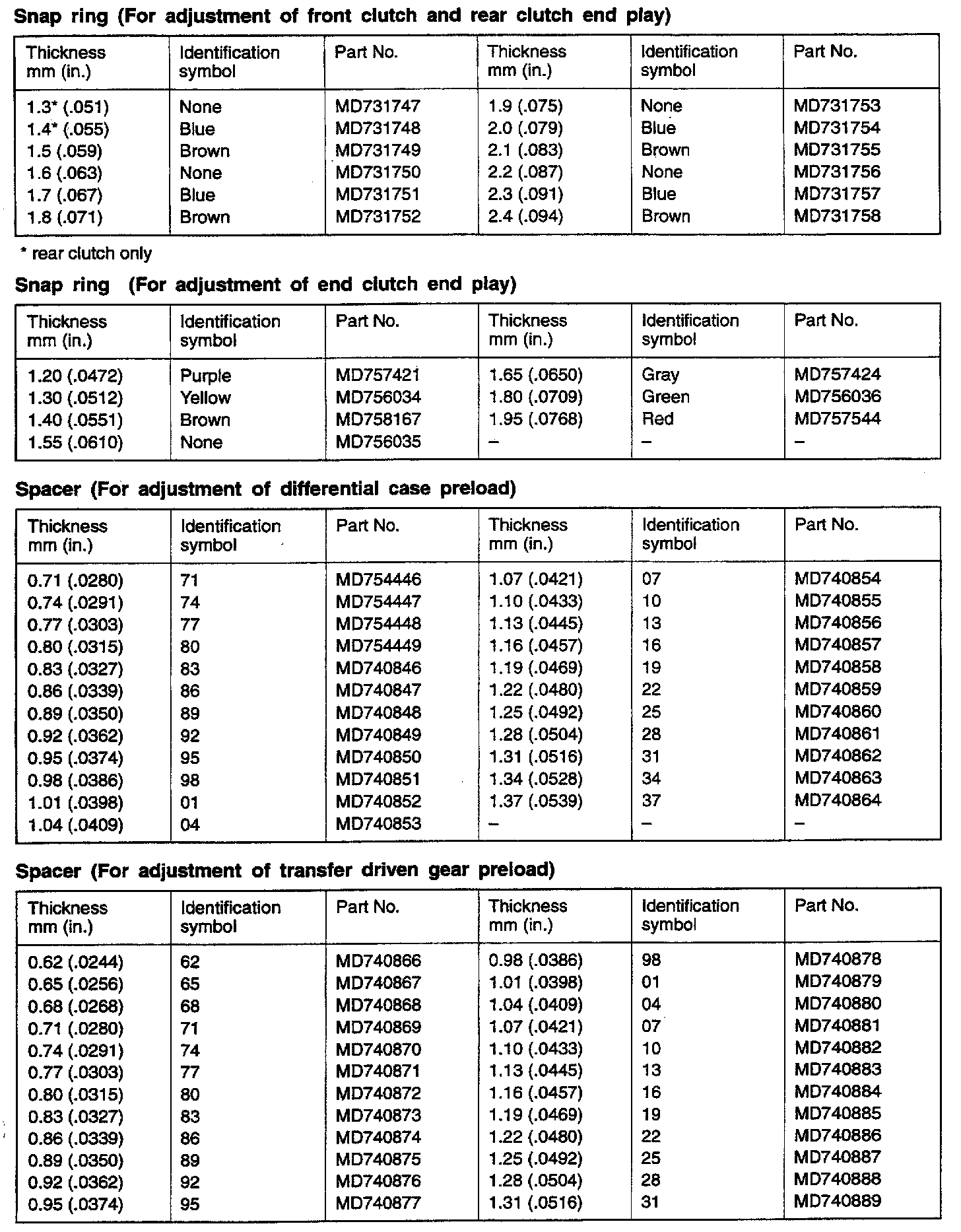

F4A33 4-spd A/T, Clutch End Play & Differential/transfer Gear Preload:

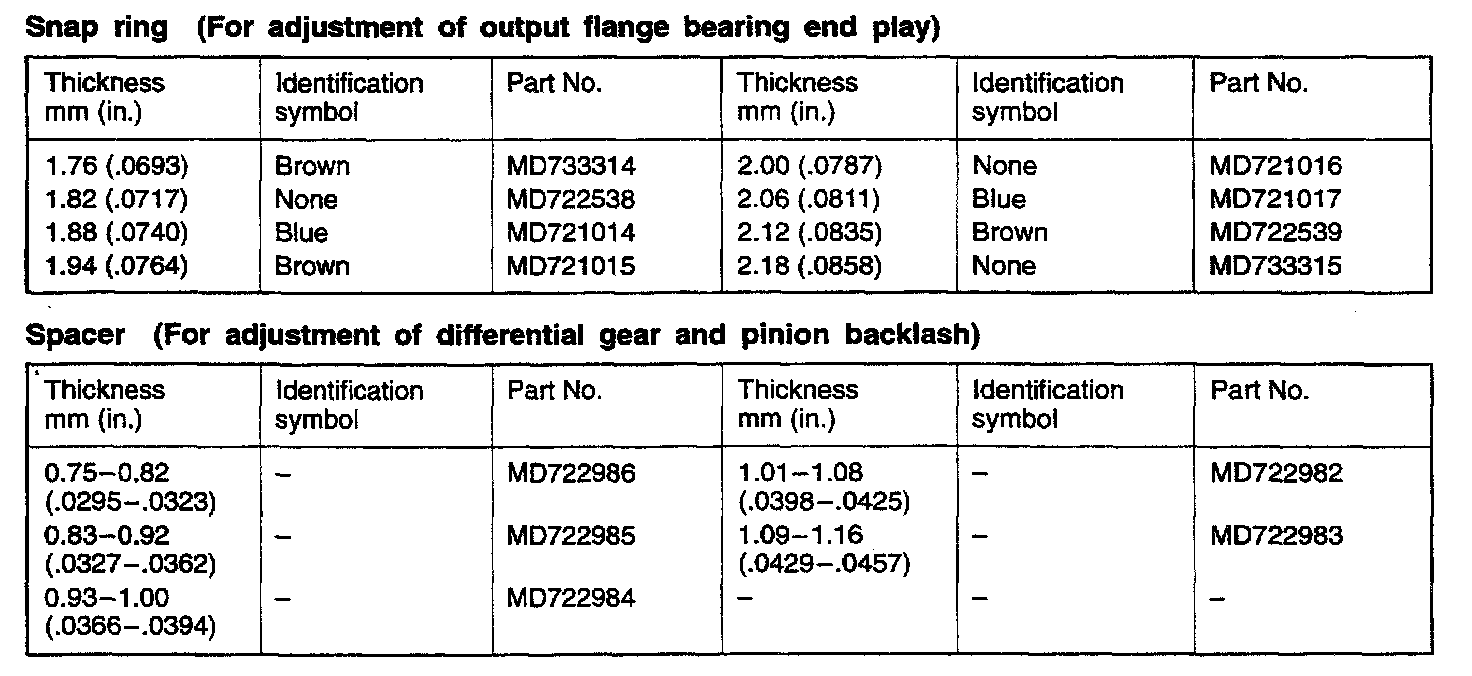

F4A33 4-spd A/T, Output Bearing End Play & Differential Gear Backlash:
