Inspection Using Scan Tool Data List And Actuator Testing

COMPONENTS INSPECTION PROCEDURE

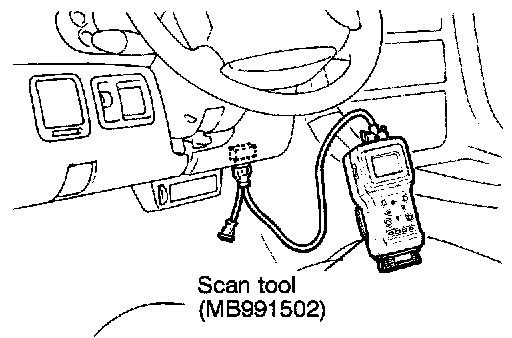

USING SCAN TOOL
1. Check by the data reading and actuator test function. If any abnormality is found, check the body harness, components, etc. and repair as necessary.
2. After repair, check again with the scan tool to make sure that the input and output signals are now normal.
3. Erase the diagnostic trouble code in memory.
4. Disconnect the scan tool.
5. Start the engine and perform running test, etc. to make sure that the troubles have been corrected.
