Alignment: Testing and Inspection

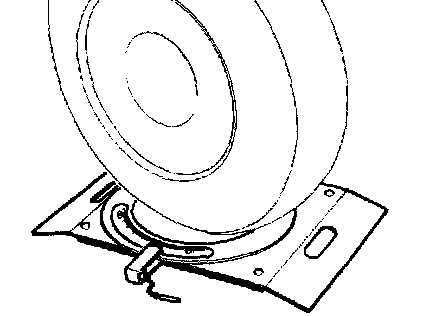

1. Set front wheels on turning radius gauge and measure steering angle.

Standard values:
[FWD]
Inner wheel 33° 45' ± 2'
Outer wheel [reference value] 28° 21'
[AWD]
Inner wheel 31° 45' ± 2'
Outer wheel [reference value] 27° 10'

2. When not within the standard value, it is probably a toe problem. Adjust toe and recheck.
