Rear

CAMBER

Standard value: 0° ± 30'

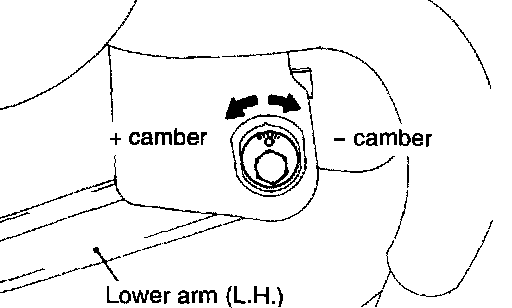

To adjust camber, turn the lower arm mounting bolt (crossmember side).

NOTE:
- Make the adjustment with the assist link mounting bolt (crossmember side) loosened.
- The difference between the right and left wheels should be 30' or less.
- Left wheel: Clockwise ((-) camber)
- Right wheel: Clockwise ((+) camber)
- One graduation changes camber by about 15'.

TOE-IN

Standard value: 0.5 ± 2.5 mm (0.01 ± 0.09 inch)

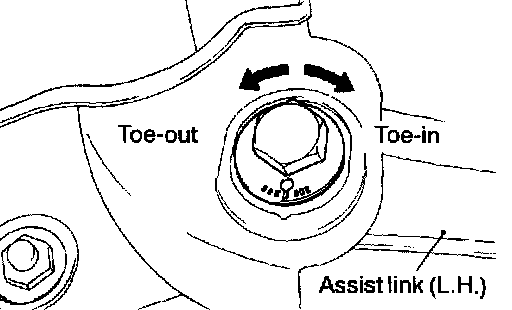

To adjust toe, turn the assist link mounting bolts (on crossmember side) on both sides the same amount.

NOTE:
- The difference between right and left wheels should be 3 mm (0.12 inch) or less.
- Left wheel: Clockwise (toe-in)
- Right wheel: Clockwise (toe-out)
- One graduation changes toe by about 4.8 mm (0.19 inch) [equivalent to toe angle 27' on one side].





CAUTION:

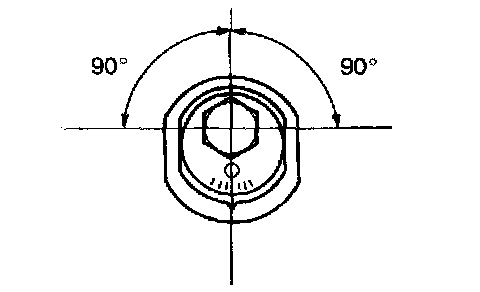

- Adjust the eccentric bolt within 90° from the central position.
- Adjust camber and toe, in that order, and, if camber is adjusted, be sure to adjust toe also.
