Compressor Check

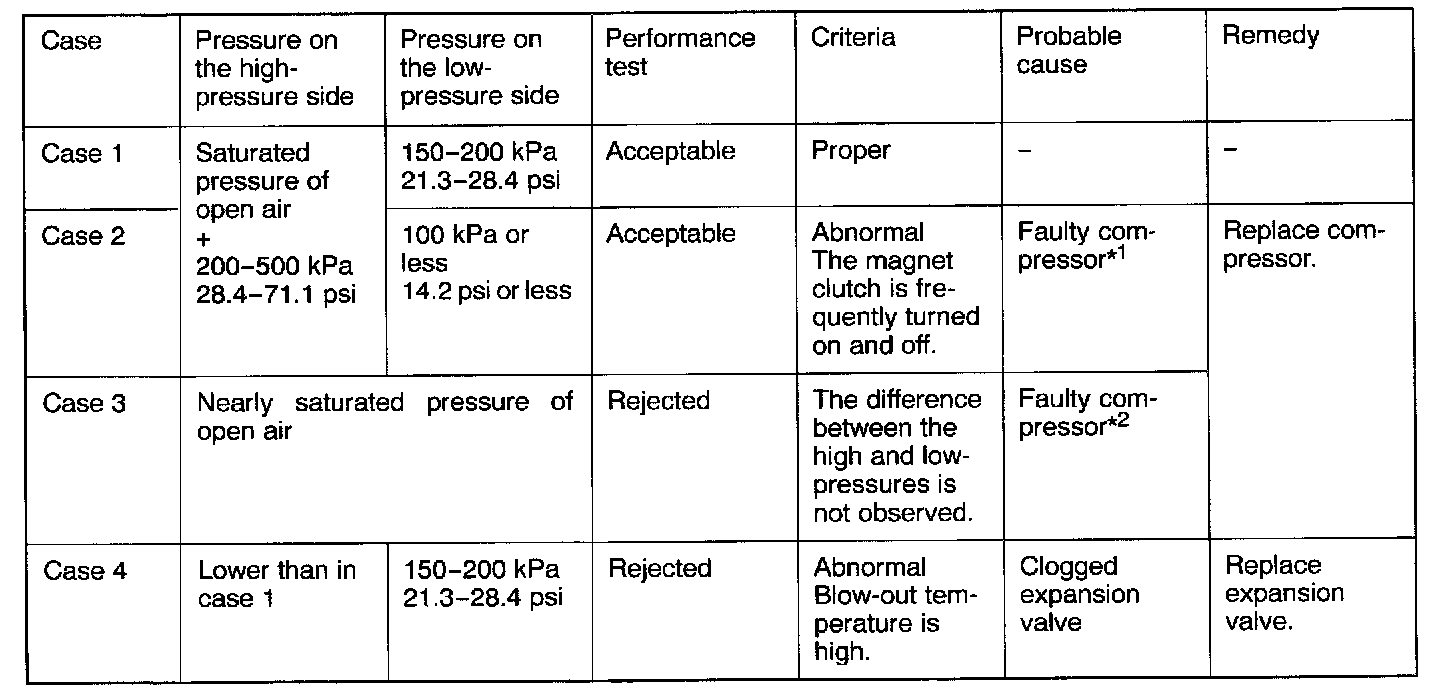

After running the compressor for five minutes, check whether the following items are proper or not.

NOTE:

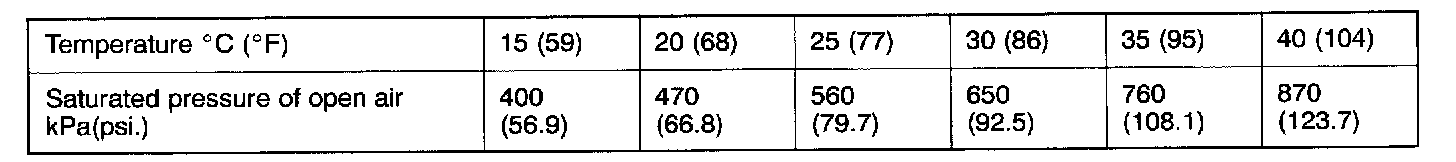

1. Saturated pressure of open air




2. For the performance testing procedure, refer Performance Test.
3. *1 means that the compressor is locked in the full load state (100% delivery).
4. *2 means that the compressor is locked in the full capacity control (delivery rate: 0) state.
