Engine Control Module

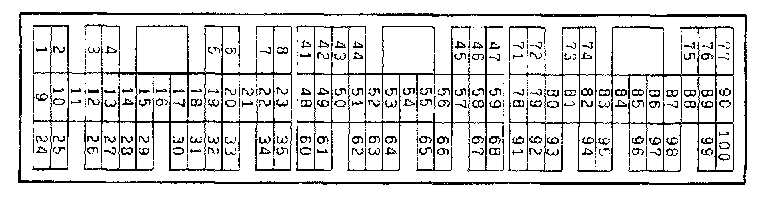

Connectors:

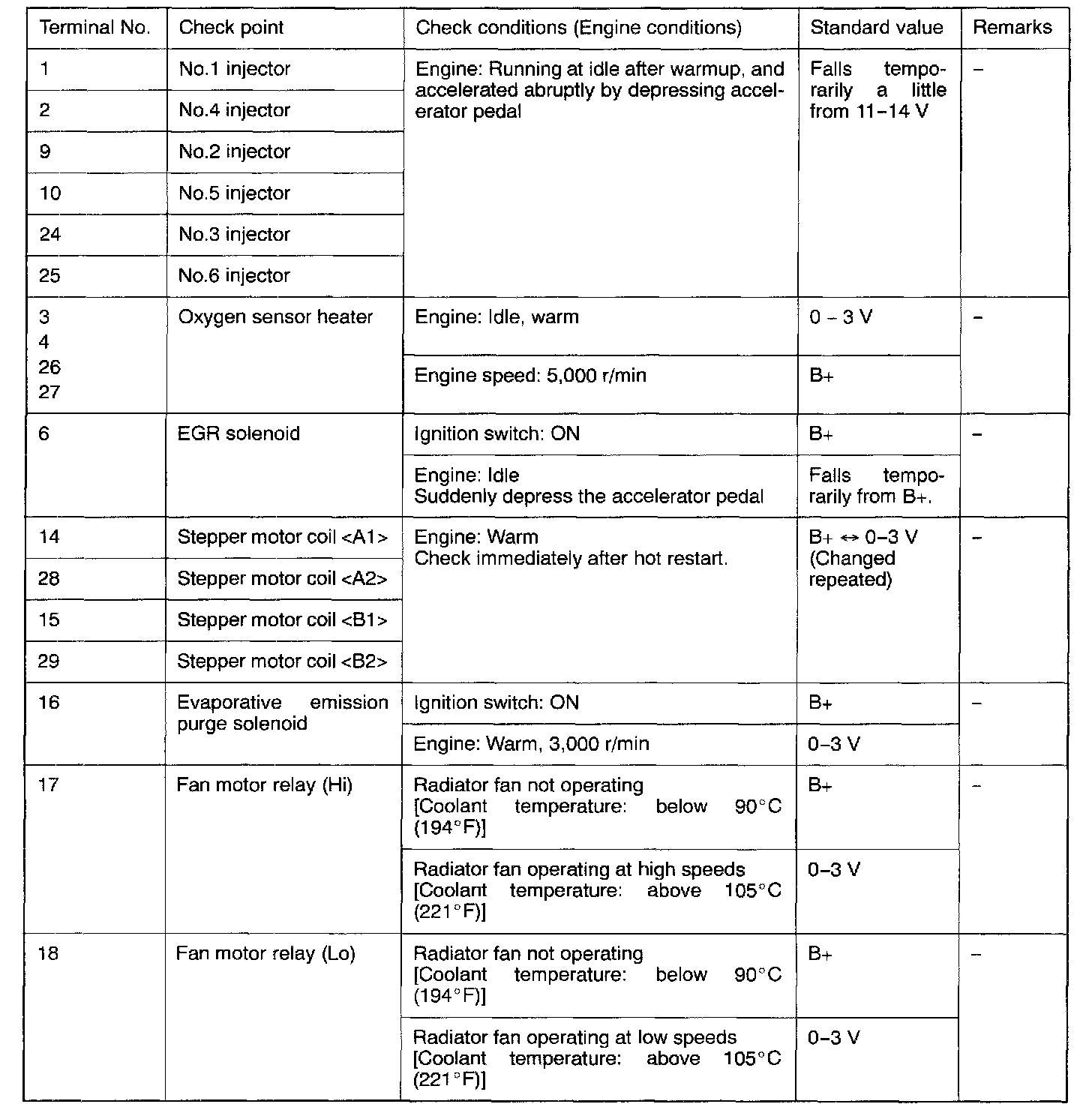

Terminals 1 - 18:

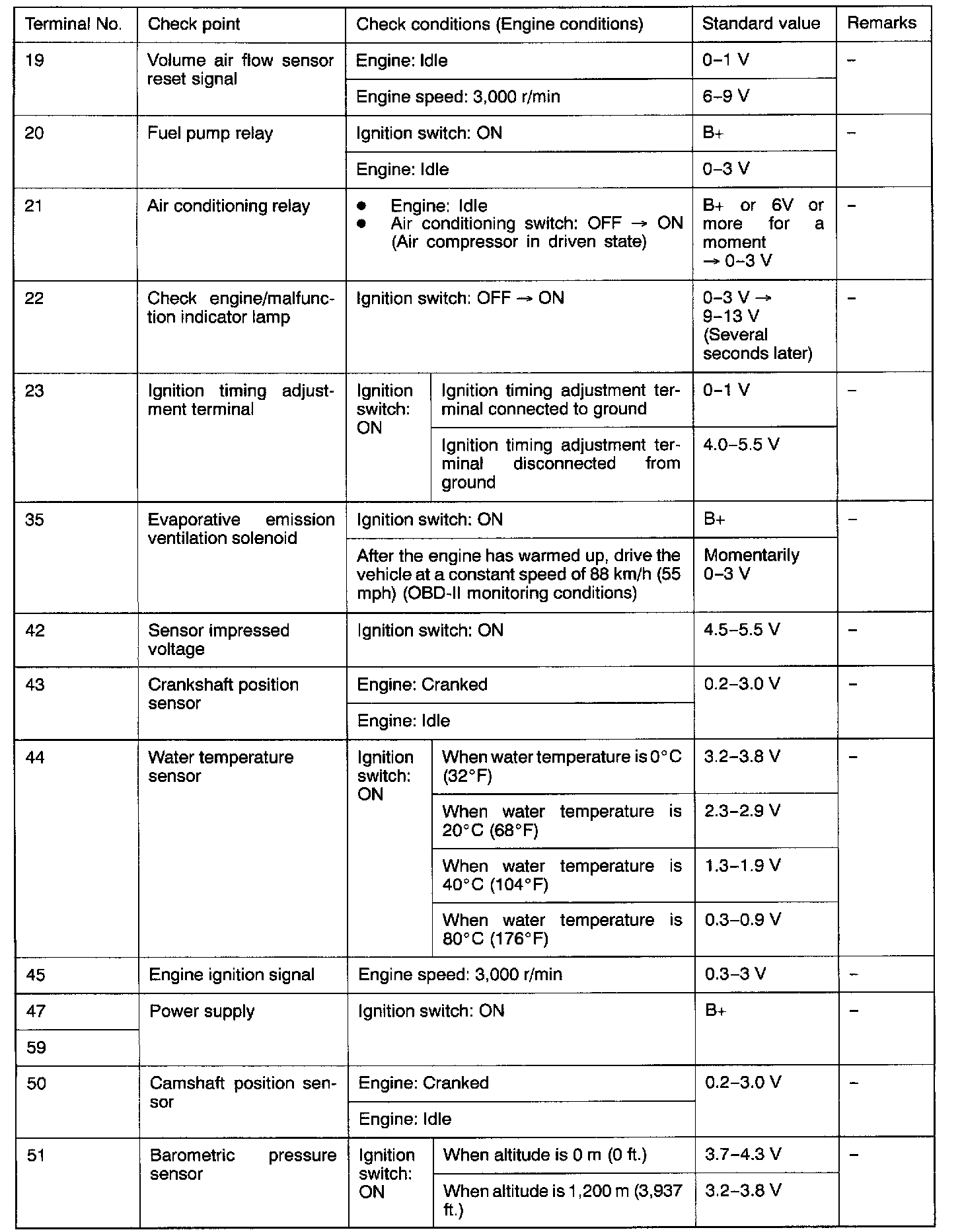

Terminals 19 - 51:

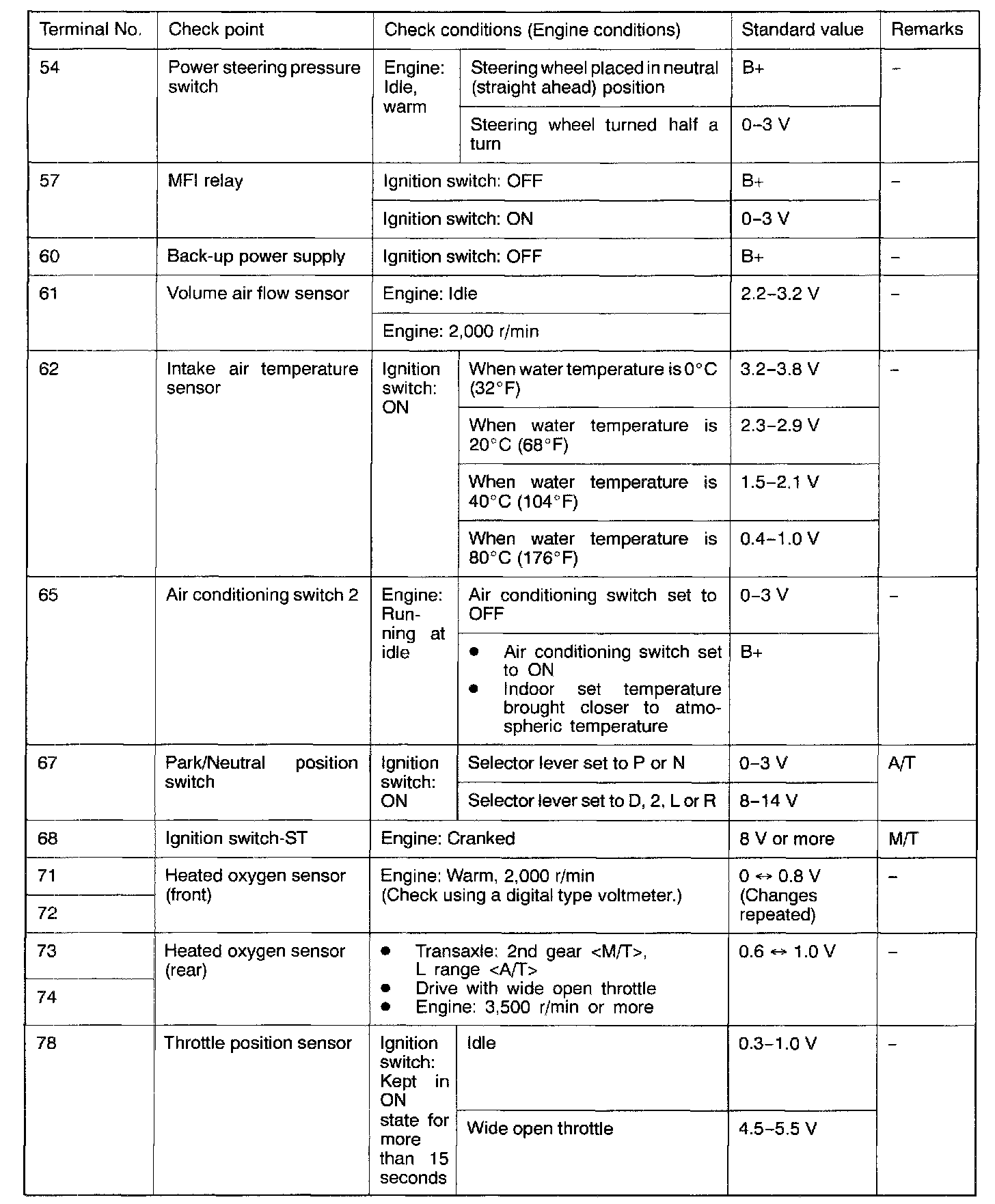

Terminals 54 - 78:

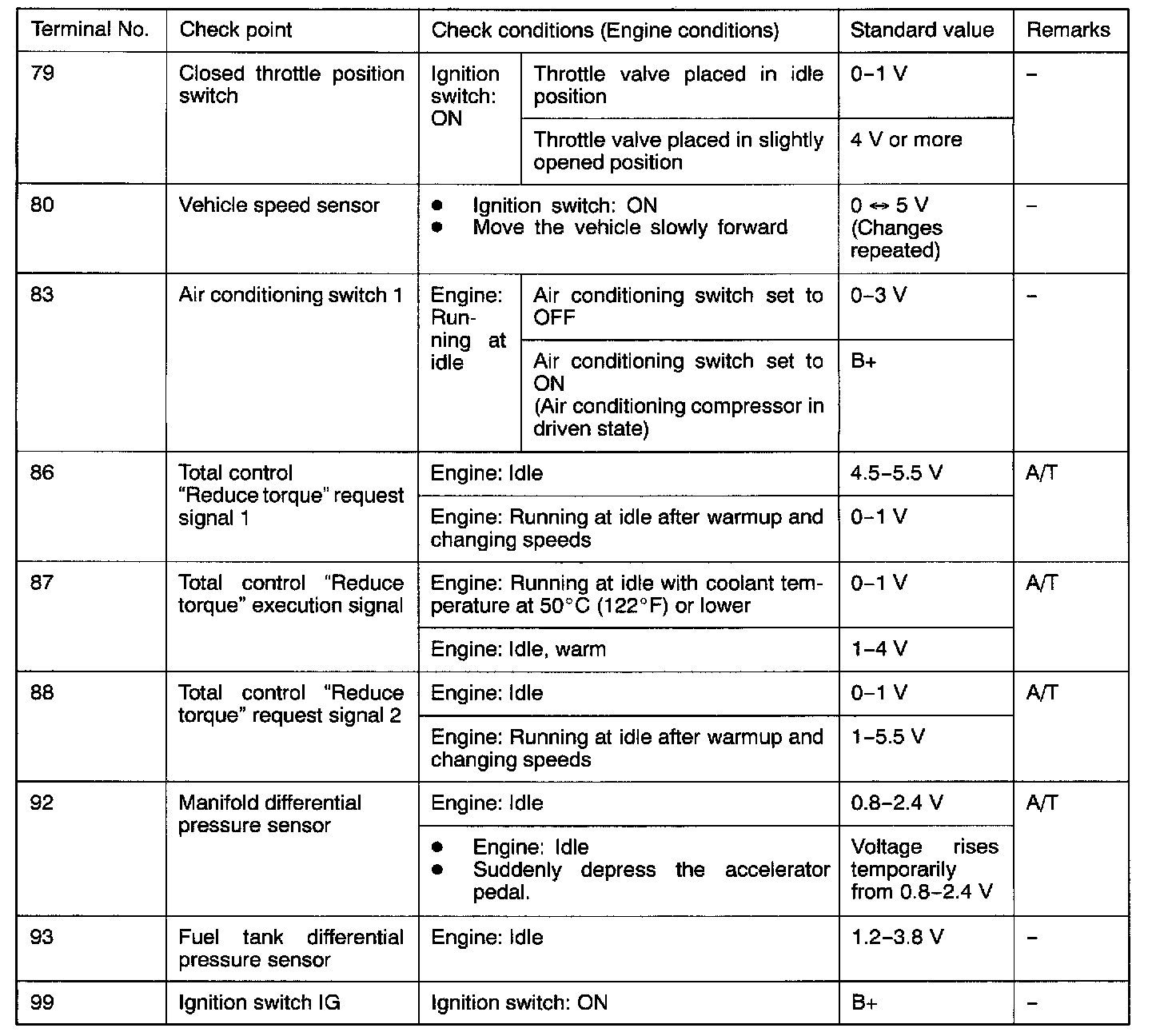

Terminals 79 - 99:
