Quarter Window Glass: Adjustments

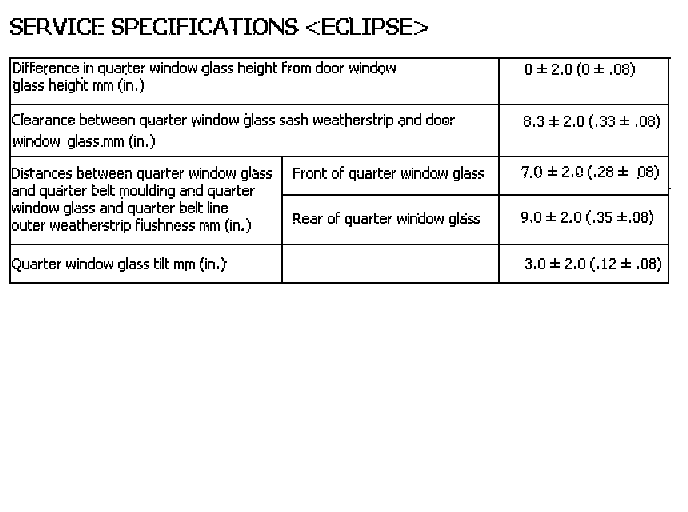

ADJUSTMENT SPECIFICATIONS
QUARTER WINDOW GLASS ADJUSTMENT
NOTE: Ensure door glass is adjusted properly.
1. Remove the quarter trim, lower.
2. Check that the quarter window glass moves up and down smoothly. Non-smooth operation may be caused by improper adjustment, defective quarter window motor, or binding quarter window guide assembly.
3. After completely opening the electric convertible top, completely raise the door window glass and quarter window glass.
4. Measure gaps, check for sealing quality (wet glass and look for at least 12.7 mm (0.50 in.) wide seal all glass-to-seal locations), check tilt before and after completing each adjustment.
5. Before proceeding with these adjustments,
a. Mark each adjusting stud bolt prior to loosening.
NOTE: Scratch around adjusting stud bolt as point of reference after starting to adjust window.
b. Loosen one adjusting stud boltnut at a time.
6. Lower the quarter window slightly, loosen the up-stop installation bolt(s).

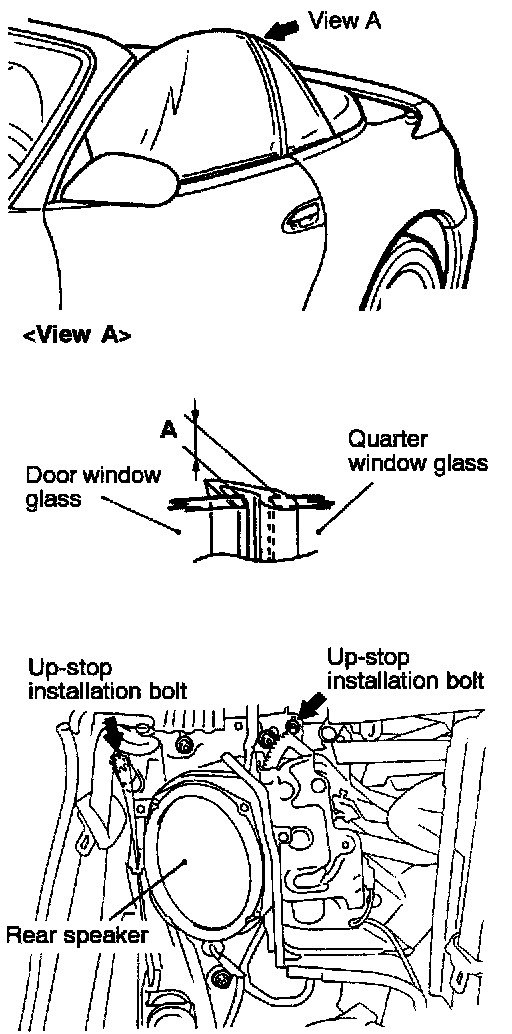

7. Adjust using the up-stop installation bolts so that the difference in the quarter window glass height from the door window glass height is at the standard value.
Standard value (A): 0 ± 2.0 mm (0 ± 0.08 in.)
NOTE: Any adjustment to the up-stop installation bolts affects front door glass gap (illustration A - A, A' - A').
8. Adjust using the up-stop installation bolts so that the clearance between the quarter window glass sash weather strip and the door window glass is at the standard value.
Standard value (B): 8.3 ± 2.0 mm (0.33 ± 0.08 in.)
NOTE: If dimensions of section A - and A' - A' are adjusted, the height of the quarter window glass may be changed.Confirm the height of the quarter window glass again.(Refer to view A in the illustration.)
9. Measure the quarter window to front door gap 76.2 mm (3.0 in.) from the top of the door glass and 76.2 mm (3.0 in.) from the top of the front door. Adjust so that gap is same at both locations.
10. Open and close the front door several times after adjustment to ensure settings are good.

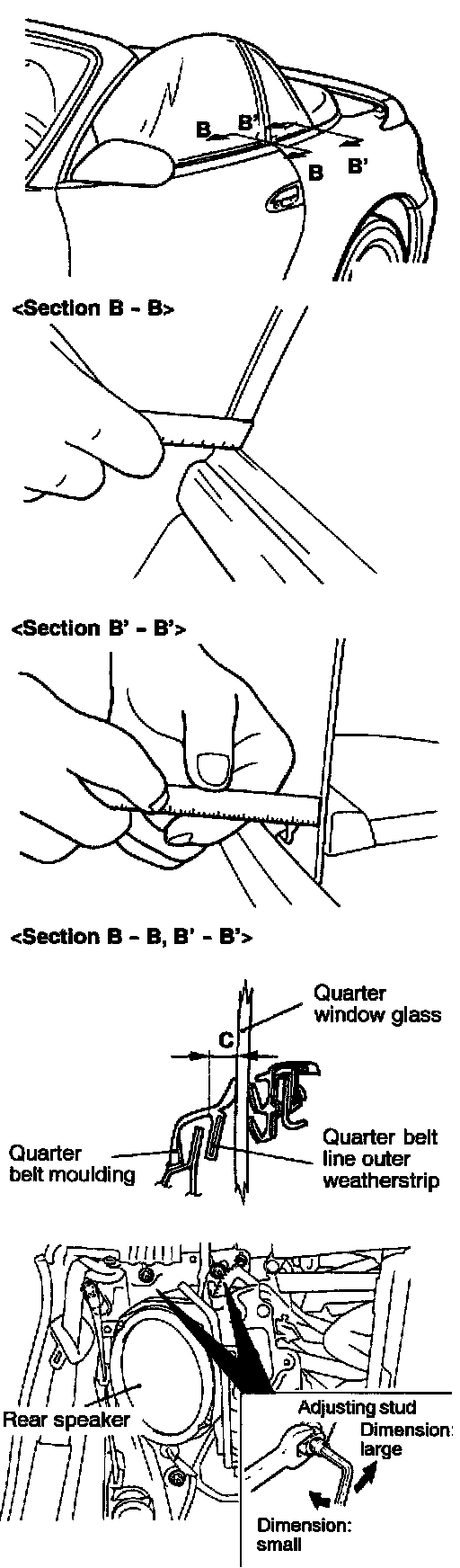

11. Adjust by the following procedure so that the distances between the quarter window glass and the quarter belt line outer weather strip flushness and between the quarter window glass and the quarter belt moulding are at the standard value.
Standard value (C):
7.0 ± 2.0 mm (0.28 ± 0.08 in.) [Section B-B]
9.0 ± 2.0 mm (0.35 ± 0.08 in.) [Section B'-B']
A. Loosen the 2 upper adjusting stud nuts.
B. Adjust the front adjusting stud first then the back adjusting stud to the specified value.
C. Loosen the lower adjusting stud nut.

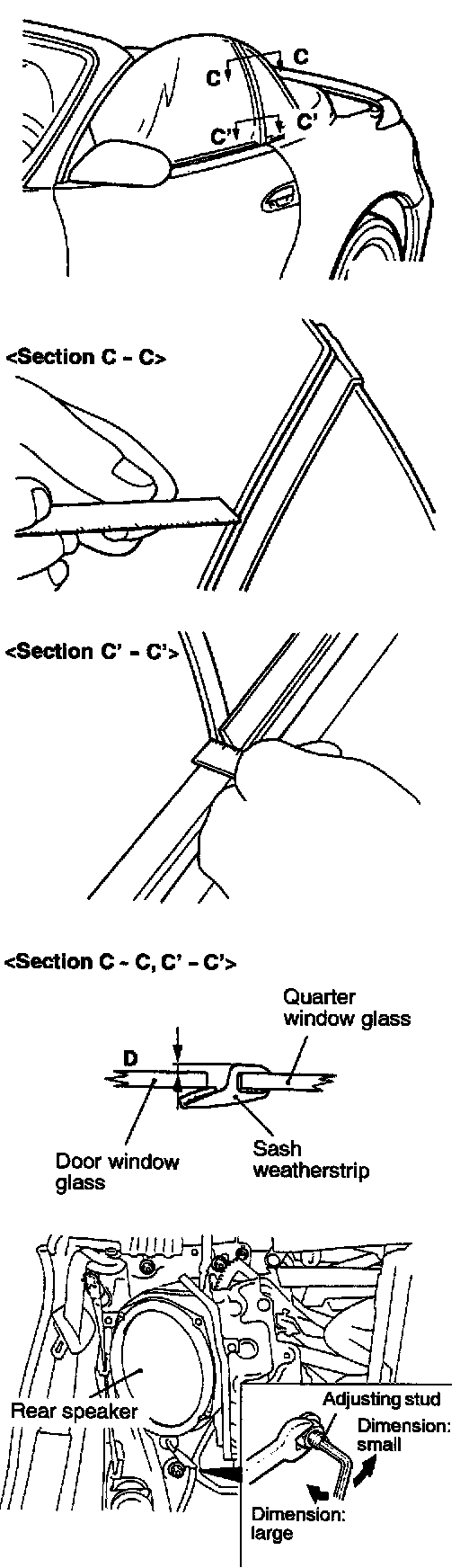

D. With the lower adjusting stud adjust the quarter window glass tilt so that the quarter window glass sash weather strip is at the standard value. If not within the standard value, additional adjustment to the upper adjusting studs may be necessary.
Standard value (D): 3.0 ± 2.0 mm (0.12 ± 0.08 in.)
E. Tighten the 2 upper adjusting stud nuts to the specified torque value. Tighten the lower adjusting stud nut to the specified torque value.
CAUTION: Hold the adjusting stud in place while tightening any adjusting stud nut.
Specified torque: 28 Nm (20 ft.lbs.)
F. Open and close door several times. Raise and lower quarter window several times. Recheck gap. Readjust as necessary.
12. Close the convertible top completely. Check that the quarter window glass enters the slit on the rear rail weather strip smoothly when the quarter windows are raised.
13. Recheck all measurements. Adjustment to any of the adjusting devices will affect other settings.
14. Check for sealing quality (wet glass and look for at least 12.7 mm (0.50 in.) wide seal all glass-to-seal locations.)
15. Install the quarter trim, lower
