Vehicles With Keyless Entry System

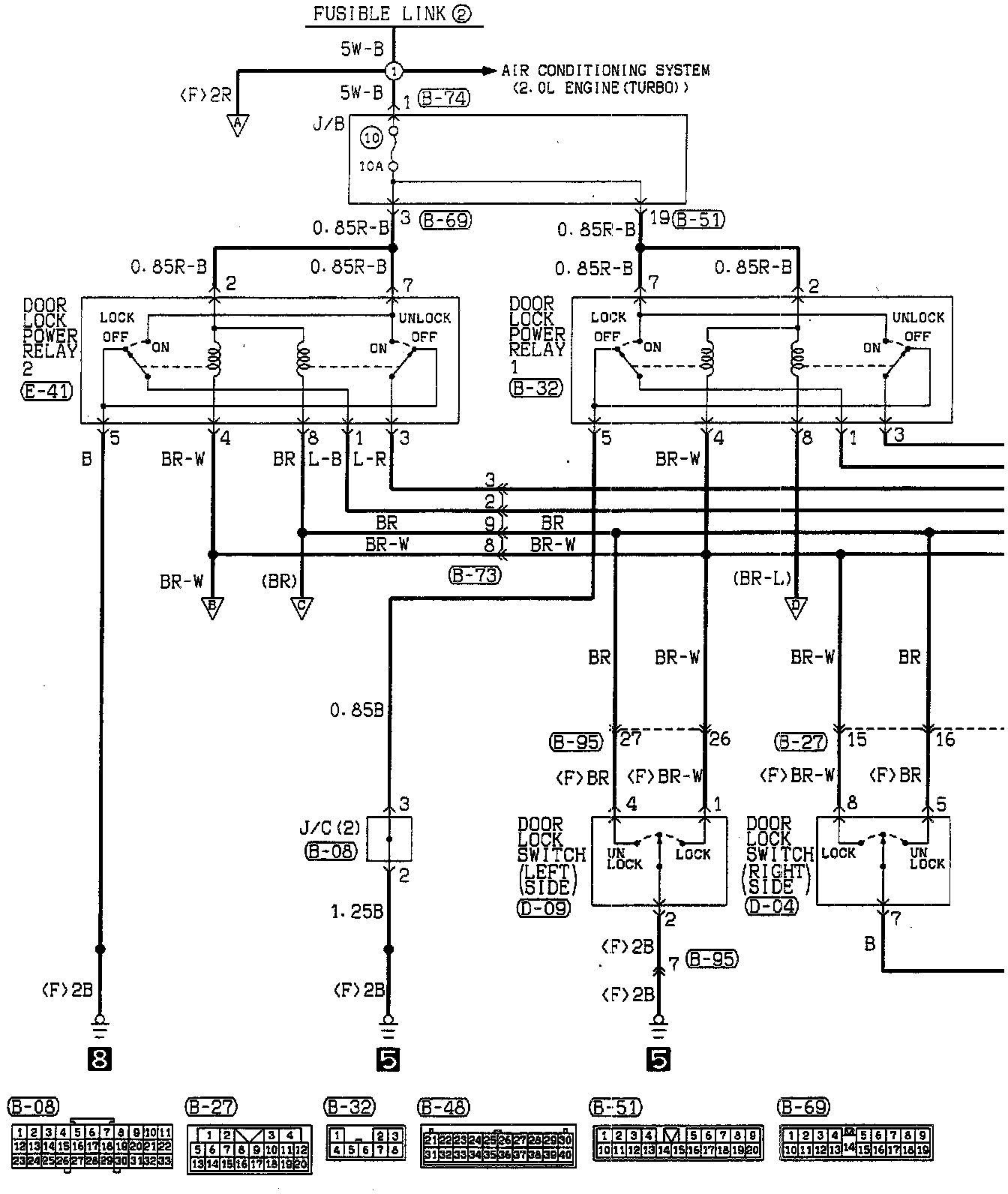

Central Door Locking System <vehicles With Keyless Entry System> (Part 1 Of 6):

Door Lock Power Relay 1 & 2
Door Lock Switch (Left & Right Side)
J/B
J/C (2)

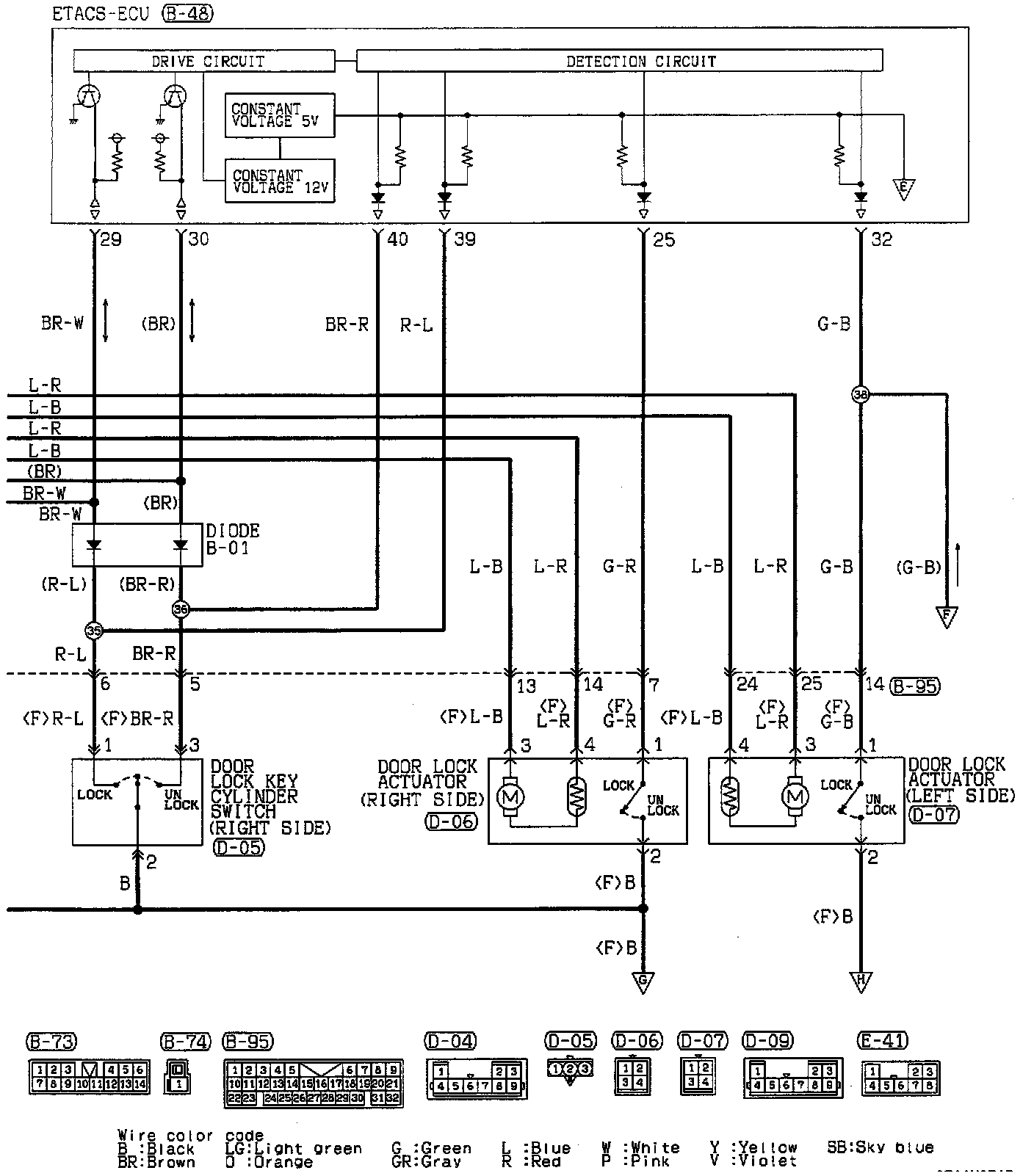

Central Door Locking System <vehicles With Keyless Entry System> (Part 2 Of 6):

Door Lock Actuator(Left & Right Side)
Door Lock Key Cylinder Switch (Right Side)
Diode B-01
ETACS-ECU

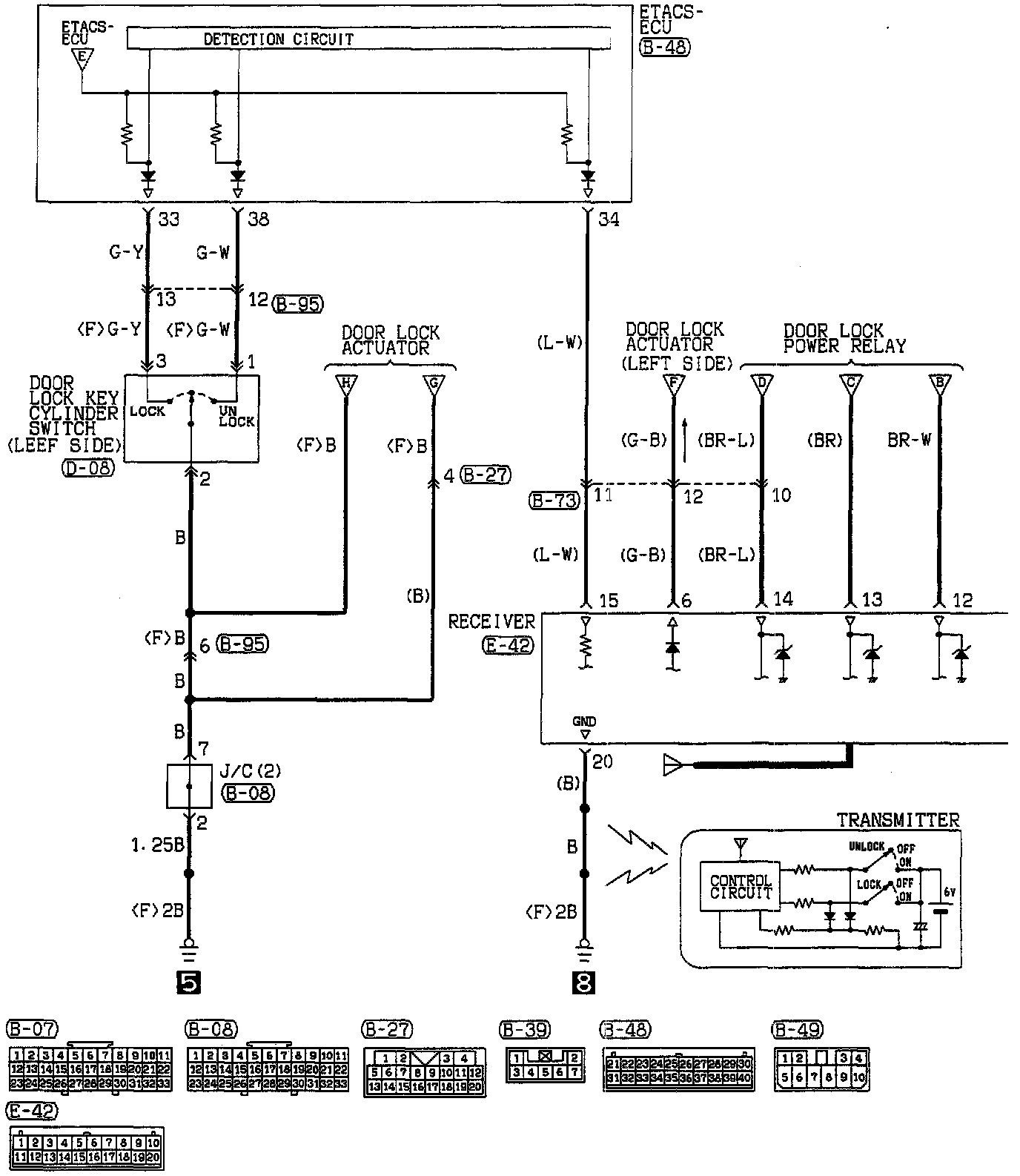

Central Door Locking System <vehicles With Keyless Entry System> (Part 3 Of 6):

Door Lock Key Cylinder Switch(Left Side)
ETACS-ECU
J/C (2)
Receiver
Transmitter
- Control Circuit

Central Door Locking System <vehicles With Keyless Entry System> (Part 4 Of 6):

Dedicated Fuse
Foot Light (Left & Right Side)
J/B
J/C (1)
Key Reminder Switch(When Key Is Removed)
Receiver

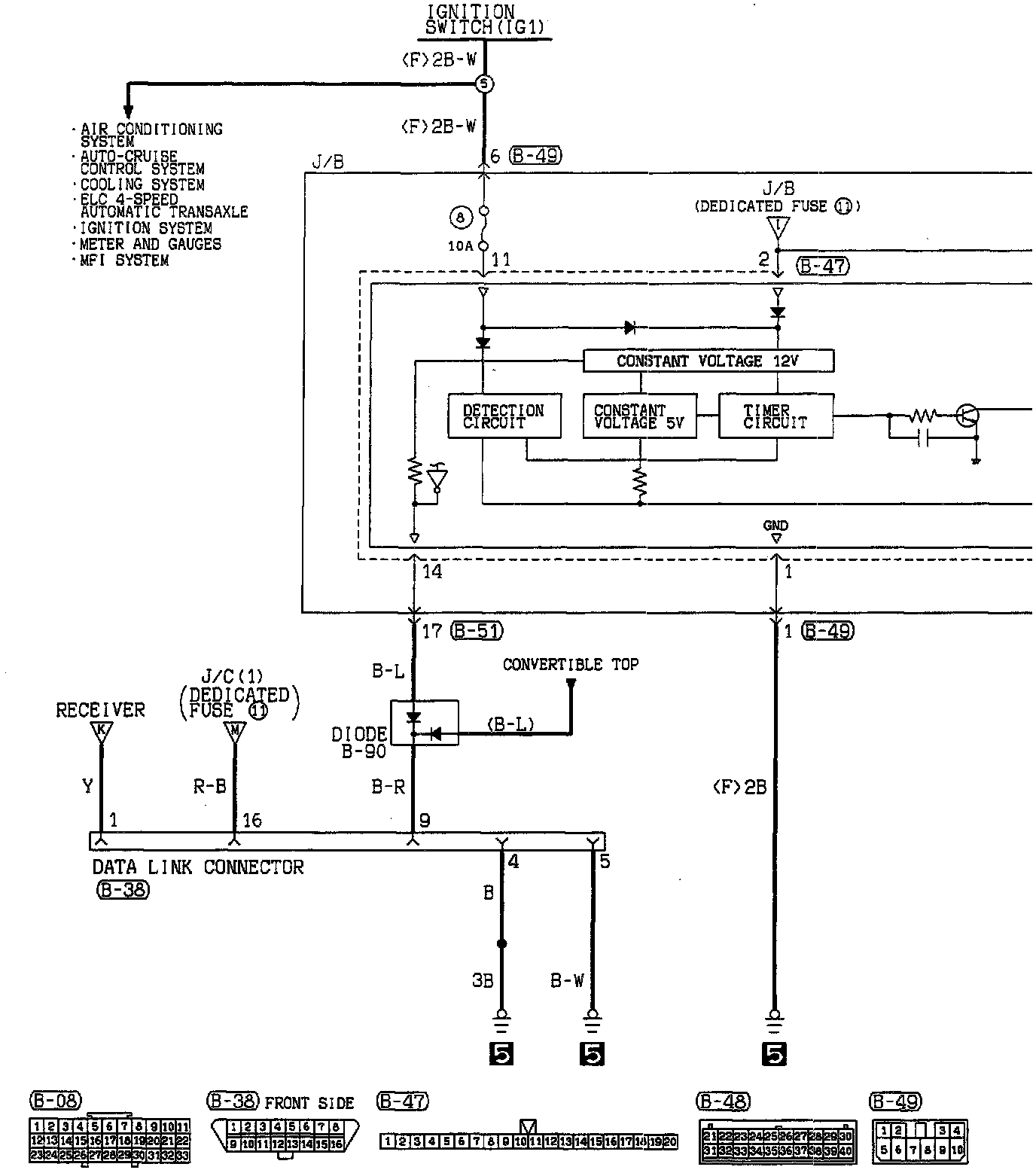

Central Door Locking System <vehicles With Keyless Entry System> (Part 5 Of 6):

Data Link Connector
Diode B-90
J/B

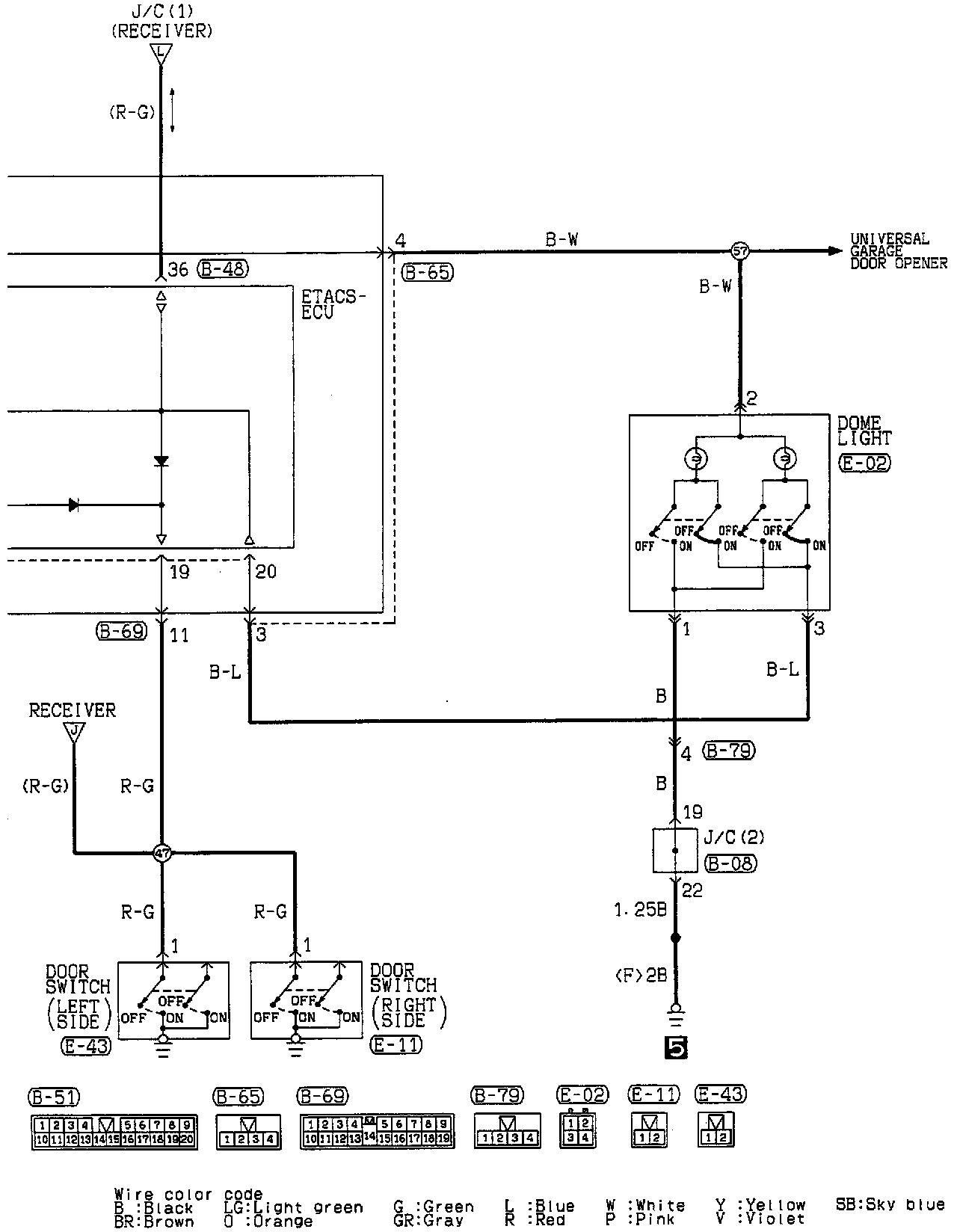

Central Door Locking System <vehicles With Keyless Entry System> (Part 6 Of 6):

Door Switch(Left & Right Side)
Dome Light
J/B
- ETACS-ECU
J/C (2)
