E Connectors - Interior Harness
E Connectors - Interior Harness

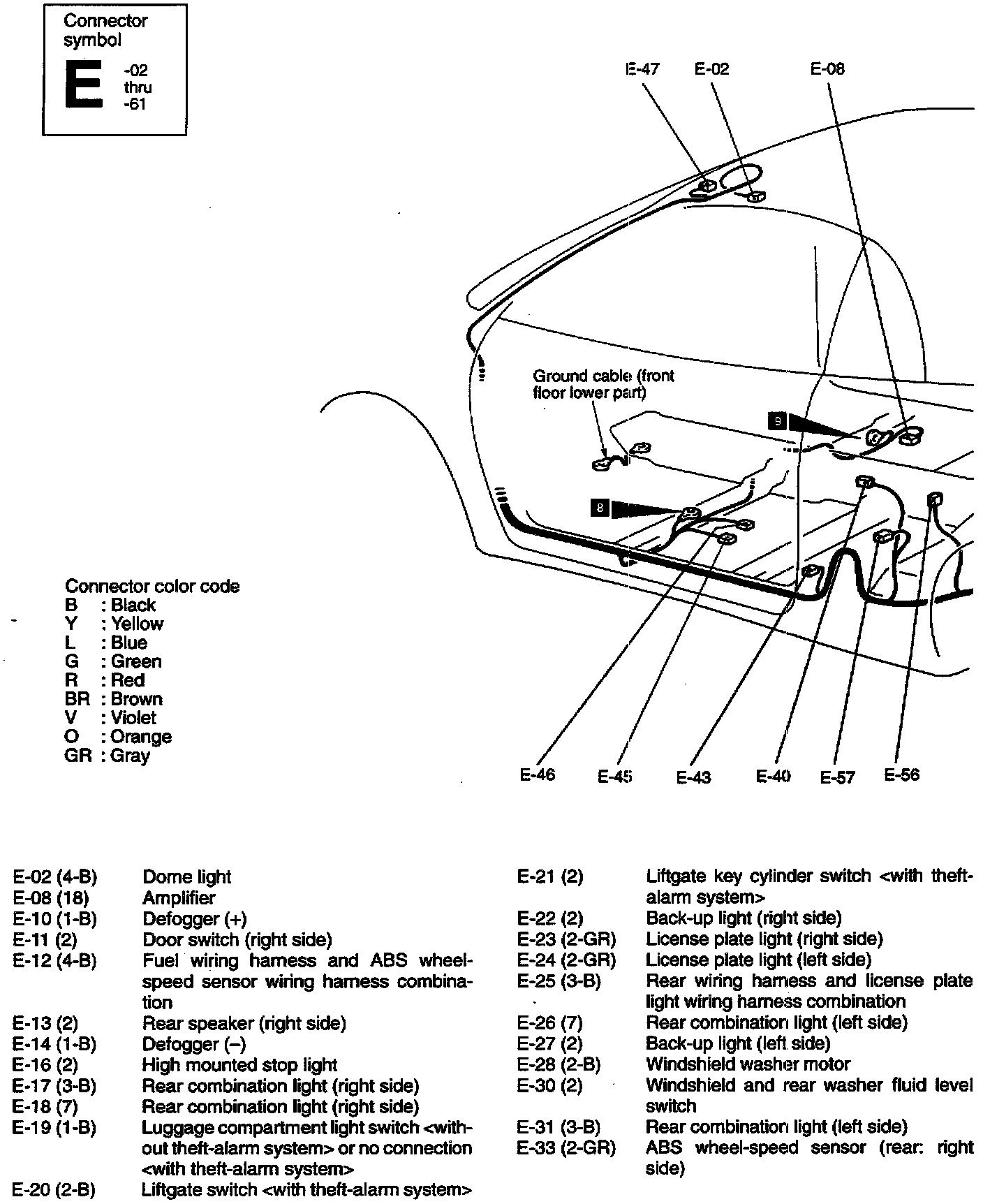

Interior E-02(4-B) Thru E-33(2-GR):

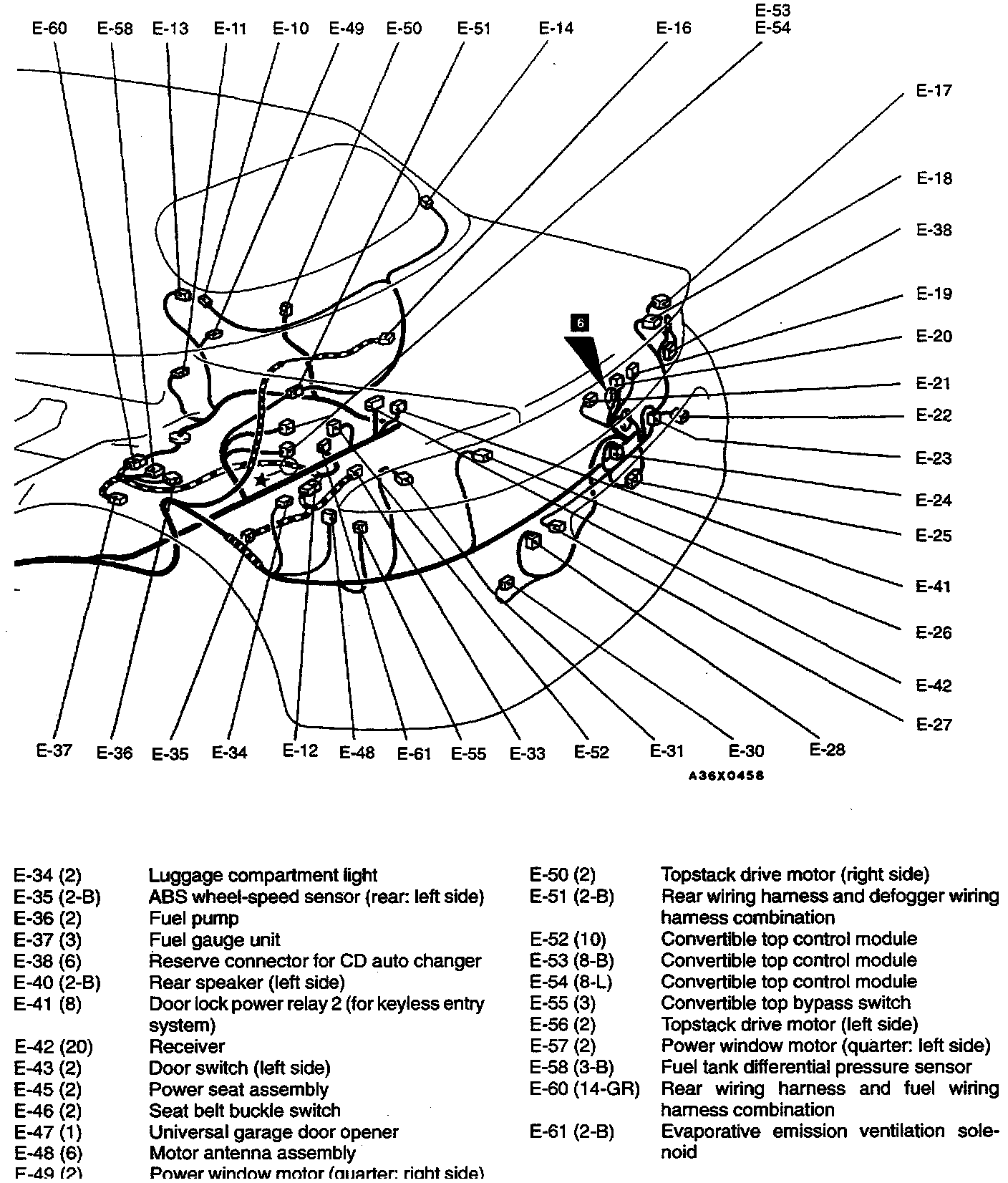

Interior E-34(2) Thru E-61(2-B):
