Automatic Transmission

REMOVAL AND INSTALLATION
Removal Service Point

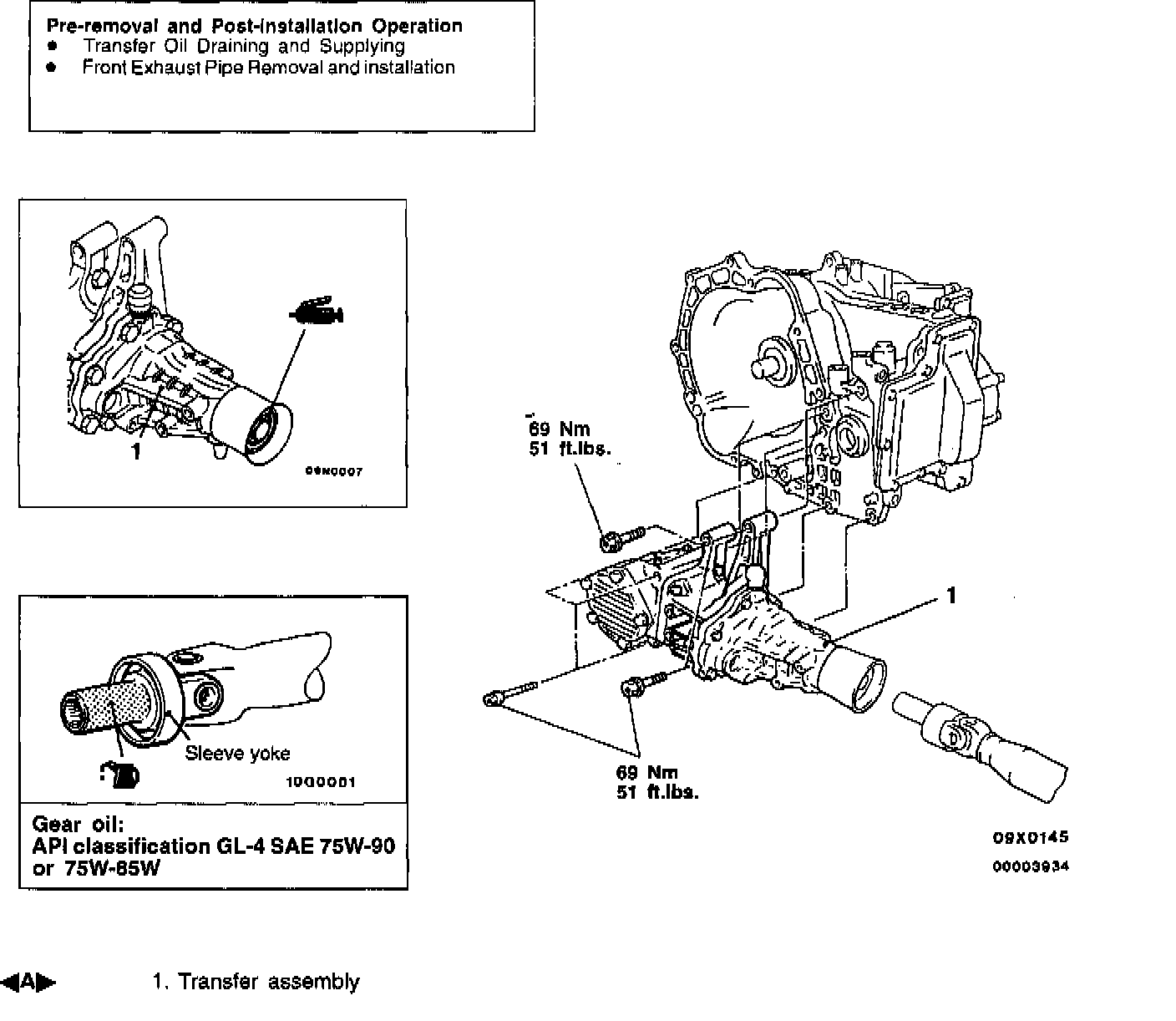

Transfer Assembly Removal

CAUTION:

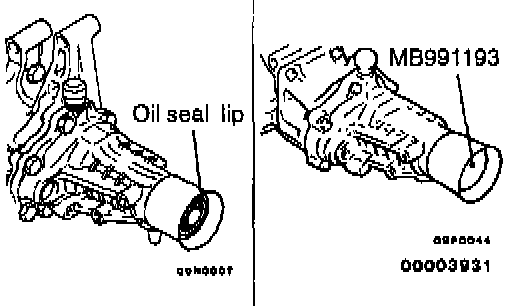

1. Do not damage the oil seal lip of the transfer.
2. Use the special tool to cover the transfer case to prevent oil from gushing out or foreign materials from getting into the transfer case.
