Transfer Case Disassembly and Reassembly

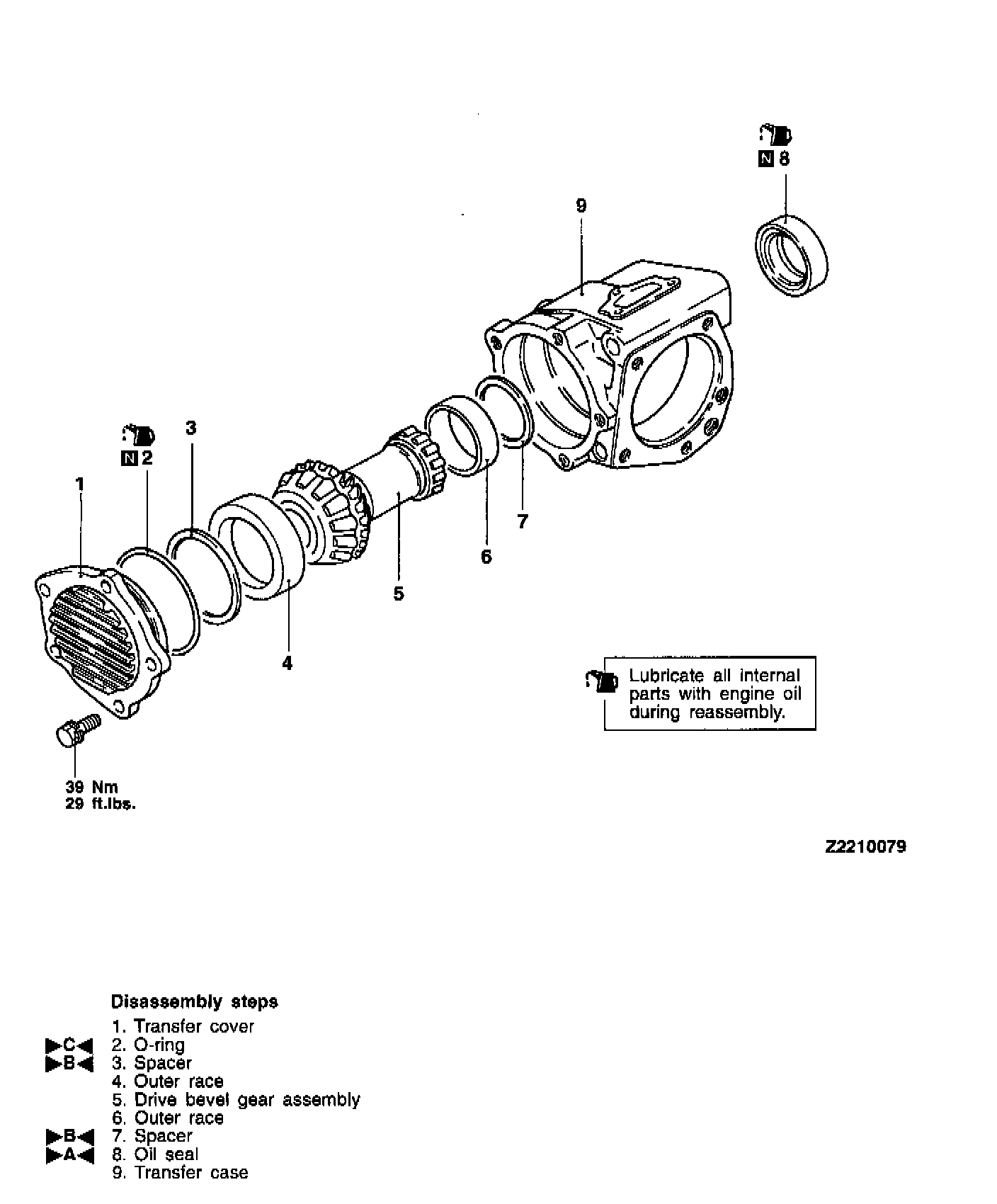

TRANSFER CASE DISASSEMBLY AND REASSEMBLY




Reassembly Service Points

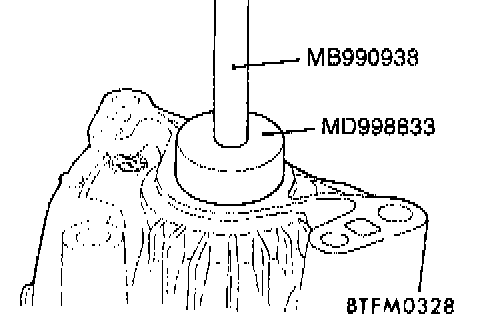

>A< Oil Seal Installation

>B< Spacer Selection





1. Use the existing spacer to assemble the transfer case.

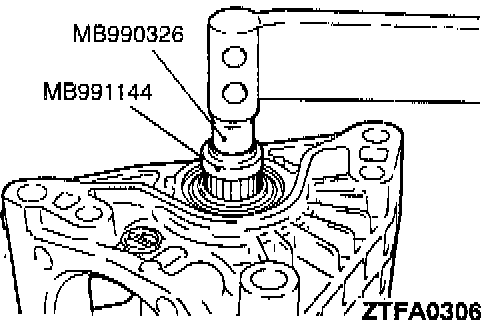

2. Using the special tool, check that the bevel gear rotating drive torque is within the standard value.

Standard value: 1.7 - 2.5 Nm (1.23 - 1.81 ft. lbs.)

3. If the rotating drive torque is outside of the standard value, adjust using adjusting spacers.

NOTE: For adjustment, use two spacers of which thickness is as close as possible to each other.

>C< O-Ring Installation

CAUTION: Apply transmission oil to the O-ring before installation.
