Drive Bevel Gear Disassembly and Reassembly

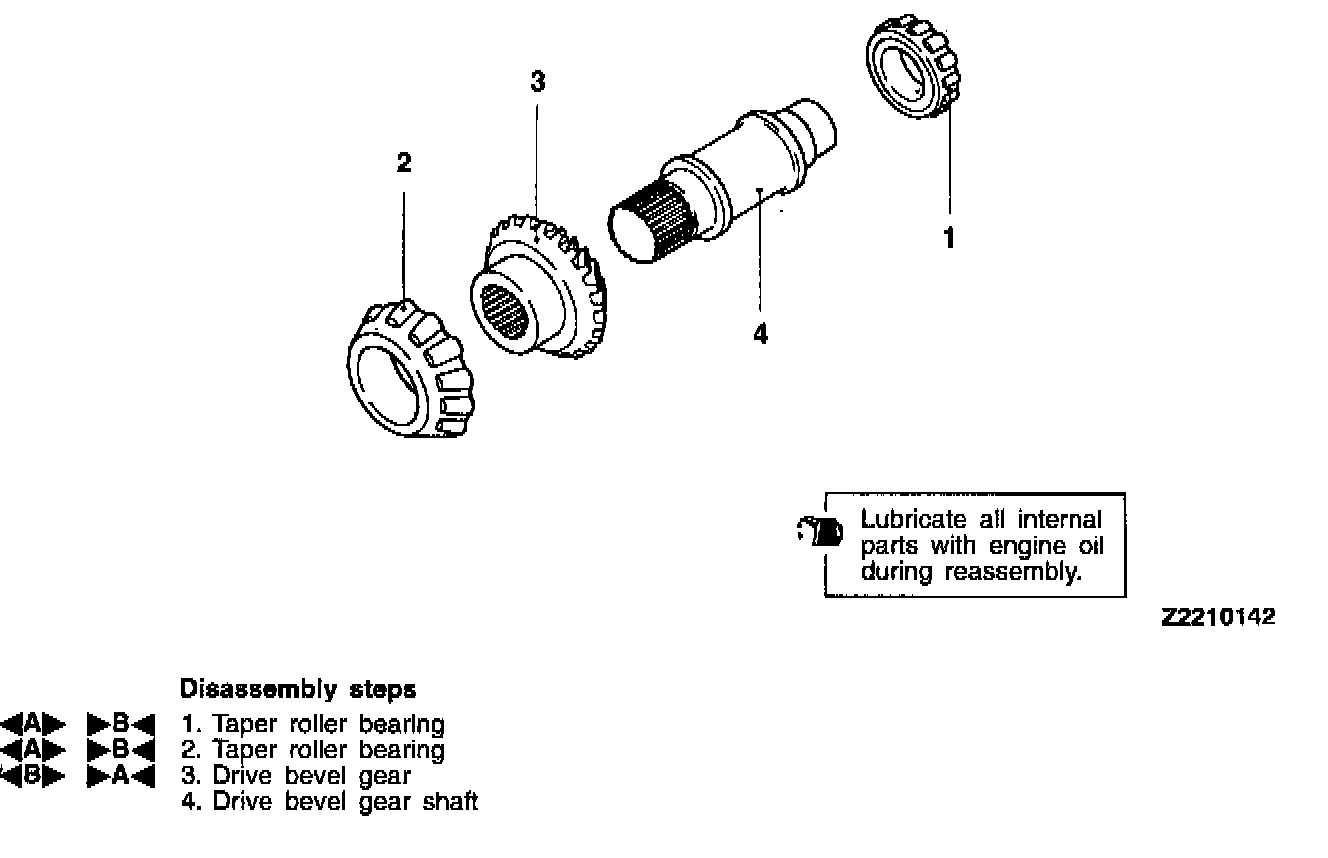

DRIVE BEVEL GEAR DISASSEMBLY AND REASSEMBLY
Disassembly Service Points

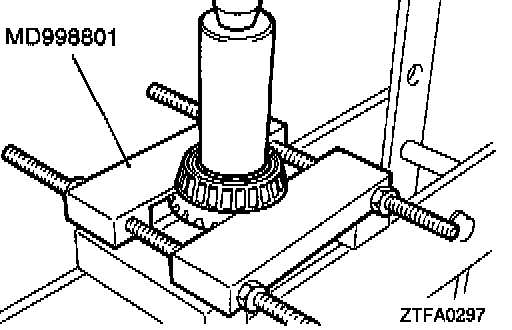

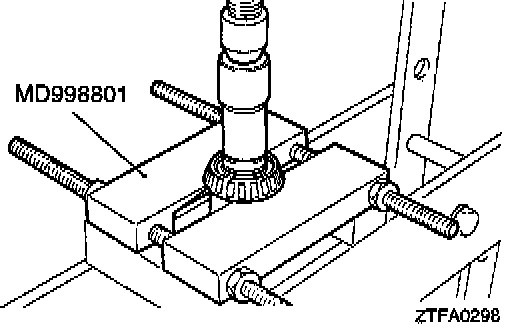

Taper Roller Bearing Removal

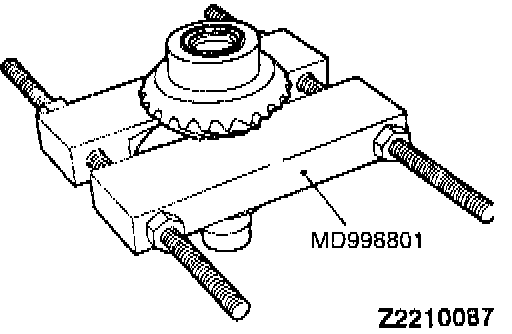

Drive Bevel Gear Removal
Reassembly Service Points

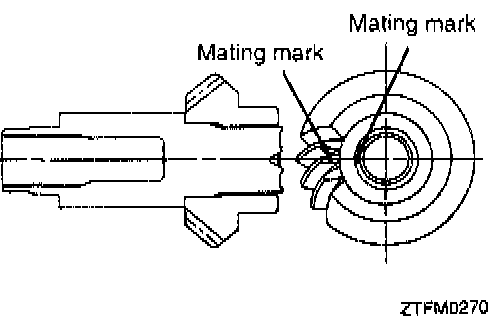

>A< Transfer Drive Bevel Gear Installation
Install the drive bevel gear and drive bevel gear shaft with the mating marks aligned.

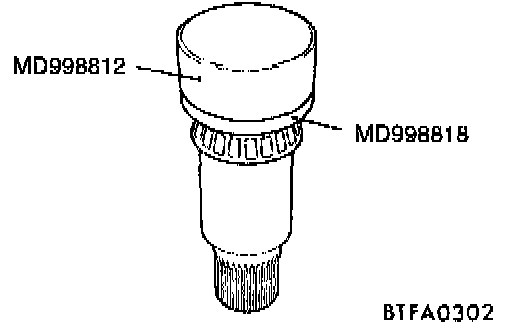

>B< Taper Roller Bearing Installation
