Extension Housing Disassembly and Reassembly

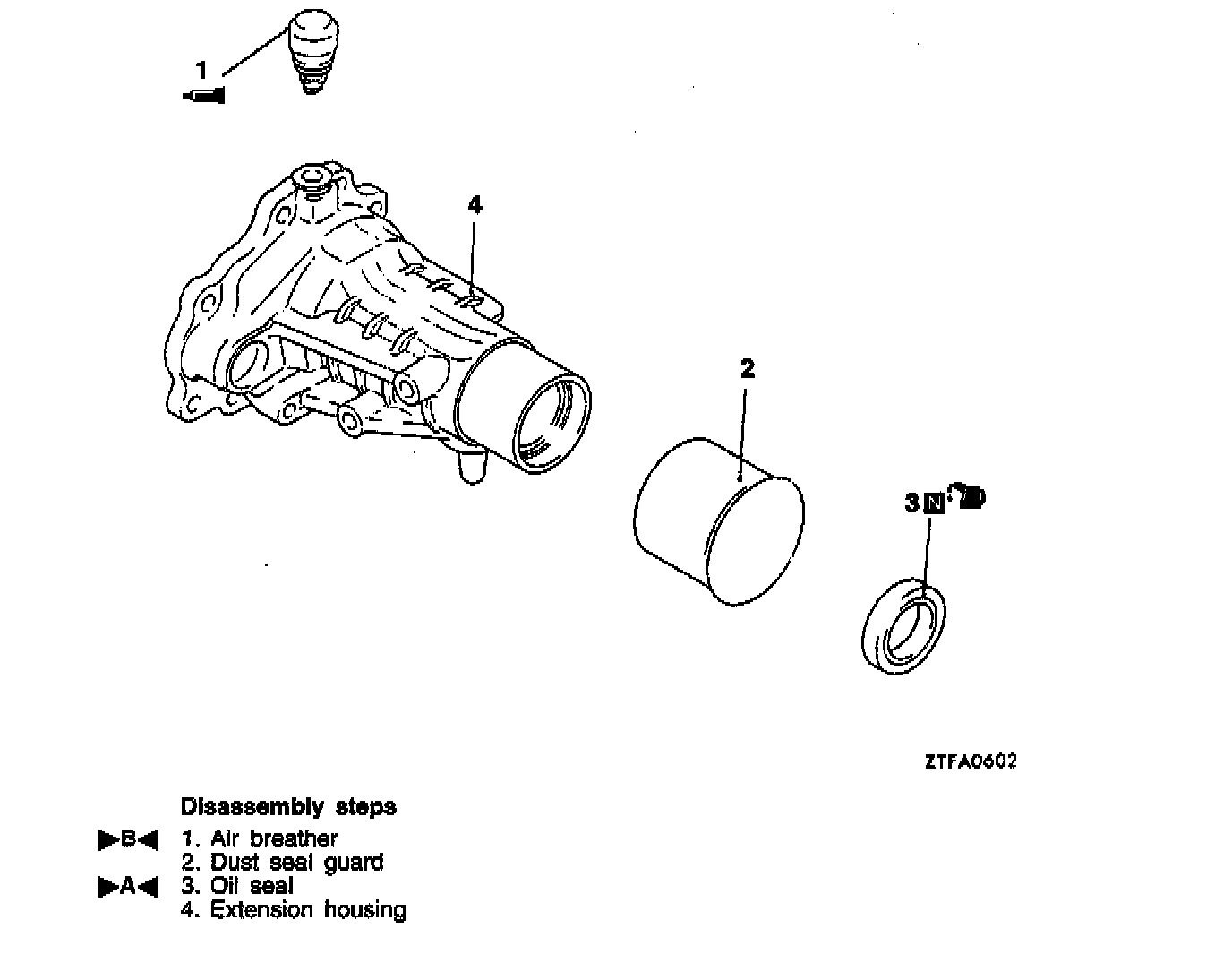

EXTENSION HOUSING DISASSEMBLY AND REASSEMBLY




Reassembly Service Points

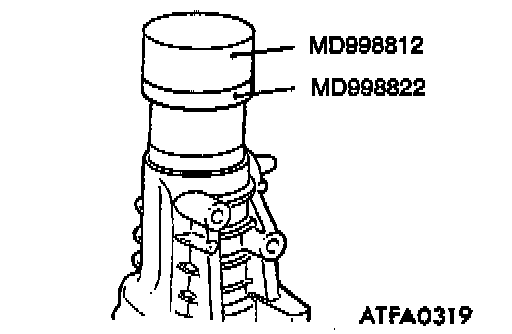

>A< Oil Seal Installation

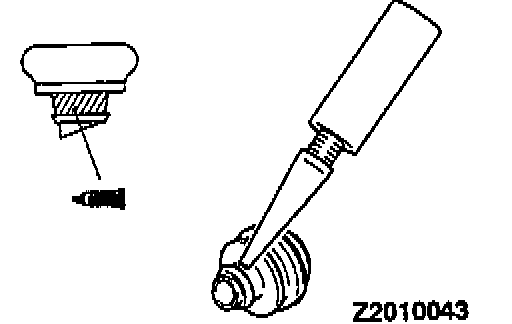

>B< Air Bleeder Installation





1. Apply sealant to the outer diameter of the air bleeder and install the air bleeder.

Specified sealant: 3M SUPER WEATHERSTRIP No. 8001 or equivalent
