Manual Transaxle Overhaul





SEALANTS AND ADHESIVES

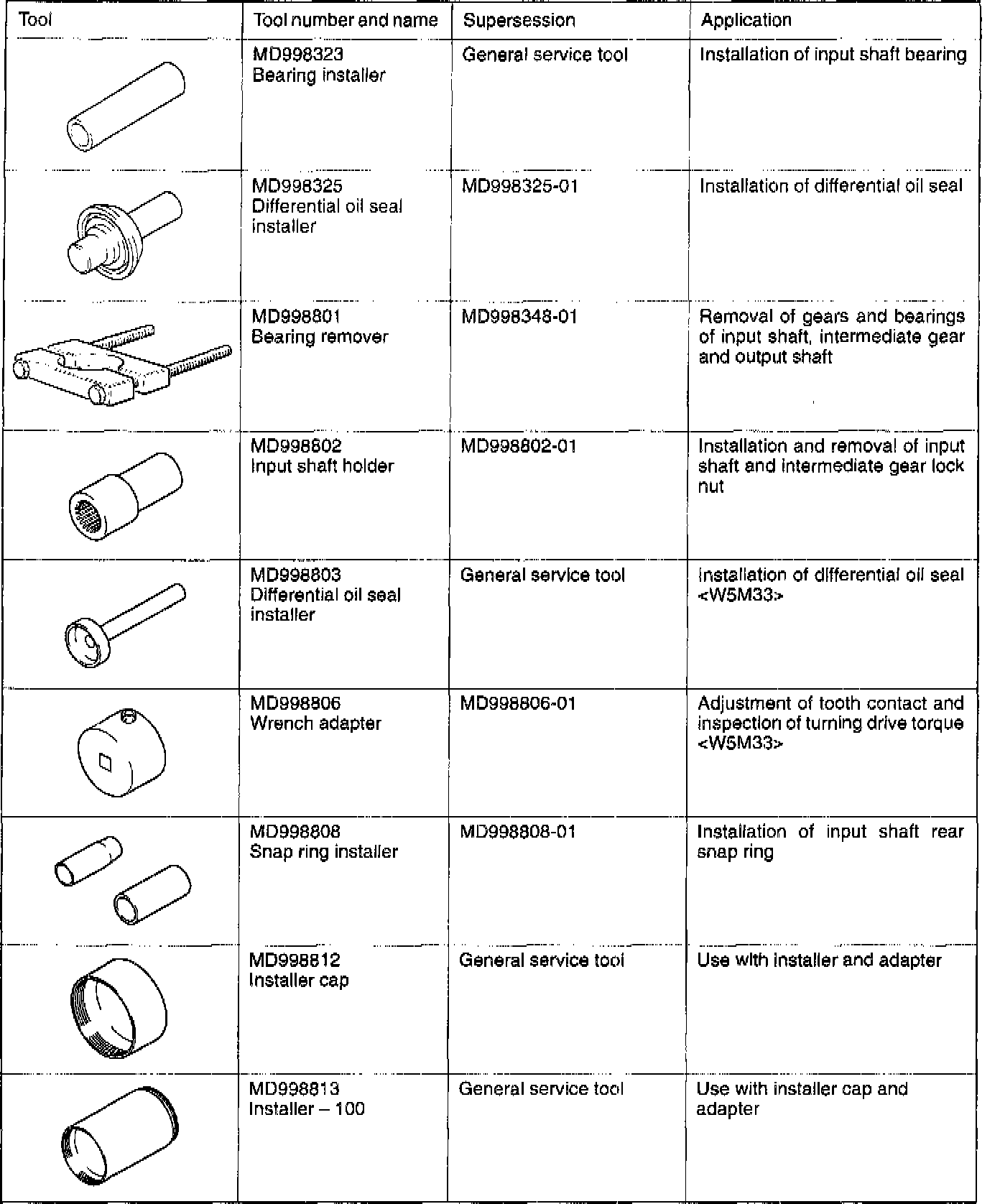

SPECIAL TOOLS PART 1 OF 4

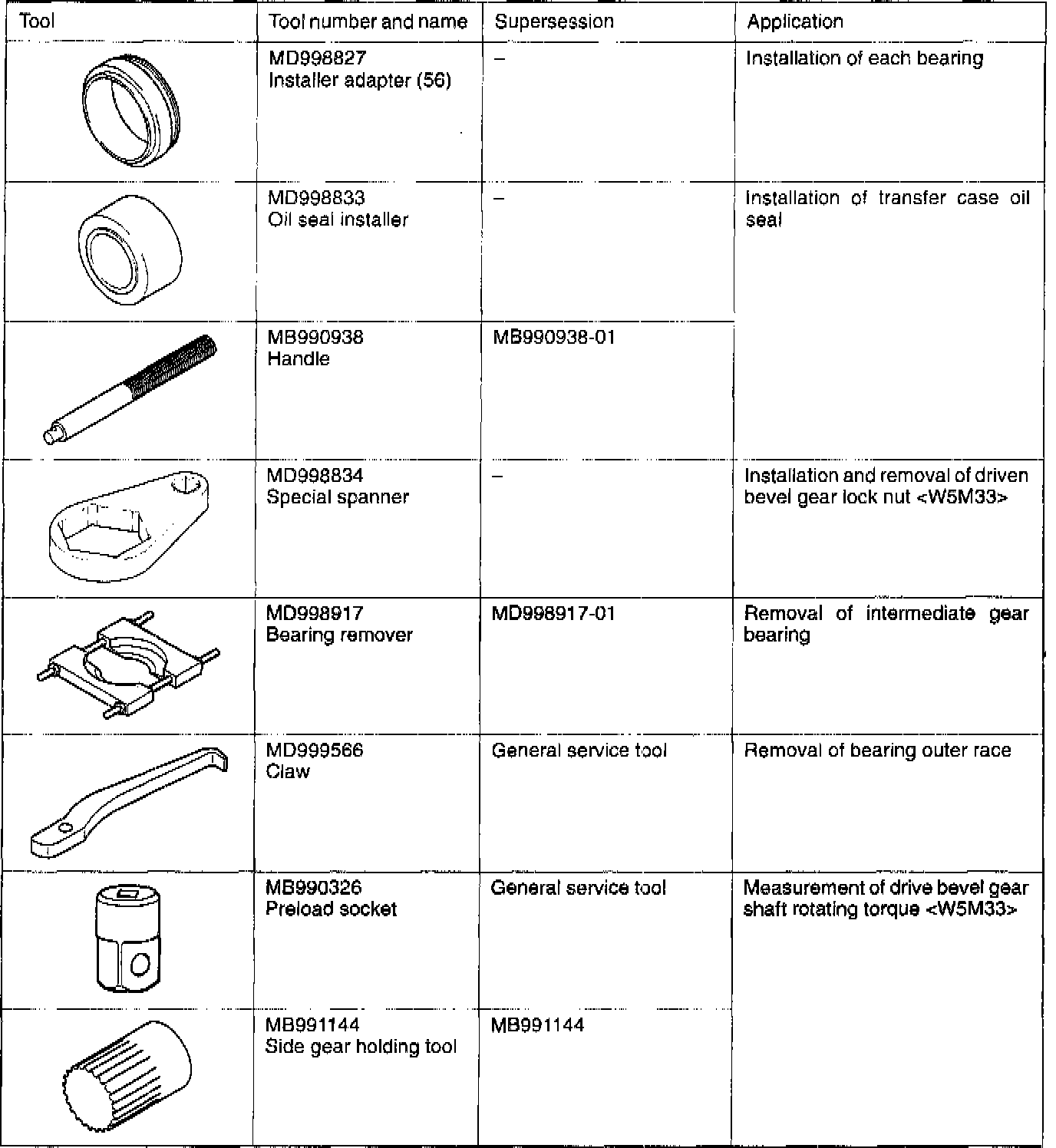

SPECIAL TOOLS PART 2 OF 4

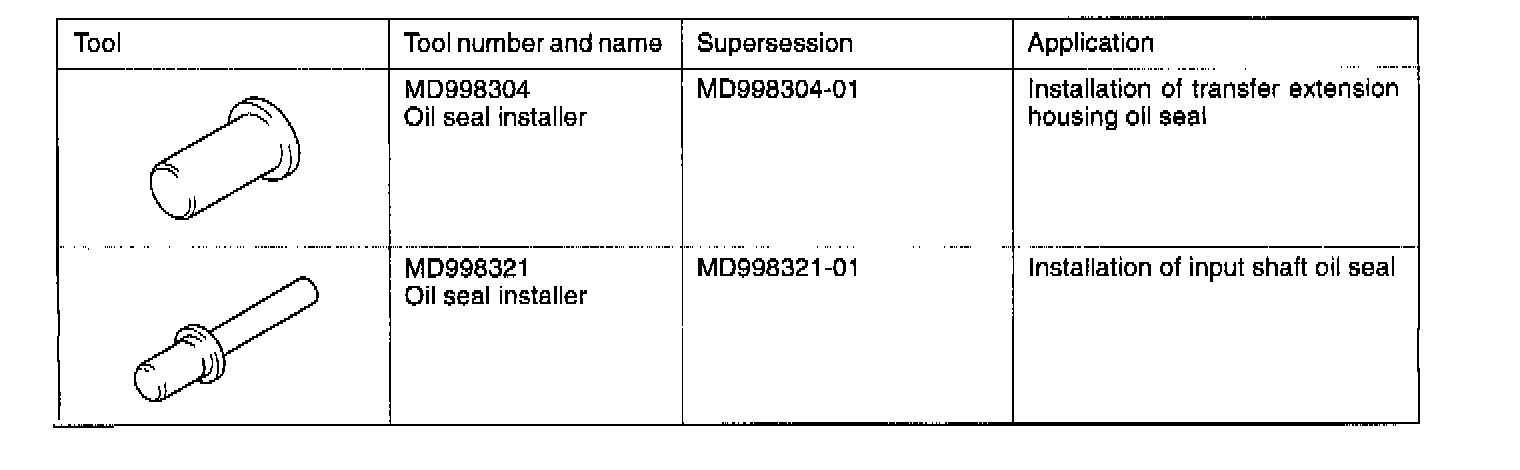

SPECIAL TOOLS PART 3 OF 4

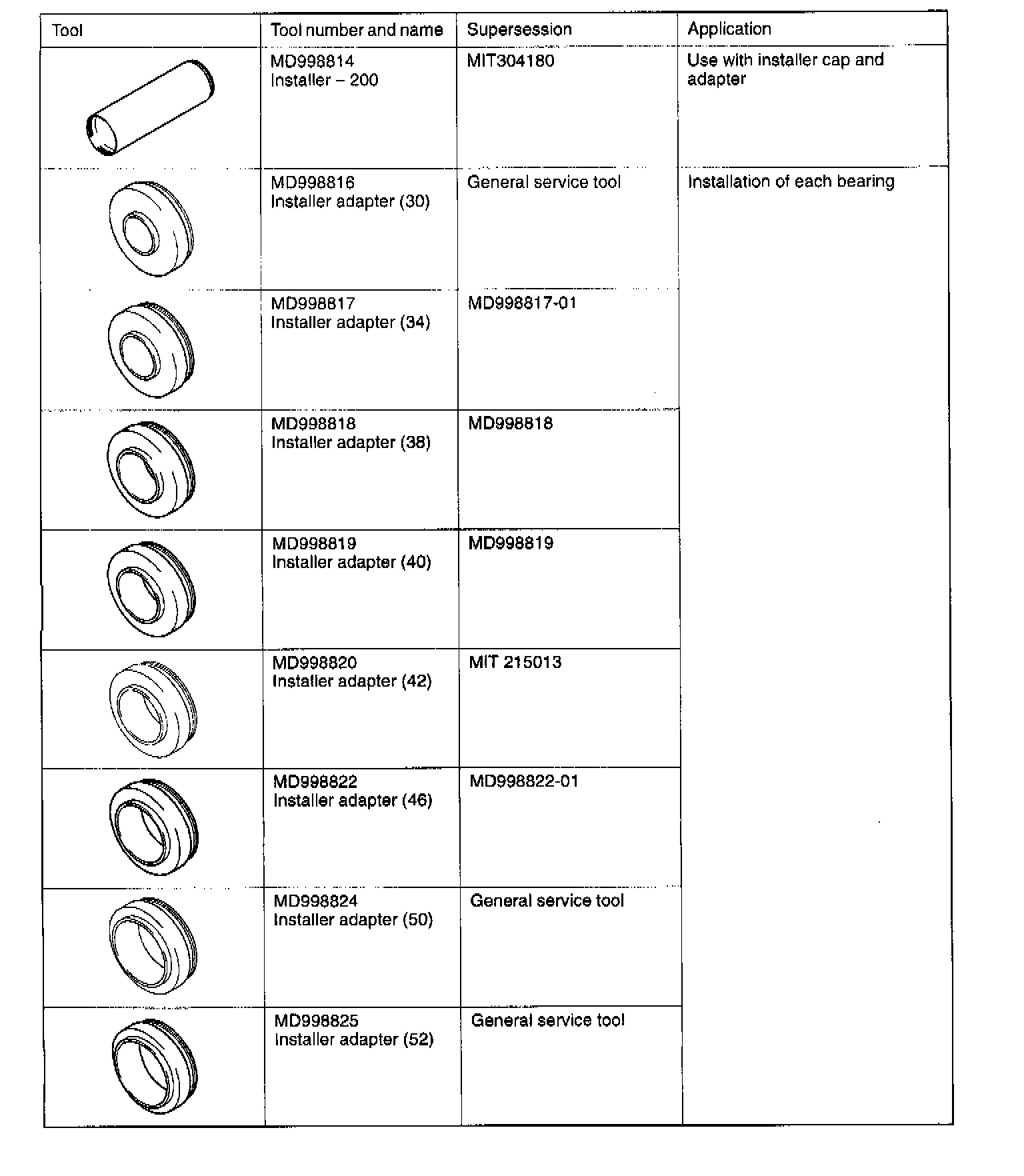

SPECIAL TOOLS PART 4 OF 4
