[X] Wave Spring Installation

>X< Wave Spring Installation

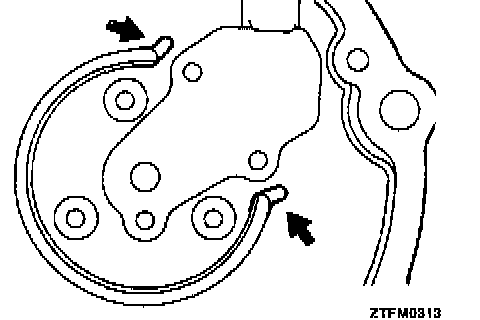

Install the wave spring so that the clasps come to the indicated position in the illustration.
