[U] Transaxle Case Adapter Assembly Installation

>U< Transaxle Case Adapter Assembly Installation

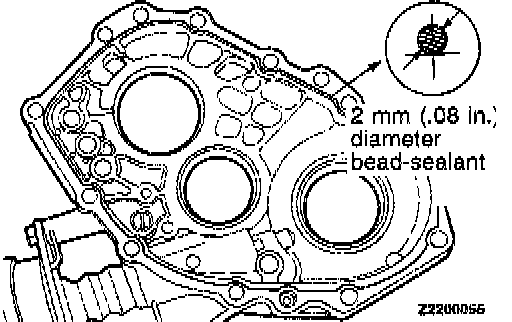

Apply the specified sealant (liquid gasket) to the transaxle case side of the transaxle case adapter assembly.

Specified sealant: Mitsubishi genuine sealant Part No.MD997740 or equivalent

CAUTION: Squeeze out sealant from the tube uniformly without excess or discontinuity.
