[T] Spacers Installation

>T< Spacers Installation

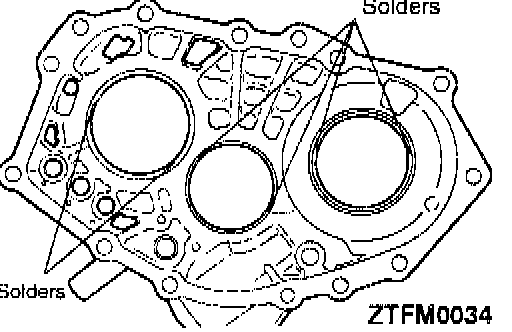

1. Place two pieces of solder measuring about 10 mm (0.39 inch) in length and 3 mm (0.12 inch) in diameter at illustrated locations on the transaxle case adapter assembly and install outer races.
2. Install the transaxle case adapter assembly and rear cover and tighten the bolts to the specified torque.
3. Remove the transaxle case adapter assembly and rear cover.

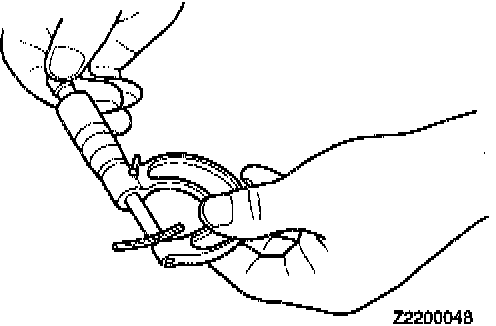

4. Remove outer races and remove the solder. Measure the thickness of the crushed solder with a micrometer, and select and install a spacer of thickness that gives standard end play and preload.

Standard value:
Intermediate gear preload: 0.08 - 0.13 mm (0.0031 - 0.0051 inch)
Center differential case preload: 0.08 - 0.13 mm (0.0031 - 0.0051 inch)
Input shaft end play: 0 - 0.05 mm (0 - 0.0020 inch)
