[R] Oil Seal Installation

>R< Oil Seal Installation

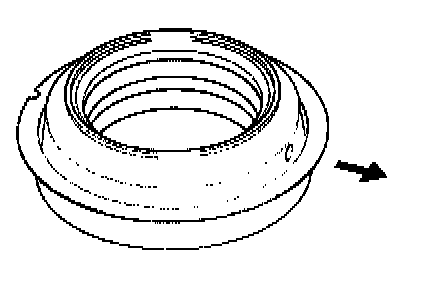

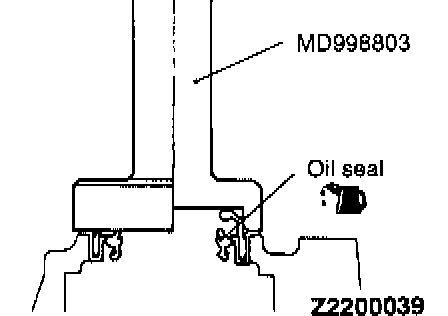

Install the oil seal flange part so that the 3 mm (0.12 inch) hole faces the bottom of the transaxle.

CAUTION: Apply transmission oil to the oil seal lip before installing.
