[L] Lock Nuts For Input Shaft / Intermediate Gear Installation

>L< Lock Nuts For Input Shaft / Intermediate Gear Installation





1. Install the special tool onto the input shaft.
2. Screw a bolt [10 mm (0.39 inch)] into the hole around clutch housing and attach a spinner handle to the special tool.

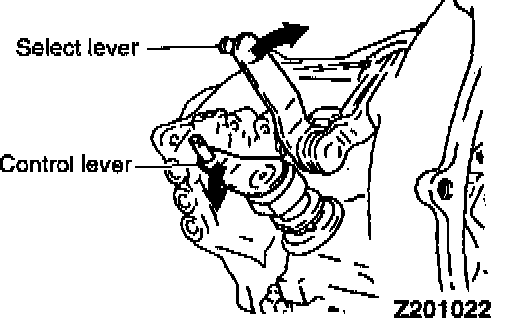

3. Shift the transaxle in reverse using control lever and select lever.
4. Tighten the lock nut to the specified torque, while using the bolt attached in the above step as a spinner handle stopper.





5. Stake the lock nut.
