[K] Reverse Idler Gear Shaft Bolt Installation

>K< Reverse Idler Gear Shaft Bolt Installation

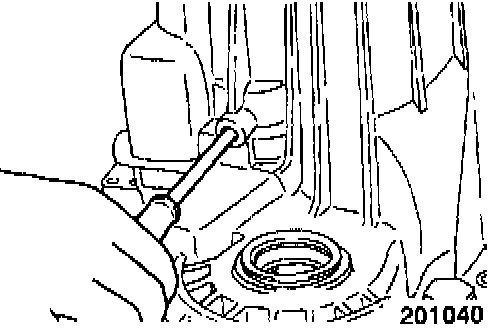

1. Center the shaft with a Phillips screwdriver [shaft diameter 8 mm (0.31 inch)] or the like.
2. Tighten the reverse idler gear shaft bolt to the specified torque.
