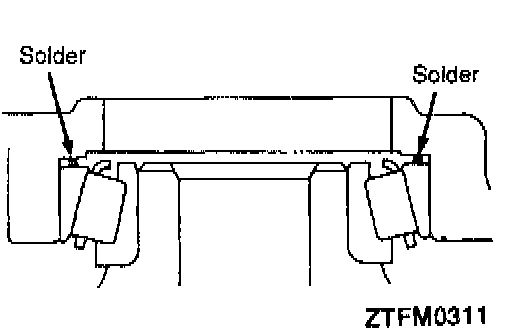

1. Place solder with a length of approximately 10 mm (0.39 inch) and a diameter of approximately 1.6 mm (0.063 inch) in the spacer mounting position.
2. Tighten the case mounting bolt to the specified torque.
3. Remove the case and then take out the solder. If the solder is not broken, use solder with a larger diameter to carry out the operations in (1) and (2).

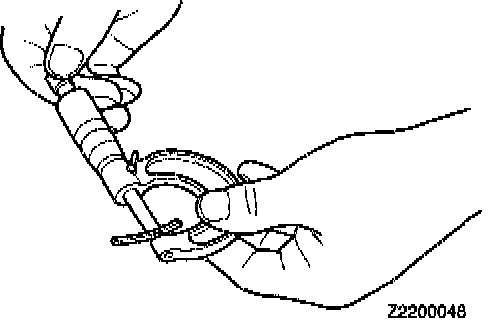

4. Measure the thickness of the crushed solder with a micrometer, and select and install a spacer of thickness that gives standard end play and preload.
Standard value:
Input shaft end play
Intermediate gear preload 0.05 - 0.10 mm (0.0020 - 0.0040 inch)
Output shaft preload 0.05 - 0.10 mm (0.0020 - 0.0040 inch)
Differential case preload 0.05 - 0.10 mm (0.0020 - 0.0040 inch)
