[E] Shift Rail Assembly Installation

>E< Shift Rail Assembly Installation

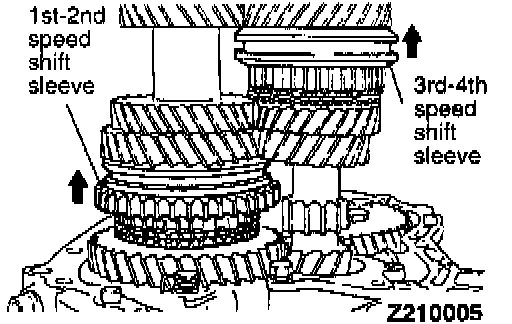

1. Set the 1st-2nd speed shift sleeve at 2nd speed.
2. Set the 3rd-4th speed shift sleeve at 4th speed.
3. Install the shift forks to respective sleeves.

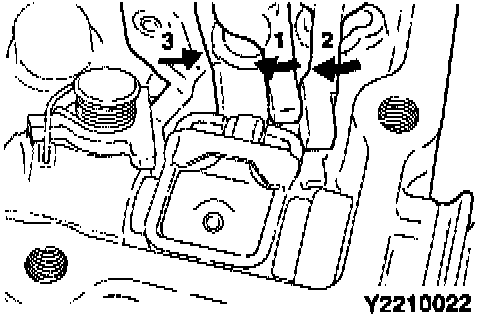

4. Insert the shift rail into the shift fork hole, while turning so as to prevent the shift lug from interfering with the stopper plate.
5. Turn the shift rail to engage shift lug.
