[B] Shift Rail Assembly Removal

Shift Rail Assembly Removal

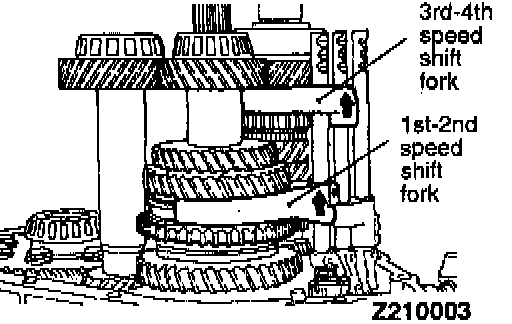

1. Shift the 1st-2nd speed shift fork to the 2nd speed.
2. Shift the 3rd-4th speed shift fork to the 4th speed.





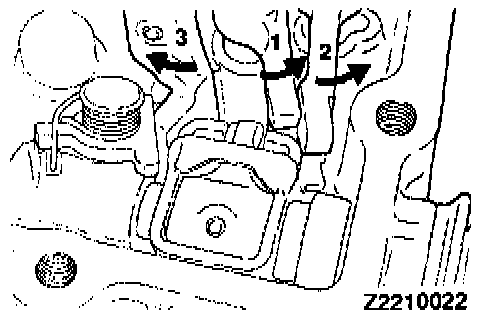

3. Remove the shift rail assembly as shown in the illustration so as not to hit the interlock plate and control finger.
