[A] Lock Nuts For Input Shaft / Intermediate Gear Removal

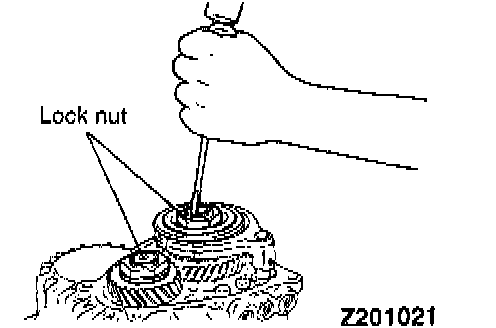

1. Unstake lock nuts of the input shaft and intermediate gear.

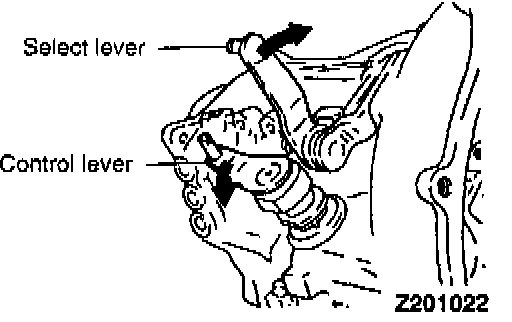

2. Shift the transaxle in reverse using the control lever and select lever.

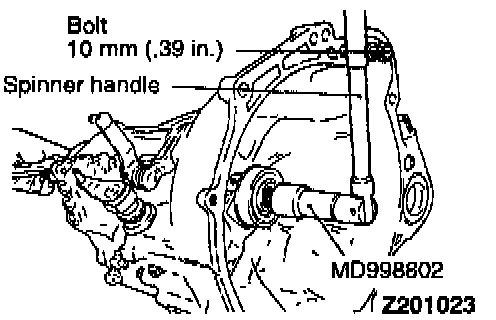

3. Install the special tool onto the input shaft.
4. Screw a bolt [10 mm (0.39 inch)] into the bolt hole around clutch housing and attach a spinner handle to the special tool.
5. Remove the lock nut, while using the bolt as a spinner handle stopper.
