Reassembly Service Point

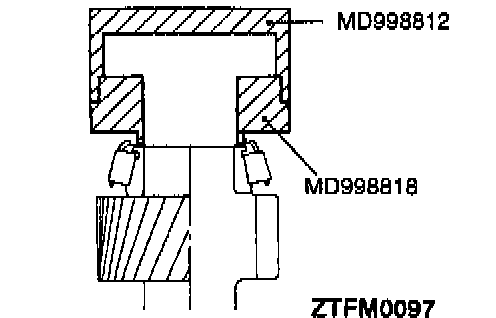

>A< Taper Roller Bearings Installation





CAUTION: When installing the bearing, push the inner race only.
