[G] Snap Ring Installation

>G< Snap Ring Installation

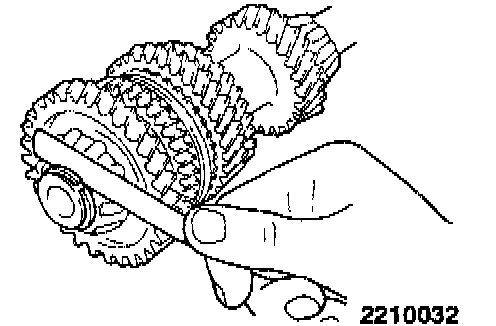

Select and install the snap ring that gives standard intermediate gear bearing end play.

Standard value:
Intermediate gear bearing end play:
0.01 - 0.14 mm (0.0004 - 0.0055 inch)
0.01 - 0.11 mm (0.0004 - 0.0044 inch)
