Eclipse GSX AWD L4-1997cc 2.0L DOHC Turbo MFI
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Manual Transmission/Transaxle
>>
Service and Repair
>>
Overhaul
>>
Intermediate Gear
>>
Reassembly Service Points
>>

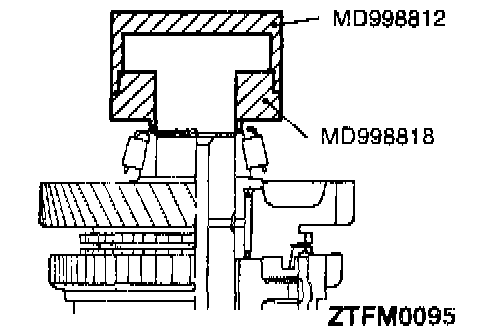

[F] Taper Roller Bearing Installation
[F] Taper Roller Bearing Installation
>F< Taper Roller Bearing Installation
CAUTION:
When installing the bearing, push the inner race only.
