[C] 1st-2nd Speed Sync Hub / Sync Key / 1st-2nd Sync Sleeve

>C< 1st-2nd Speed Synchronizer Hub / Synchronizer Key / 1st-2nd Synchronizer Sleeve Installation





1. Combine the 1st-2nd speed synchronizer hub and sleeve as illustrated.

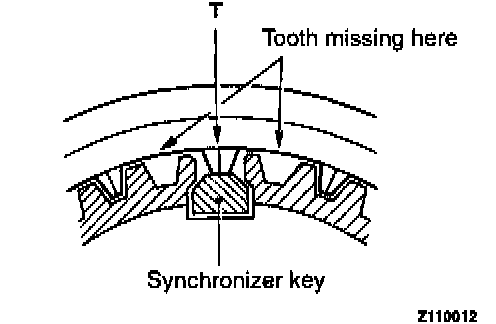

2. The synchronizer sleeve has tooth missing at six portions. Assemble the hub to the sleeve in such a way that the center tooth "T" between two missing teeth will touch the synchronizer key.
