Reassembly Service Points
>>
[B] Synchronizer Rings For 1st Speed Gear, 2nd Speed Gear
[B] Synchronizer Rings For 1st Speed Gear, 2nd Speed Gear
>B< Synchronizer Rings For 1st Speed Gear, 2nd Speed Gear Installation

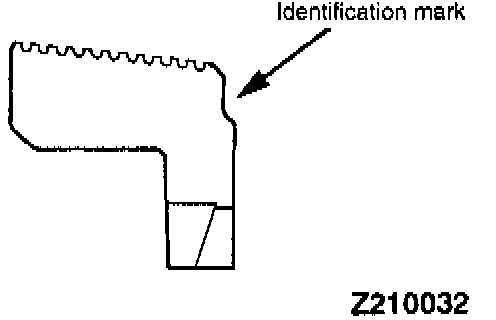

The 1st speed gear and 2nd speed gear of synchronizer rings have an identification mark.
