[H] Bearing Sleeve For 5th Speed Gear Installation

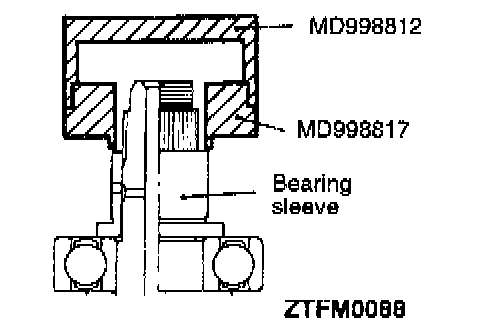

>H< Bearing Sleeve For 5Th Speed Gear Installation





CAUTION: When press-fitting the sleeve to the input shaft, make sure that the sleeve flange is closely fitted to the bearing.
