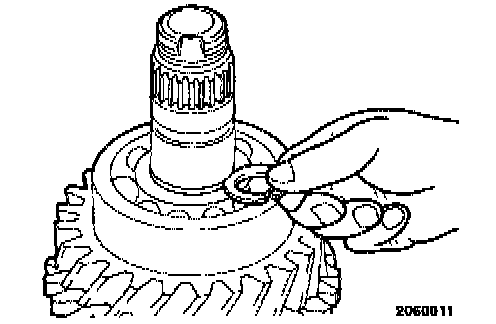

[G] Snap Ring Installation

>G< Snap Ring Installation





Select the thickest snap ring that can be fitted in the snap ring groove.

Standard value:
Input shaft rear bearing end play 0 - 0.09 mm (0 - 0.0035 inch)





CAUTION:
- Do not reuse the snap ring.
- The snap ring may be opened too wide by pliers, resulting in improper installation of the sleeve.
