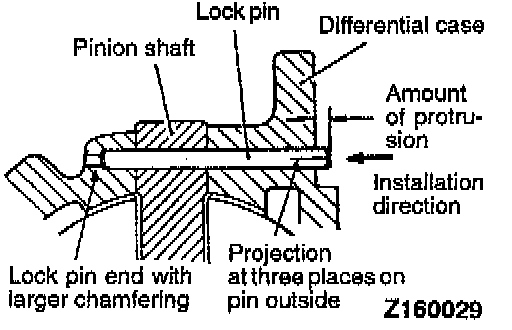

[A] Lock Pin Installation
>A< Lock Pin Installation
Align the pinion shaft lock pin hole with the case lock pin hole and insert the lock pin.
CAUTION:
1. Do not reuse the lock pin.
2. The lock pin must not protrude more than 3 mm (0.12) inch).
Align the pinion shaft lock pin hole with the case lock pin hole and insert the lock pin.
CAUTION:
1. Do not reuse the lock pin.
2. The lock pin must not protrude more than 3 mm (0.12) inch).
