Inspection

Adjustment Of Pinion Backlash

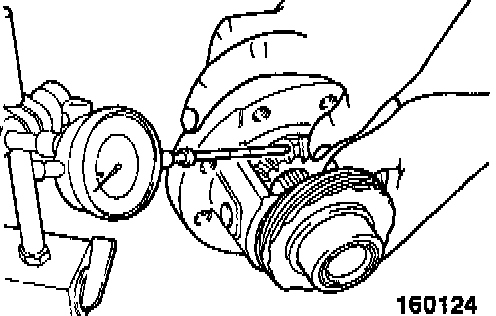

Measure the backlash between the side gears and pinions. Adjust for same backlash of both side gears.

Standard value: 0.025 - 0.150 mm (0.00098 - 0.00591 inch)

If backlash is out of specification, disassemble again and using correct spacer, reassemble and adjust.
