[A] Needle Bearing Installation

>A< Needle Bearing Installation

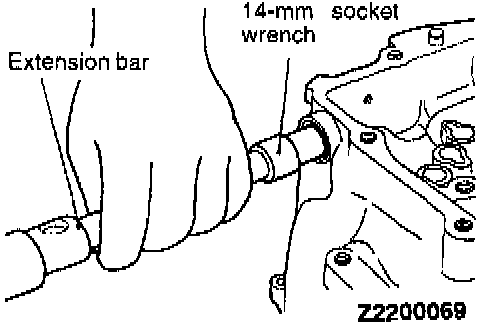

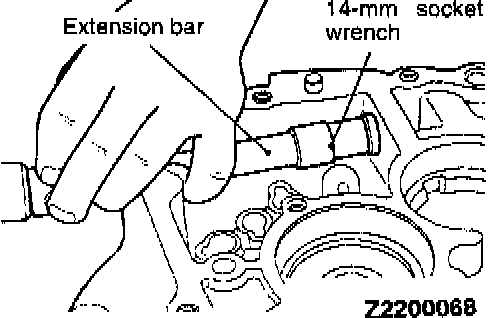

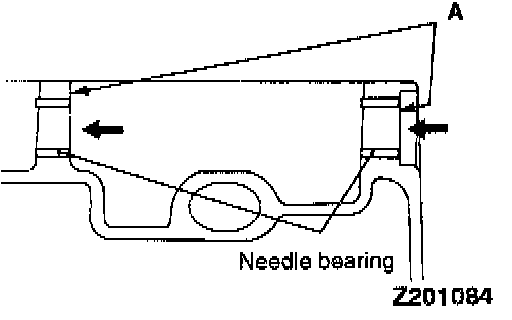

1. Install the needle bearing flush with the surface A of the clutch housing using a socket wrench.
2. Install with the part type stamped side facing the surface A
