[A] Spacers Installation

>A< Spacers Installation

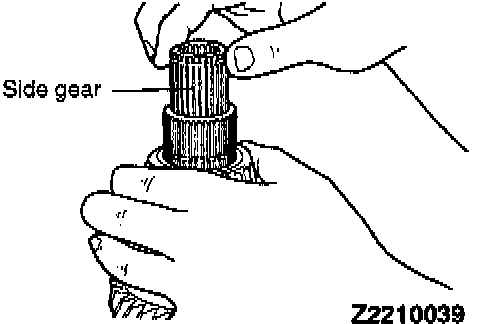

1. Install the spacer, side gear, pinion gear, washer and pinion shaft to the center differential case.
2. Holding down the pinion shaft, select the spacer of maximum thickness that allows the pinion gear to turn lightly and install it to the shaft.
3. Install the side gear, spacer and output gear and tighten the bolt to the specified torque.
4. Select the spacer of maximum thickness that allows the side gear to turn lightly and install it.
5. Check that both side gears turn lightly.

Standard value:
Center differential side gear end play: 0.05 - 0.25 mm (0.0020 - 0.0010 inch)
