[B] Synchronizer Spring Installation

>B< Synchronizer Spring Installation

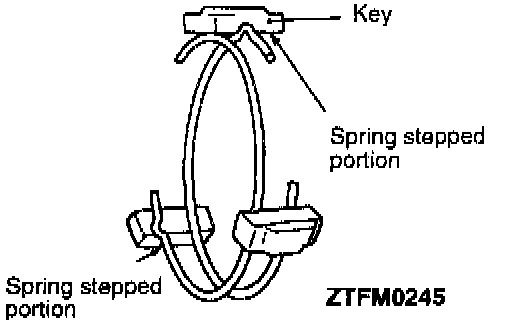

When installing the synchronizer springs, be sure to position each spring with respect to the keys as illustrated.
