Rear Axle

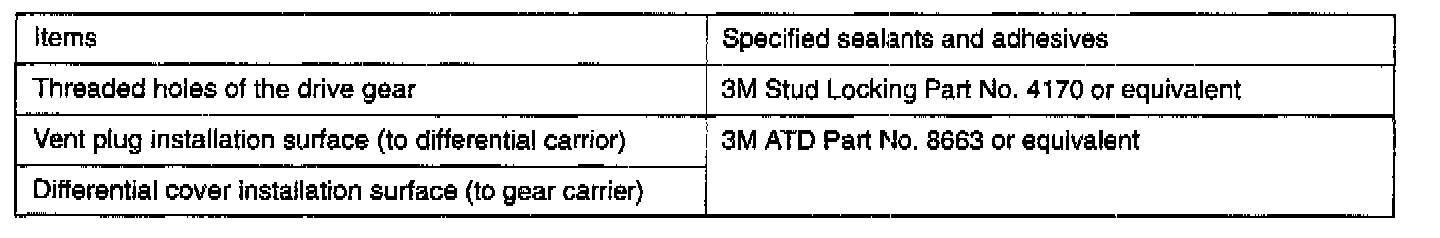

SEALANTS AND ADHESIVES

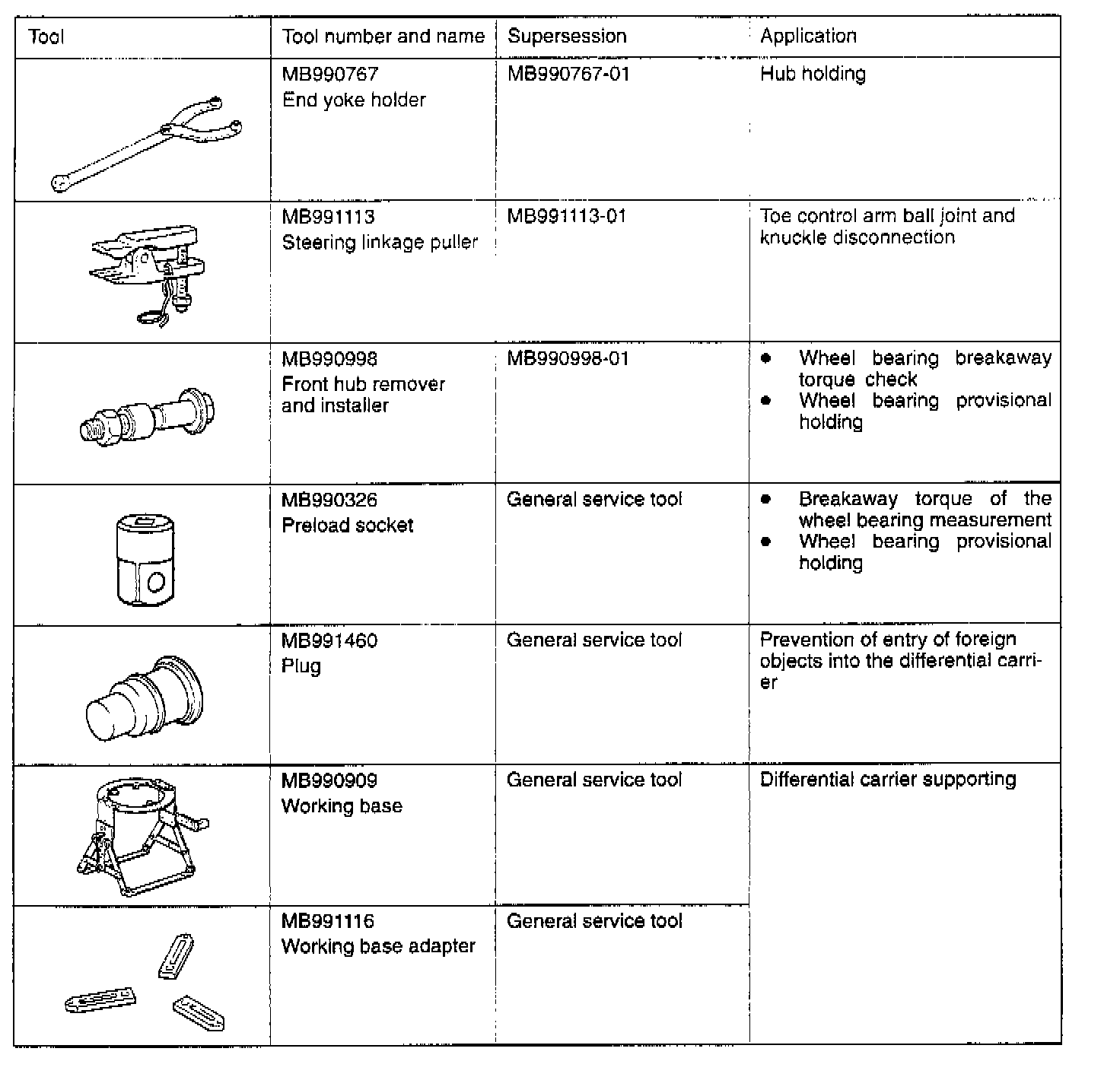

SPECIAL TOOLS PART 1 OF 3

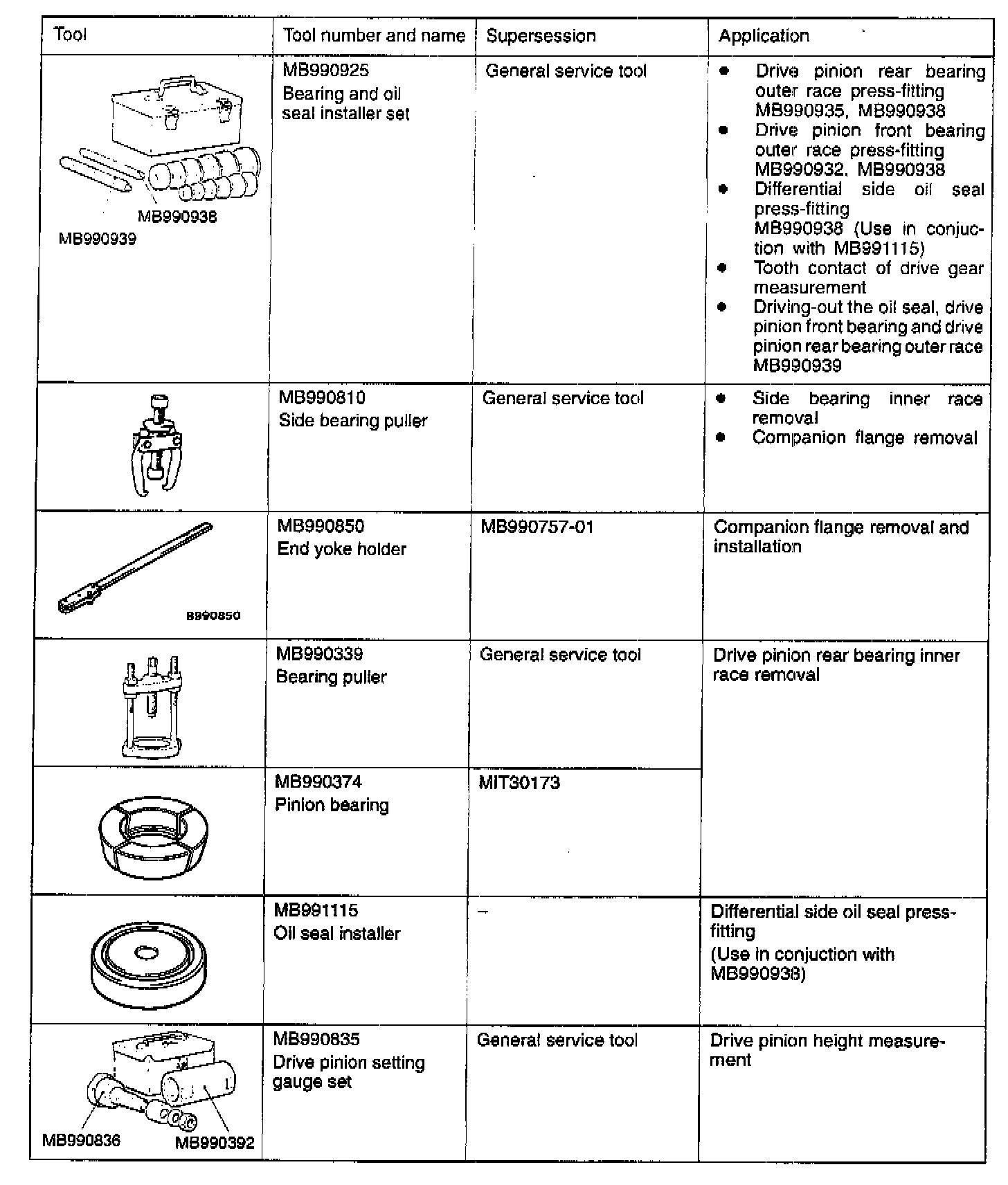

SPECIAL TOOLS PART 2 OF 3

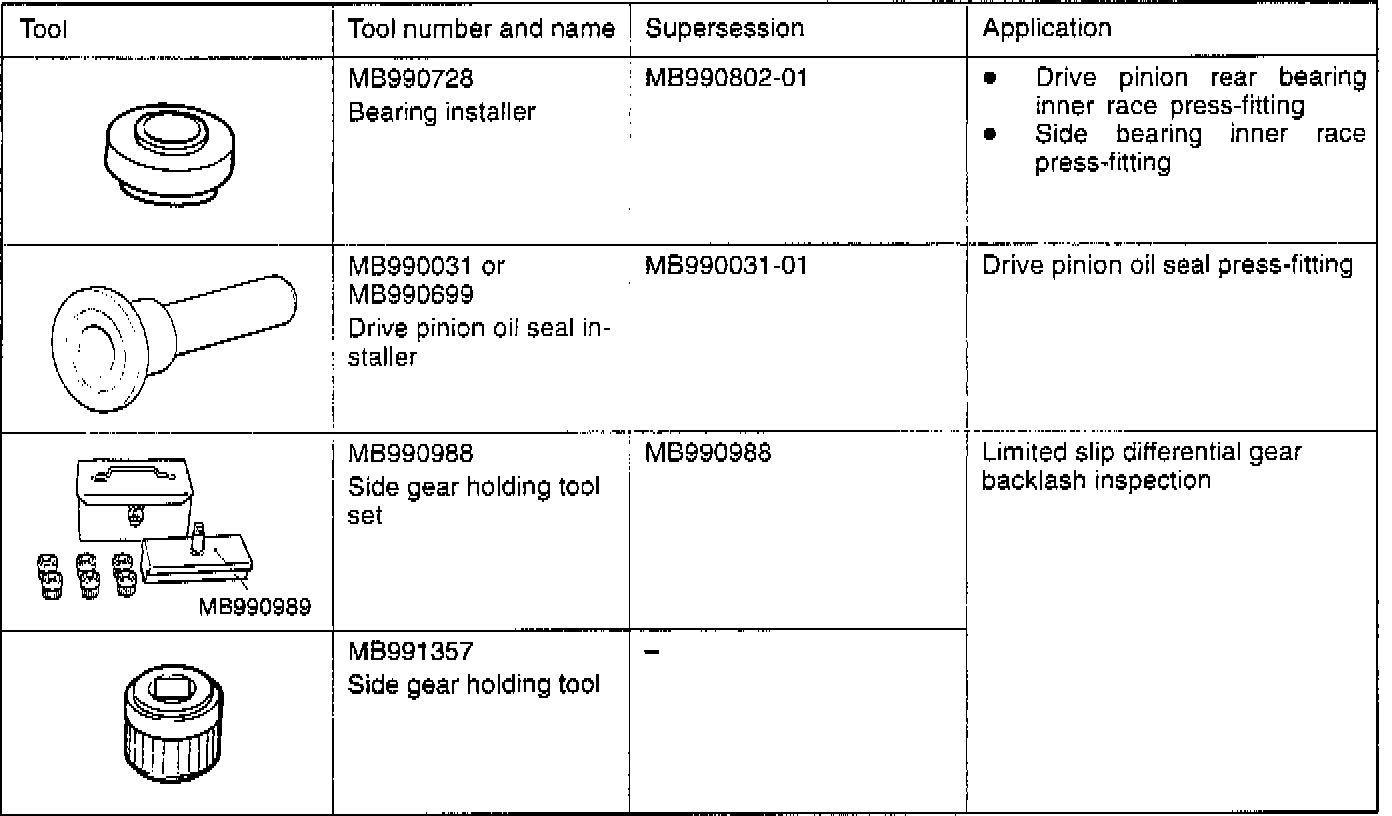

SPECIAL TOOLS PART 3 OF 3
